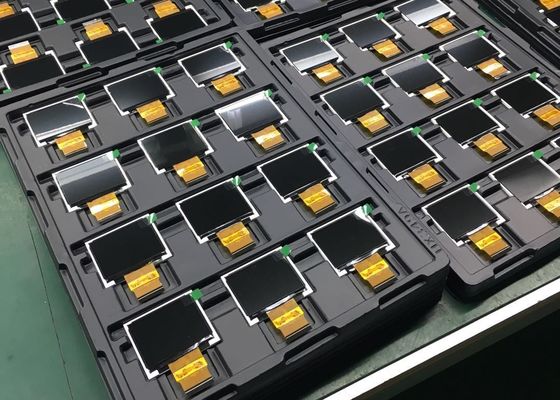

2.31'' 320*240 SPI Interface TFT LCD Screen with ILI9342C driver IC
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS, ROHS |
| Model Number: | RYT0231NDW01-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union, T/T, MoneyGram |
| Supply Ability: | 10k/Month |
|
Detail Information |
|||
| Display Type: | TFT LCD | Size: | 2.31inch |
|---|---|---|---|
| Resolution: | 320 X 3(RGB) X 240 | Interface: | SPI |
| Display Mode: | Normally White/Transmissive | Driver IC: | ILI9342C |
| Viewing Angle: | 12 O'clock | Outline Size (mm): | 55(W) X 17.55 (H) X 2.80 (D) |
| Active Area(mm): | 46.75(H) X 35 (V) | Application: | Industrial Application,Multi-Touch Query Machine,Desktop Monitor |
| Warranty: | One Year | ||
| Highlight: | COB Positive LCD Module FSTN,STN YG Character Lcd Display,Stn Monochrome Character LCD Display |
||
Product Description
2.31'' 320*240 SPI Interface TFT LCD Screen with ILI9342C driver IC
2.31-inch TFT Display | RYT0231NDW01-01
Module size: 55(W) x 17.55 (H) x 2.80 (D)
240 x RGB x 320 Dots
Driver: ILI9342C
SPI Interface 2chips white LED, All viewing angle, Normally Black Transmissive, RoHS Compliant
| Item | Description |
| Product Name | 2.31'' 320*240 TFT LCD Module |
| Model No. | RYT0231NDW01-01 |
| Dot Format | 320RGB(H)x240(V) |
| Outline (mm) | 55(W) x 17.55 (H) x 2.80 (D) |
| Active Area(mm) | 46.75(H) x 35 (V) |
| Display Mode | Normally white/Transmissive |
| Interface | SPI |
| Driver IC | ILI9342C |
| Viewing Direction | 12 o'clock |
| Brightness | 230 cd/m2 |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
QUESTION YOU MAY ASK
Q1. How can I trust your product quality?
A:
--Our Raw materials are all ROHS compliant .
--Display is an ISO9001:2008 and ISO9001:2015 Certified company, we've been adhering to the ISO standards strictly in our production.
--Our products are 100% Visual and Function test before shipments.
Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.
Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…
--Our experience and proficiency make the qualification rate always being 99.7% or above.
Q2. Which sizes of LCDs and Touch Panels do you provide?
A:
--Small sizes which include: 0.96", 1.22", 1.3", 1.44", 1.54", 1.77", 2.0", 2.4", 2.7", 2.8", 3.0", 3.2", 3.5", 3.95", 3.97", 4.3", 5", 5.6", 6.86".
--Middle sizes which include: 7", 8", 9", 10.1", 10.2", 13.3",14.1",15.6",17",21.5",23
