Product Details:
Payment & Shipping Terms:
|
| Display Type: | TFT LCD | Sizwe: | 2.4inch |
|---|---|---|---|
| Resolution: | 320 X 3(RGB) X 240 | Interface: | SPI |
| Viewing Angle: | 12 O'clock | Outline Size (mm): | 42.72(W) X 60.26 (H) X2.5(D) |
| Active Area(mm): | 36.72(H) X49.96 (V) | Display Mode: | Normally White/Transmissive |
| Display Color: | 262K | Driver IC: | ST7789V2-G4 |
| Application: | Industrial Application,Multi-Touch Query Machine,Desktop Monitor | Warranty: | One Year |
| High Light: | COB Positive LCD Module FSTN,STN YG Character Lcd Display,Stn Monochrome Character LCD Display |
||

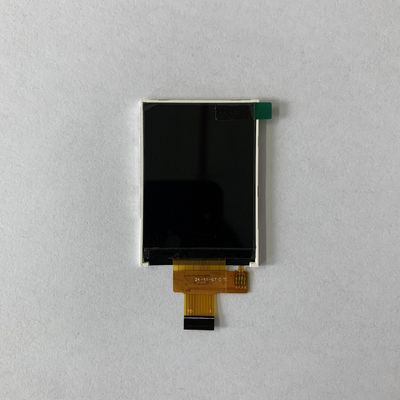

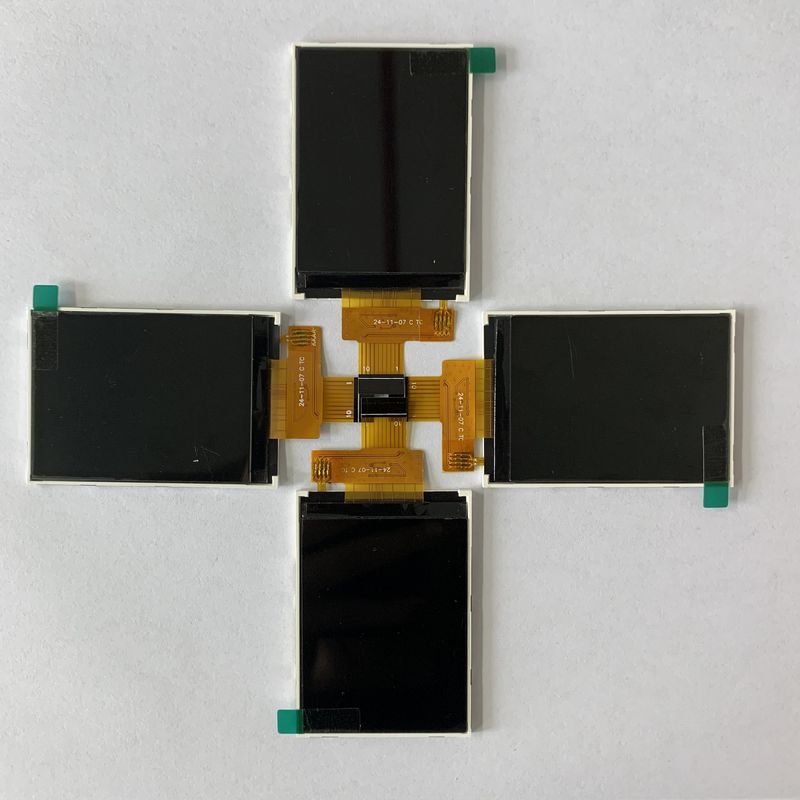

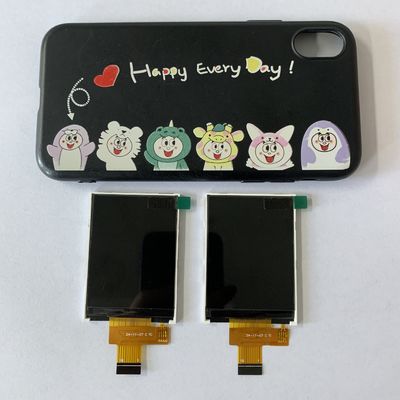

2.4-inch TFT Display | RYTQ24SN11-07
Module size: 42.72 x 60.26 x 3.30 mm
240 x RGB x 320 Dots
Driver: ST7789V
SPI Interface 4chips white LED All viewing angle, Wide temp, Transmissive - Normally Black, RoHS Compliant
The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD display
| Item | Description |
| Product Name | 2.4'' 320*240 TFT LCD Module |
| Model No. | RYTQ24SN11-07 |
| Dot Format | 320RGB(H)x240(V) |
| Outline (mm) | 42.72(W) X 60.26 (H) X2.5(D) |
| Active Area(mm) | 36.72(H) X49.96 (V) |
| Display Mode | Normally white/Transmissive |
| Operating Voltage | 2.8V |
| Interface Type | SPI Interface |
| Driver IC | ST7789V2-G4 |
| Viewing Direction | 12 o'clock |
| Brightness | 230 cd/m2 |
| Operating Temp | -10º C~60ºC |
| Storage Temp | -20º C~70ºC |
| Pin No. | 10pins |
MAIN APPLICATION
| Telecommunication Devices | Telephone, Interphone, watch, radio, etc. |
| Home Appliances | Washing Machine, Refrigerator, Home Integrator etc |
| Industrial Control | Homotaxial Numerically-controlled machine tool |
| Instrument and Apparatus | Tester, Medical instruments |
| Vehical-mounted Digital | MP3, MP4 and vehical-mounted air conditioner |
| Mining | Mine's lamp charger, gas tester |
| Marine | Salinity tester |
According to customers' various requests,TFT lcd, lcd panel, lcd monitor, lcd screen, FSTN and STN lcd display, industrial lcd, we can match all accessories which inclusive of driver board,LED backlight & LVDS cables.
ODM/OEM accetable
Various LCD Display Mode with different backlight color and temperature range available
