Display Type: | TFT LCD | Resolution: | 320 X 3(RGB) X 240 |
---|---|---|---|
Display Mode: | Normally White/Transmissive | Viewing Angle: | 12 O'clock |
Interface: | SPI | Outline Size (mm): | 42.72(W) X 60.26 (H) X2.5(D) |
Active Area(mm): | 36.72(H) X49.96 (V) | Display Color: | 262K |
Driver IC: | ST7789 | Application: | Industrial Application,Multi-Touch Query Machine,Desktop Monitor |
Warranty: | One Year | ||
Highlight: | COB Positive LCD Module FSTN,STN YG Character Lcd Display,Stn Monochrome Character LCD Display |

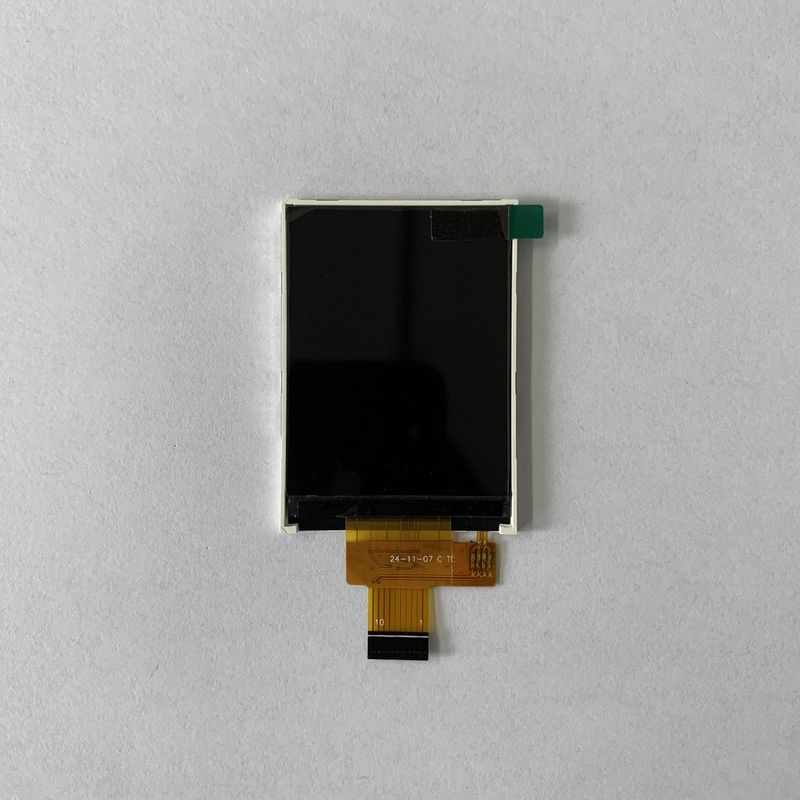

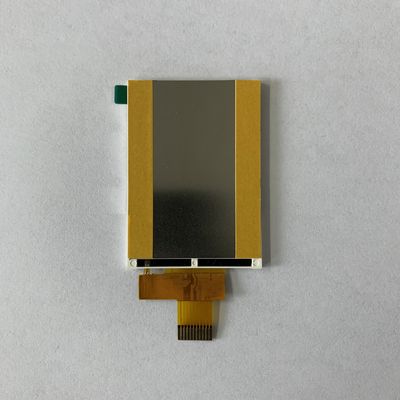

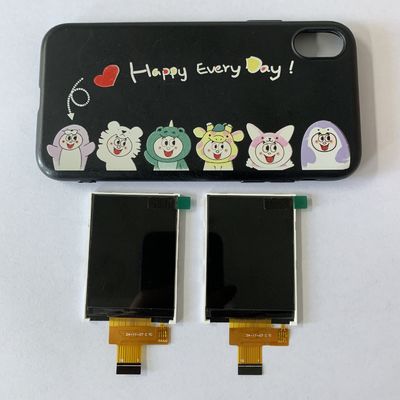

2.4-inch TFT Display | RYTQ24SN11-07
Module size: 42.72 x 60.26 x 3.30 mm
240 x RGB x 320 Dots
Driver: ST7789V
4chips white LED All viewing angle, Wide temp, Transmissive - Normally Black, RoHS Compliant
The Resistive touch panel senses a touch by measuring where contact is made on the glass. It is independent of temperature and humidity and simple to integrate independent of a separate controller chip.
The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD display
Item | Description |
Product Name | 2.4'' 320*240 TFT LCD Module |
Model No. | RYTQ24SN11-07 |
Dot Format | 320RGB(H)x240(V) |
Outline (mm) | 42.72(W) X 60.26 (H) X2.5(D) |
Active Area(mm) | 36.72(H) X49.96 (V) |
Display Mode | Normally white/Transmissive |
Operating Voltage | 2.8V |
Interface Type | SPI Interface |
Driver IC | ST7789V2-G4 |
Viewing Direction | 12 o'clock |
Brightness | 230 cd/m2 |
Operating Temp | -10º C~60ºC |
Storage Temp | -20º C~70ºC |
Pin No. | 10pins |
ABOUT TFT LCD DISPLAY
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
Features
Customizable FPC cables, LED backlights, and bezels
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available
Broad selection of off the shelf products
Sunlight readable options available
