Product Details:
Payment & Shipping Terms:
|
| Display Type LED: | TFT | Resolution: | 480X3(RGB)X272 |
|---|---|---|---|
| Module Size(mm): | 105.5 X 67.2 X 4.05 | Active Area(mm): | 95.04 X 53.856 |
| Display Mode: | Normally White, Transmissive | Interface: | 40 Pin FPC, Parallel 24bit RGB |
| High Light: | 4.3 Inch Innolux LCD Panel,480X272 Innolux LCD Panel,FPC Automobile LCD Panel |
||

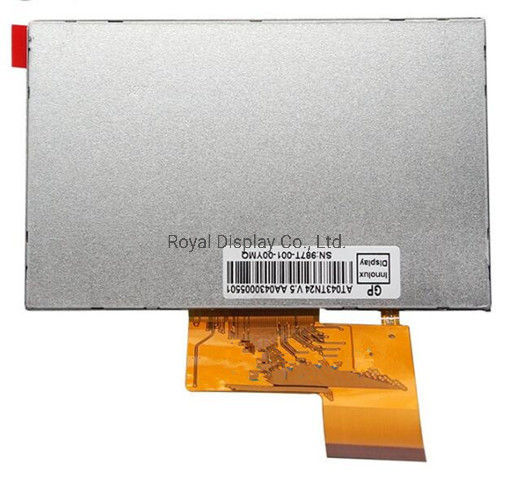

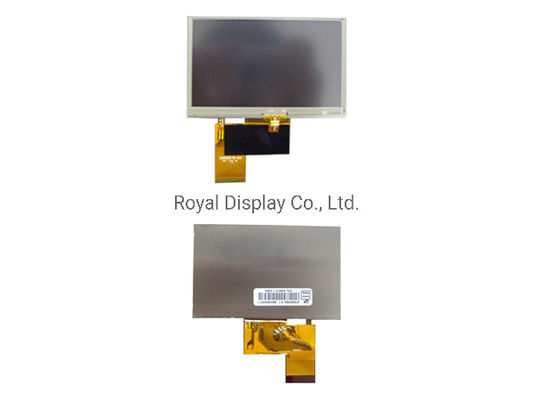

Specification Of TFT LCD Module

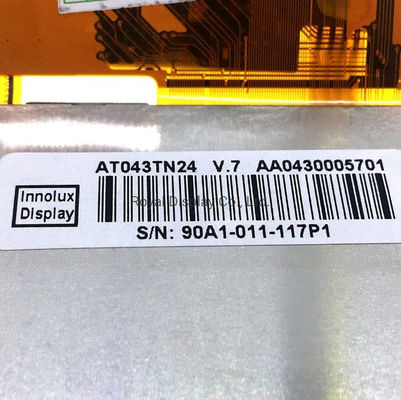

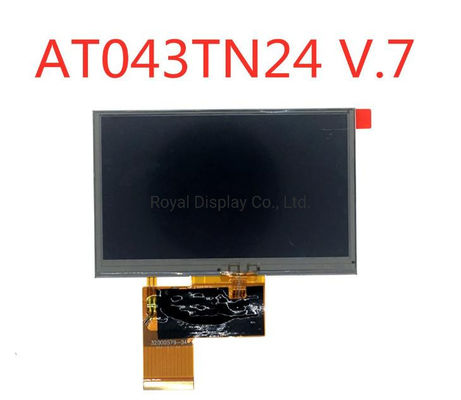

| Display Name: | AT043TN24 V.7 |
| Touch Panel: | Yes |
| Screen Size: | 4.3" |
| Aspect Ratio: | 16:9 |
| Display Mode: | Transmissive |
| Resolution: | 480X3(RGB)X272 |
| PPI ( Pixel per inch ): | 128 |
| Module/Panel Size(mm): | 105.5 x 67.2 x 4.05 |
| Active Area(mm): | 95.04 x 53.856 |
| Dot Pitch(mm): | 0.066(W) X 0.198(H) |
| Surface Treatment: | Anti-Glare |
| Viewing Angle (Tpy.)θT/θB/θL/θR: | 50/70/70/70 |
| Viewing direction: | 6 O'Clock |
| NTSC: | 50% |
| Luminance(nits): | 400 |
| Contrast Ratio: | 500 |
| Response Time(ms): | 25 |
| Consumption (W)- Panel: | 0.056 |
| Consumption (W)- Backlit: | 0.558 |
| Panel Weight (g): | 58.0 |

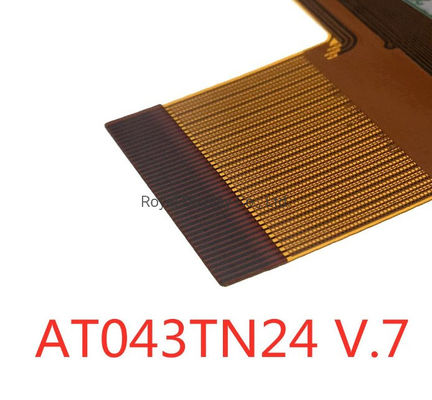

| Interface: | 40pin FPC,Parallel 24bit RGB |
| Operation Temperature( ºC): | -20~70 |
| Storage Temperature (ºC): | -30~80 |
| Lamp type: | White LED backlight display |
Feature Of TFT LCD Module
Our Service Advantage
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2%-0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
6. Got many good reviews from our customers.
Accessories
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
TFT Lcd Display FAQ:
Q1: Are you a factory or trading company?
----- We are a factory, Our company mainly sells TFT LCD display Module
Q2: Do you accept sample order?
------ Yes, we can accept sample order.
Q3: What's your warranty policy?
----- We offer 2 year warranty. For goods defected not by personal seasons, we will replace for it.
Q4: What's your payment terms?
------ We accept T/T in advance, paypal, or alibaba trade assurance.
Q5: What's the lead time for mass order?
------ Normally, it takes about 20-35 days, depends on the order quantity.
