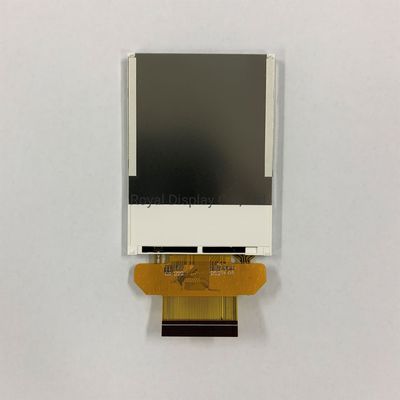

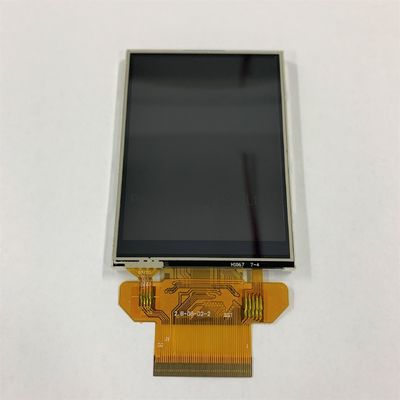

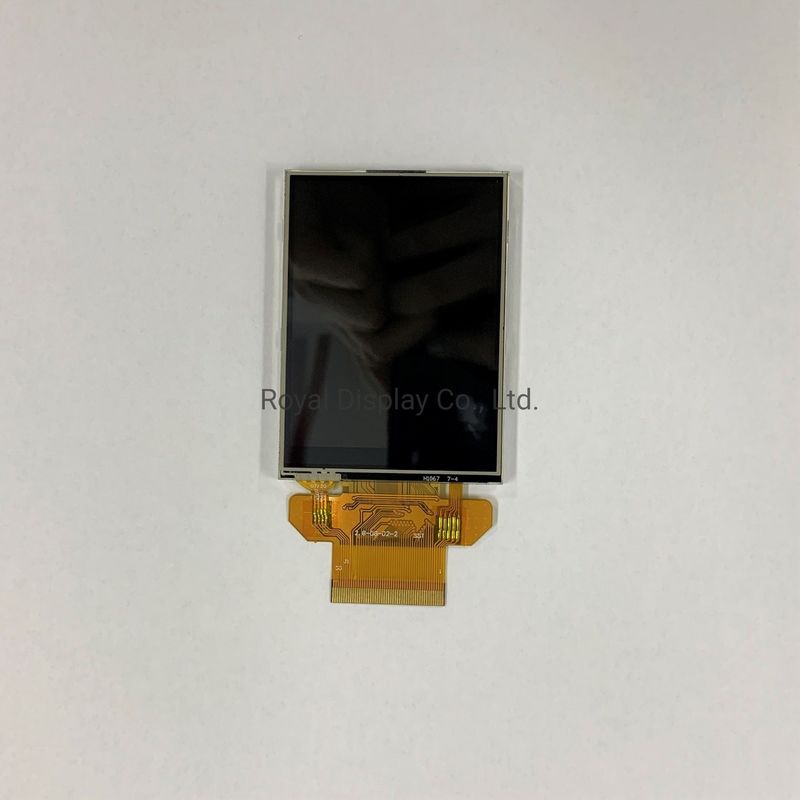

320XRGBX240 dots IPS 2.8 Inch CTP TFT LCD Module Touch Panel For Elevators
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | RYTPQ28NN08-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| Product Type: | TFT LCM | Resolution: | 320X3(RGB)X240 |
|---|---|---|---|
| Module Size(mm): | 50.2(W)X69.3(H)X4.9(D) | Active Area(mm): | 43.2(H) X57.6 (V) |
| Outline Dimensio: | 50.2(W) X 69.3 (H) X 4.0 (D) | Pixel Arrangement: | RGB-Veritical Stripe |
| Tp: | 8-Wire CTP | Drive IC: | Ili9341V |
| Highlight: | 2.8 Inch TFT LCD Module,Elevators TFT LCD Module,320X240 LCD Touch Screen Display |
||
Product Description
2.8 Inch TFT Display | RYTPQ28NN08-02
Module size: 50.2(W)x69.3(H)x4.9(D)
Driver: ILI9341V
LVDS, White LED backlight, IPS, Wide temp, Transmissive, Capacitive Touch Screen, HDMI connection, CTP Driver: ILI9341V RoHS Compliant
1. IPS or 12 o'clock display screen.
2. Customized :Logo,Touch Button,Silk-Printing,Mirror Cover Lens,Shape/Hole
3. Anti-Glare/Anti-Finger/ Anti-Reflective/Waterproof/Gloves Touch Available
4. Supply TFT/Touch Panel/touch display module(TFT+CTP)
OUR SERVICE ADVANTAGES
1.LCD&LCM Display: Design, Manufacturing LCD&LCM (TN, STN, CSTN, TFT); OEM Service for COG, TAB & COB LCD Modules.
2.Guarantee: In order to ensure our products' quality, each process has been aranged QC. And there are many advanced machines introduced to check the products quality. The goods will have a ramdom test before delivery. One year for warranty under normal use.
ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
WARRANTY
FAQ
Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly raw materials,semi-finished and a small amount of finished products.After payment, Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch deliverytakes 5-6 weeks
Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q:How long is the warranty and service of the product?
A:Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
