3.5'' SPI 320x240dots TFT LCD Display Capacitive Transmissive Touch Panel With White LED

3.5'' SPI 320x240dots TFT LCD Display Capacitive Transmissive Touch Panel With White LED

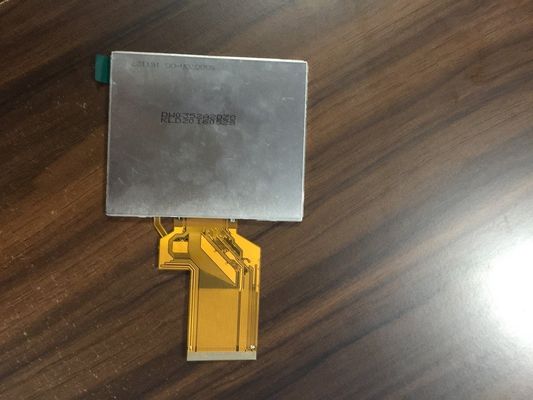

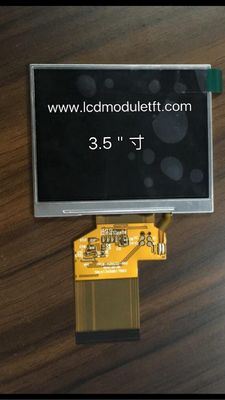

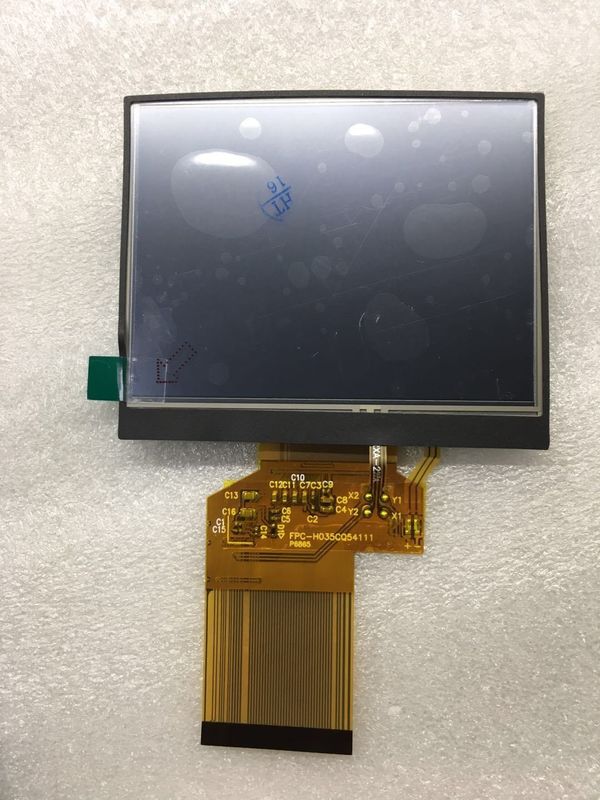

3.5'' SPI 320x240dots TFT LCD Display Capacitive Transmissive Touch Panel With White LED 3.5'' SPI 320x240dots TFT LCD Display Capacitive Transmissive Touch Panel With White LED 3.5'' SPI 320x240dots TFT LCD Display Capacitive Transmissive Touch Panel With White LED

Large Image :  3.5'' SPI 320x240dots TFT LCD Display Capacitive Transmissive Touch Panel With White LED

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYT0350RDW01
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: Western Union, MoneyGram, L/C, D/A
Supply Ability: 300K/M
Detailed Product Description
Product Type: TFT LCD    Display Type: TFT LCD
Outline (mm): 76.84*63.84 Tp Viewing Area(mm): 71.08*53.79
LCD Viewing Area(mm): 70.08*52.56 LCD Type: Transmissive
Driver IC: Hx8238d Backlight: 6chip-White LED
 Certificate: Ce, RoHS, SGS Operating Temp.: -20°C~+70°C
   Storage Temp.: -30°C~+80°C
High Light:

Transmissive TFT LCD Display

,

SPI TFT LCD Display

,

320x240 Capacitive Touch Panel

3.5``TFT LCD Display Screen Resolution 320*240high Brightness with Capacitive Touch Panel

PRODUCT DESCRIPTION

Item Description
Product Name 3.5inch TFT LCD
Model No. RYT0350RDW01
Dot Format 320*240
Outline (mm) 76.84*63.84
TP Viewing Area(mm) 71.08*53.79
LCD Viewing Area(mm) 70.08*52.56
LCD Type Transmissive
Backlight 6chip-white LED
Driver IC HX8238D
Interface SPI
Operating Temp -30º C~70ºC
Storage Temp -30º C~80ºC







FUTURES

- Touch Panel

Resistive touch panel and capacitive touch panel can be optional.



-TFT LCD screens have no electromagnetic radiation.



-TFT LCD screens digital interface.



-TFT LCD screens "figure" symmetrical and small.





LCD MANUFACTURING PREOCESS



3.5'' SPI 320x240dots TFT LCD Display Capacitive Transmissive Touch Panel With White LED 0





3.5'' SPI 320x240dots TFT LCD Display Capacitive Transmissive Touch Panel With White LED 1

3.5'' SPI 320x240dots TFT LCD Display Capacitive Transmissive Touch Panel With White LED 2








ACCESSORIES

Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!



3.5'' SPI 320x240dots TFT LCD Display Capacitive Transmissive Touch Panel With White LED 3
