Innolux5 Inches 640x480 RGB 50 Pin FPC LCM TFT LCD Module IParallel 24bit RGB Display
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | ZJ050NA-08C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| Product Type: | TFT LCM | Resolution: | 640X3(RGB)X480 |
|---|---|---|---|
| Module Size(mm): | 117.65 X 88.43 X 5.7 | Active Area(mm): | 101.57X76.18 |
| Viewing Angle: | 50/70/70/70 | Interface: | 50 Pin FPC, Parallel 24bit RGB |
| Highlight: | LCM TFT LCD Module,640x480 TFT LCD Module,50 Pin FPC Lcd Monitor Module |
||
Product Description

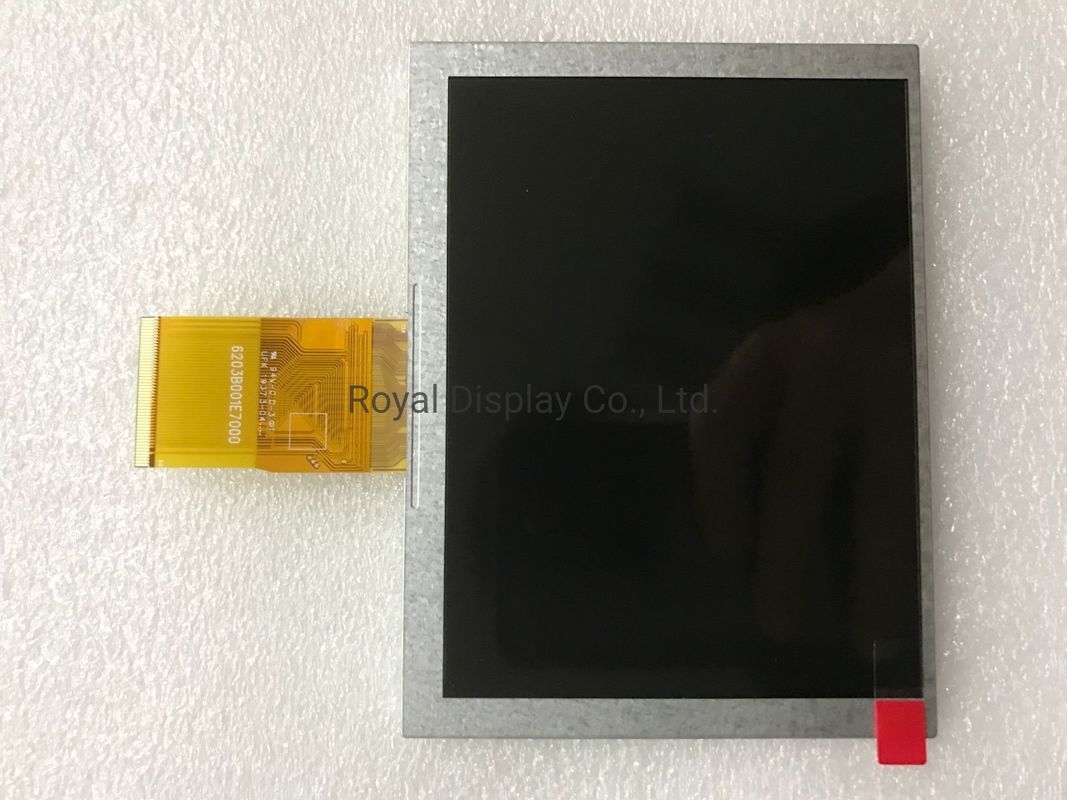

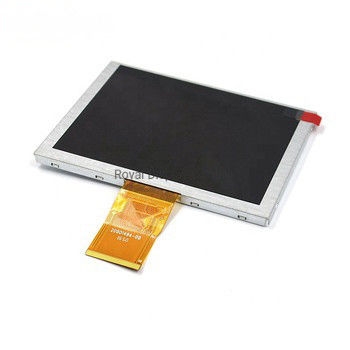

INNOLUX 5 inch 640*480 TFT LCD Display ZJ050NA-08C Normally white Transmissive
Innolux's employees worldwide number more than 60,000, and its production sites and sales locations span the global.
With its major TFT plants located in Zhunan and Tainan, both in Taiwan, Innolux has also established overseas
module plants in the Chinese cities of Ningbo, Nanjing, Foshan, and Shanghai. Innolux's extensive global presence allows it to quickly provide a full range of services to its customers, reducing logistics and manpower costs, while achieving the environmental objectives of energy conservation and reduced carbon emissions. Innolux's unique intelligent management platform has not only enhanced the company's management capabilities, but also provides customers with prompt, accurate delivery information.
This is just one of the ways we are constantly striving to boost customer satisfaction.
Product Description
| Item | Description |
| Model Name | ZJ050NA-08C |
| Product type | TFT LCD Module |
| Screen Size | 5.0" |
| Aspect Ratio | 4:3 |
| Resolution | 640X3(RGB)X480 |
| Module Size(mm) | 117.65 x 88.43 x 5.7 |
| Active Area(mm) | 101.57X76.18 |
| Viewing Angle (Tpy.)θT/θB/θL/θR | 50/70/70/70 |
| Luminance(nits) | 250 |
| Contrast Ratio | 500 |
| Response Time(ms) | 25 |
| Weight (g) | TBD |
| Interface | 50pin FPC,Parallel 24bit RGB |
| Operation Temperature( ºC) | -20º C~70ºC |
| Storage Temperature (ºC) | -30º C~80ºC |
| HTHH.(op) | 40ºC 90%RH 240h |
Product Details
TFT Display
Product Process
LCD professional manufacturer ROYAL DISPLAY with over 10 years experience in led field,
we do believe we can become your reliable supplier!
