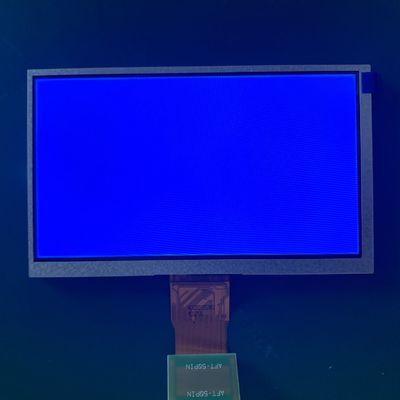

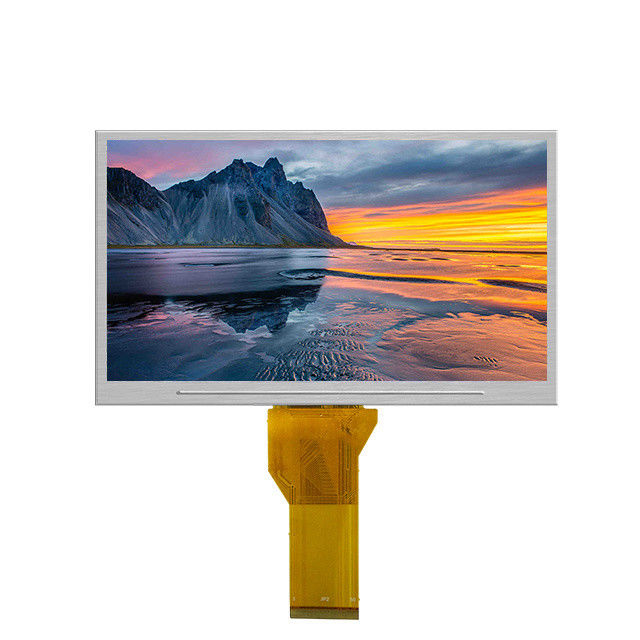

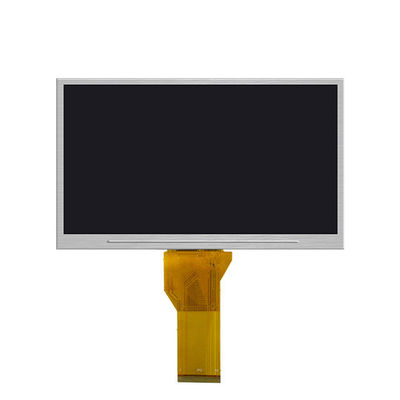

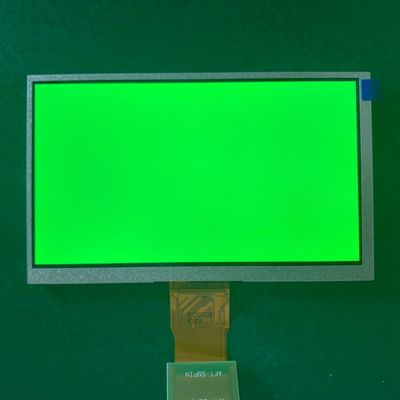

7" LVDS 1.90W LCD Monitor Module LED Backlight 500cd/M2

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  7" LVDS 1.90W LCD Monitor Module LED Backlight 500cd/M2

Product Details:
Place of Origin: China
Certification: ROHS, ISO
Model Number: AT070TN92
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 18.59-19.9
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Supply Ability: 300K/M
Detailed Product Description
Product Type: TFT LCD    Display Type: TFT LCD
Operating Temp.: -20°C~+70°C    Storage Temp.: -30°C~+80°C
 Certificate: Ce, RoHS, SGS Active Area(mm): 164.9*100*7.13
Surface Treatment: Anti-Glare Electrical Interface: Lvds
High Light:

LVDS LCD Monitor Module


1.90W LCD Monitor Module


500cd/M2 TFT LCD Monitor

High Brightness 7" TFT Display Screen with Lvds Interface Capacitive Touch Panel


Module number AT070TN92
Resolution 800x480
Pixel pitch 0.05(W) × 0.15(H) mm
Active Area 164.9*100*7.13
View angle R/L/U/D 75/75/70/75(Deg)
Pixel Arrangement RGB Vertical Stripe
Surface Treatment Anti-glare
Electrical Interface LVDS
Brightness 500(cd/m2)
Contrast ratio 500:01:00

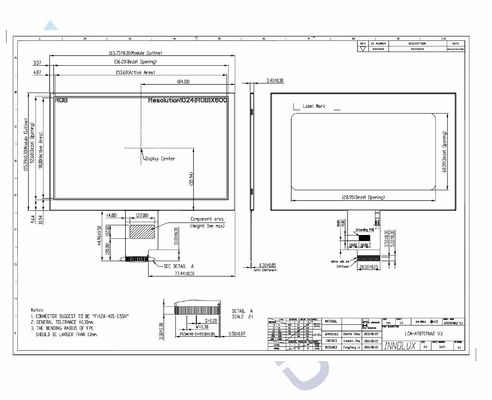

Outline dimension 165.75(W) ×105.39(H) ×3.4(D) mm
Backlight LED
Response time 25(ms)
Display mode TN, Normally White, Transmissive
Operate temperature -30-85(°C)
Storage temperature -30-85(°C)
Display Colors 262k/16.7M(6 bit/ 6 bit + Dithering)
Power Consumption 1.90W(Typ.)
Power Supply Voltage 3.3v(Typ.)
Backlight lifetime 20k hrs(Min.)






1. Best Quality

---THREE times of inspection on all products on production:

Step 1: Raw Material check

Step 2: Process check and full inspection after wire bonding&chip bonding

Step 3: full test before packaging and partial check before shippment


2. Best Price


---best suppliers sources

---all products by oneself


3.Company strength

---good quality&competitive price

---Listed company

---Management System: ISO 9001:2015


4.Rich experiences

---Over 10 years experiences in Lcd display field.



7" LVDS 1.90W LCD Monitor Module LED Backlight 500cd/M2 0




7" LVDS 1.90W LCD Monitor Module LED Backlight 500cd/M2 1






1.High quality of TFT LCD screens.


2.The visible area of TFT LCD screens is large.


3.TFT LCD screens have a wide range of applications.


4.TFT LCD screens have no electromagnetic radiation.


5.TFT LCD screens digital interface.


6.TFT LCD screens "figure" symmetrical and small.


7. The effect of TFT LCD screens is good


8. Low power consumption of TFT LCD screens





1, Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2, Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3, Payment Terms: T/T, Western Union,L/C, PayPal

4, Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5, Service: Best after-sales service to ensure satisfaction from customers.

6, Warranty: Usually, product warranty for one year.

7, Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

8. If mass production has any quality problem, customer can return it.





7" LVDS 1.90W LCD Monitor Module LED Backlight 500cd/M2 2



7" LVDS 1.90W LCD Monitor Module LED Backlight 500cd/M2 3
