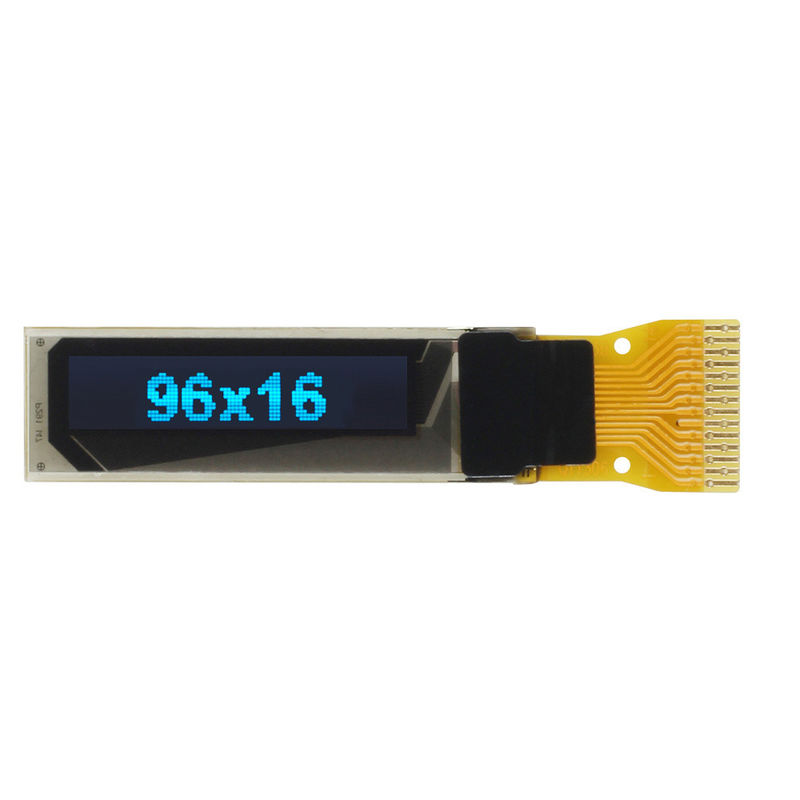

ODM/OEM 96x16DOTS 0.84 Inch 14 Pin Monochrome Blue OLED Display Module

ODM/OEM 96x16DOTS 0.84 Inch 14 Pin Monochrome Blue OLED Display Module
ODM/OEM 96x16DOTS 0.84 Inch 14 Pin Monochrome Blue OLED Display Module

Large Image :  ODM/OEM 96x16DOTS 0.84 Inch 14 Pin Monochrome Blue OLED Display Module

Product Details:
Place of Origin: China
Certification: ROHS, ISO
Model Number: RY-9616TLBBG02
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Supply Ability: 300K/M
Detailed Product Description
Product Type: TFT LCD Outline Dimension(mm): 29.22mmX26.16mm
 Certificate: Ce, RoHS, SGS Resolution: 96X16
Controller IC: SSD1316 Interface: I2c Port
High Light:

Monochrome Blue OLED Display Module


96x16OLED Display Module


0.84 Inch Lcd Screen Module

0.84 Inch 14pin 96*16 Monochrome Blue OLED Display


96x16 Graphic OLED Display | RY-9616TLBBG02

Module size: 29.1x9.2x1.2mm

Driver: SSD1316

Blue Pixels, 8-bit Parallel; I2C; Wide Temp (-40° to +70° operating/-40° to +85° storage), 3.3~4.2V OLED, RoHS Compliant.


Model Number RY-9616TLBBG02
Resolution 96*16
Display color White/Blue
Drive Duty 1/16 Duty
Dot Patch 0.18*0.2mm
Controller IC SSD1316
Outline Dimensions 29.1x9.2x1.2mm
Active Area 21.1x3.5mm
Interface IIC port
Pixel Size 0.2*0.2mm
Operating Temp. -20°C~+70°C
Storage Temp. -30°C~+80°C
Number of pins

14 pin






OLED (Organic Light Emitting Display) refers to the phenomenon when several organic thin films are placed between an anode and a cathode, under a positive bias voltage, a bright light is emitted from the anode side via a process of carriers´ injection, transfer and recombination. OLED Character.




  • Low power consumption
  • Fast response
  • High Contrast
  • Free Viwwing Angle
  • Vivid Color




0.84 inch OLED Arduino is very popular application for the 0.84 inch OLED displays, it is also known for 0.84 inch OLED I2C Display. If need Arduino 0.84 inch OLED I2C example, you can buy the I2C 0.84 inch OLED Display Module to test at first, you can check the 0.84 inch OLED datasheet above, and we can provide the 0.84 inch OLED I2C Arduino library for your projects.




ODM/OEM 96x16DOTS 0.84 Inch 14 Pin Monochrome Blue OLED Display Module 0




Royal Display Co., Ltd has been specializing in LCD business for more than 10 years.


The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.



ROYAL DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.



All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.



ODM/OEM 96x16DOTS 0.84 Inch 14 Pin Monochrome Blue OLED Display Module 1



Q: What is the minimum order quantity?
A: All our products have a MOQ requirement, please contact our salesman for detailed information.

Q: Are you open to OEM processing?
A: Yes, we can OEM.

Q: What is the product's application?
The products can be widely applied to the fields of HMI, handheld terminals, household medical products, instruments and apparatus, white goods, oiling machine, auto, and AOI, etc.

Q: What kind of packaging? The transport process will not be damaged?
A: Our products are divided into two categories, small-medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and straps to ensure the safety of material transportation.

Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
