| Product Type: | TFT LCD | Resolution: | 64*32 |
|---|---|---|---|
| Active Area(mm): | 11.18*5.58mm | Outline Dimension(mm): | 14.5×11.6×1.2mm |
| Pixel Arrangement: | 0.155*0.155mm | Drive IC: | SSD1306 |
| Display Color: | White | Operating Temp.: | -20°C~+70°C |
| Storage Temp.: | -30°C~+80°C | Number Of Pins: | 14 Pin |
| High Light: | SSD1306 Driver Transparent OLED Display,I2c Transparent OLED Display,0.49 Inch Tft Lcd Monitor |
||

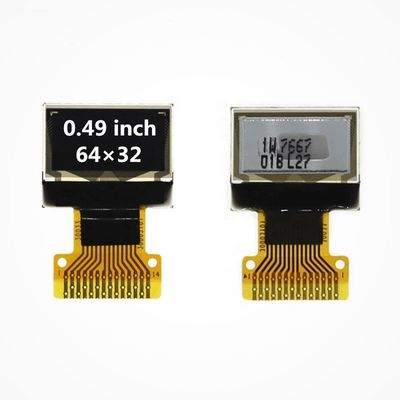

64x32 Graphic OLED Display | RY-6432TSWEG02
Module size: 14.5×11.6×1.2mm
Driver: SSD1306
White Pixels, I2C interface, Wide Temp (-40° to +70° operating/-40° to +85° storage), 3V OLED, RoHS Compliant.
| 1 | Model Number | RY-6432TSWEG02 |
| 2 | Resolution | 64*32 |
| 3 | Display color | White |
| 4 | Drive Duty | 1/32 Duty |
| 5 | Dot Patch | 0.17*0.17mm |
| 6 | Controller IC | SSD1306 |
| 7 | Outline Dimensions | 14.5*11.6*1.2mm |
| 8 | Active Area | 11.18*5.58mm |
| 9 | Interface | IIC port |
| 10 | Pixel Size | 0.155*0.155mm |
| 11 | Operating Temp. | -20°C~+70°C |
| 12 | Storage Temp. | -30°C~+80°C |
| 13 | Number of pins | 14 pins |
MORE INFORMATION ABOUT OLED DISPLAY
0.49 inch OLED display Arduino is very popular application for the 0.49 inch OLED, it is also known for 0.49 inch OLED I2C Display, 0.49 inch OLED SPI Display or 0.49 inch OLED 128×64 SPI Display. If need Arduino 0.49 inch OLED I2C example, you can buy the I2C 0.49 inch OLED Display Module to test at first, you can check the 0.49 inch OLED datasheet above, and we can provide the 0.49 inch OLED I2C Arduino library for your projects.
OUR SERVICE ADVANTAGES
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
2. Mass production lead time would be guaranteed. Each order will have 0.2%-0.5% spare.
3. The effect of TFT LCD screens is good. Low power consumption of TFT LCD screens
4. Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
APPLICATIONS
Our products can be widely used in telecommunication devices, consumer products, telecommunication devices, technical equipment, office automation, home appliances, automobile, it products, medical equipment and other fields.
ABOUT US
Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
