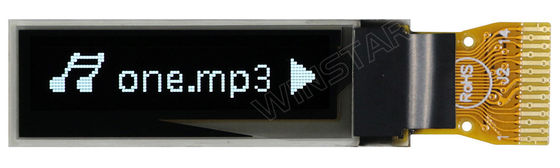

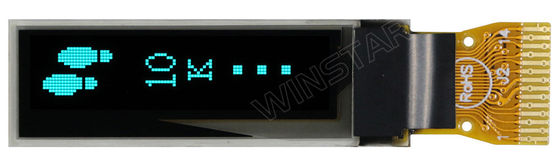

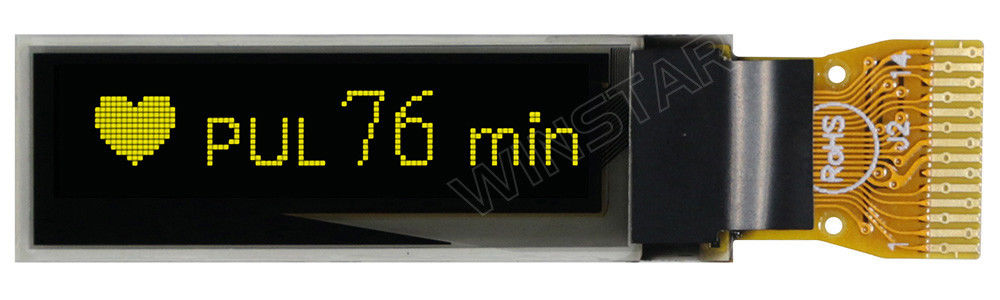

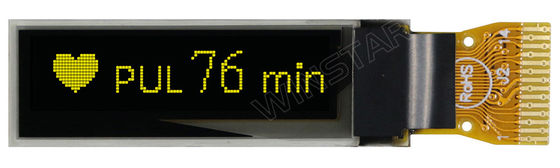

0.84 Inch OLED 96x16dots 14 pin SSD1316 White/Blue display color LCD Smart Display White Wearable
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | RY-9616TLBBG02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| Resolution: | 96*16 | Active Area(mm): | 21.1x3.5mm |
|---|---|---|---|
| Outline Dimension(mm): | 29.1x9.2x1.2mm | Pixel Arrangement: | 0.2*0.2mm |
| Drive IC: | SSD1316 | Display Color: | White/Blue |
| Operating Temp.: | -20°C~+70°C | Storage Temp.: | -30°C~+80°C |
| Number Of Pins: | 14 Pin | ||
| Highlight: | OLED 96x16 LCD Smart Display,0.84 Inch LCD Smart Display,White Wearable Lcd Tft Screen |
||
Product Description
PRODUCT DESCRIPTION
96x16 Graphic OLED Display | RY-9616TLBBG02
Module size: 29.1x9.2x1.2mm
Driver: SSD1316
Blue Pixels, 8-bit Parallel; I2C; Wide Temp (-40° to +70° operating/-40° to +85° storage), 3.3~4.2V OLED, RoHS Compliant.
| Model Number | RY-9616TLBBG02 |
| Resolution | 96*16 |
| Display color | White/Blue |
| Drive Duty | 1/16 Duty |
| Dot Patch | 0.18*0.2mm |
| Controller IC | SSD1316 |
| Outline Dimensions | 29.1x9.2x1.2mm |
| Active Area | 21.1x3.5mm |
| Interface | IIC port |
| Pixel Size | 0.2*0.2mm |
| Operating Temp. | -20°C~+70°C |
| Storage Temp. | -30°C~+80°C |
| Number of pins | 14 pin |
OUR SERVICE ADVANTAGES
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2%-0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
6. Got many good reviews from our customers.
WHY CHOOSE ROYAL DISPLAY?
1. Best Quality
---THREE times of inspection on all products on production:
Step 1: Raw Material check
Step 2: Process check and full inspection after wire bonding&chip bonding
Step 3: full test before packaging and partial check before shippment
2. Best Price
---manufacturer
---best suppliers sources
---all products by oneself
3.Company strength
---good quality&competitive price
---Listed company
---Management System: ISO 9001:2015
4.Rich experiences
---Over 10 years experiences in Lcd display field.
OLED Display
1. Feature: oled self-luminous, low power, without backlight,
2. Application: sports bracelets, Watches,Handheld Devices,Electronic tages
3. Thin (no backlight required)
4. Uniform brightness
5. Wide operating temperature range (solid-state devices with electro-optical properties that are independent of temperature)
6. Ideal for video with rapid switching times (μs)
7. High contrast (>2000:1)
8. Wide viewing angles (-180°) with no gray inversion
9. Low power consumption
10. Free consulting and 24x7 technical supported
