At043tn25 V.2 Innolux 4.3" LCM 480X272 Automotive Display LCD Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | INNOLUX |
| Certification: | ISO9001 |
| Model Number: | At043tn25 V.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 10~15days |
| Payment Terms: | T/T |
| Supply Ability: | 20000pcs per month |
|
Detail Information |
|||
| Product Type: | TFT LCD Panel | Product Name: | Innolux 4.3'' LCD Panel |
|---|---|---|---|
| Display Mode: | Normally Black,TFT/Transmissive | Resolution: | 480X3(RGB)X272 |
| Module Size(mm): | 105.5 X 67.2 X 2.9 | Active Area(mm): | 95.04 X 53.856 |
| Interface: | 40pin FPC,Parallel 24bit RGB | Warranty: | One Year |
| Highlight: | Automotive Display LCD Panel,4.3” LCM LCD Panel,Innolux 4.3” LCM LCD Panel |
||
Product Description

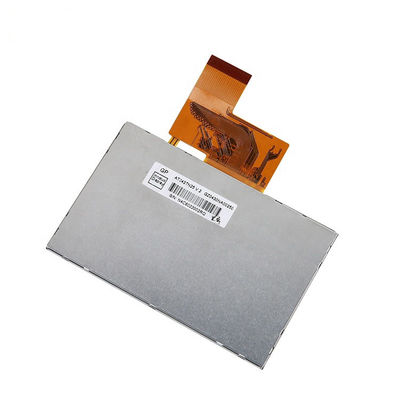

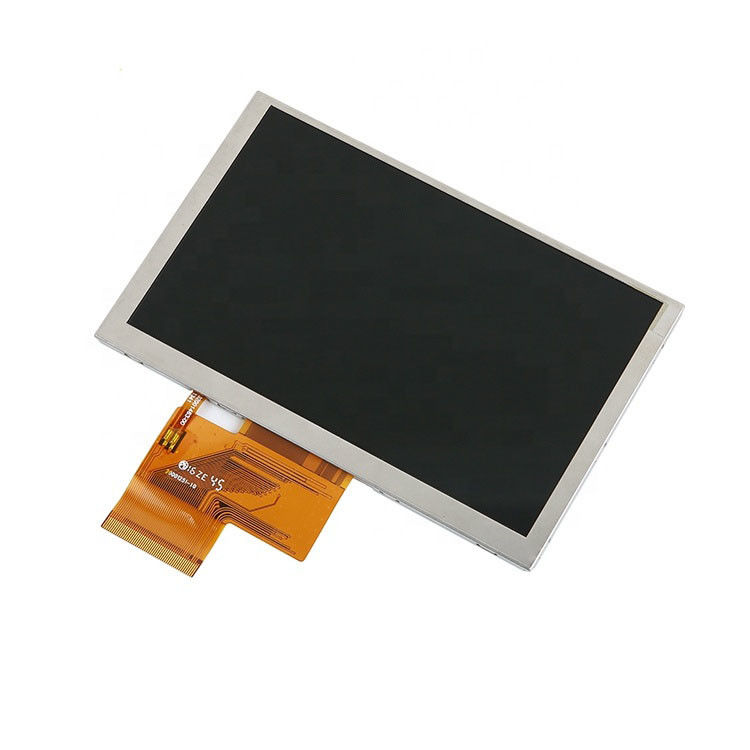

AT043TN25 V.2 Innolux 4.3" LCM 480x272 Automotive Display LCD Panel
PRODUCT DESCRIPITION
4.3 inch Description Of Innolux LCD Panel
Chimei Innolux Corporation (hereafter called Chimei Innolux)AT043TN25 V2 (Alias: AT043TN25 V2) is a 4.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.
| Product Name: | AT043TN25 V.2 |
| Touch Panel: | No |
| Screen Size: | 4.3" |
| Aspect Ratio: | 16:9 |
| Display Mode: | Transmissive |
| Resolution: | 480X3(RGB)X272 |
| PPI ( Pixel per inch ): | 128 |
| Module/Panel Size(mm): | 105.5 x 67.2 x 2.9 |
| Active Area(mm): | 95.04 x 53.856 |
| Dot Pitch(mm): | 0.066(W) X 0.198(H) |
| Surface Treatment: | Anti-Glare |
| Viewing Angle (Tpy.)θT/θB/θL/θR: | 50/70/70/70 |
| Viewing direction: | 6 O'Clock |
| NTSC: | 50% |
| Luminance(nits): | 500 |
| Contrast Ratio: | 500 |
| Response Time(ms): | 25 |
| Consumption (W)- Panel: | 0.056 |
| Consumption (W)- Backlit: | 0.558 |
| Weight (g): | 58.0 |
| Interface: | 40pin FPC,Parallel 24bit RGB |
| Operation Temperature( ºC): | -20~70 |
| Storage Temperature (ºC): | -30~80 |
| Lamp Type: | White LED backlight display |
APPLICATION OF CHIMEI INNOLUX LCD PANEL
1. Automotive Application
2. Industrail Security
3. Intelligent Interaction
4. Smart Home Appliances
5. Digital Signage
