Product Details:
Payment & Shipping Terms:
|
| Model Number: | At080tn64 | Product Name: | Innolux At080tn64 LCD Panel |
|---|---|---|---|
| Resolution: | 800X3(RGB)X480 | Display Mode: | Normally White, Transmissive |
| Module Size(mm): | 192.8(W) X 116.9(H) X 6.4(D) Mm | Active Area(mm): | 176.64(W) X 99.36(H) Mm |
| Surface Treatment: | Antiglare | ||
| High Light: | 800x480 Automotive TFT LCD Panel,LCM Automotive TFT LCD Panel,Innolux At080tn64 Lcd Screen Module |
||

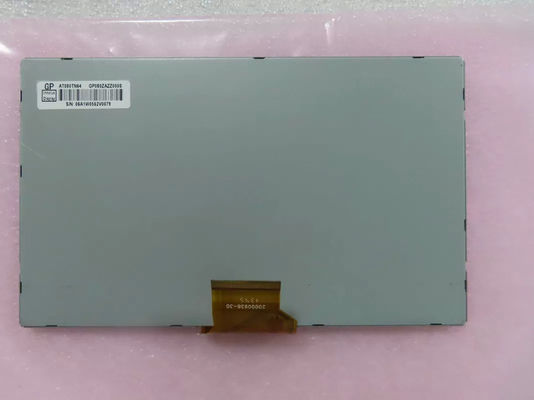

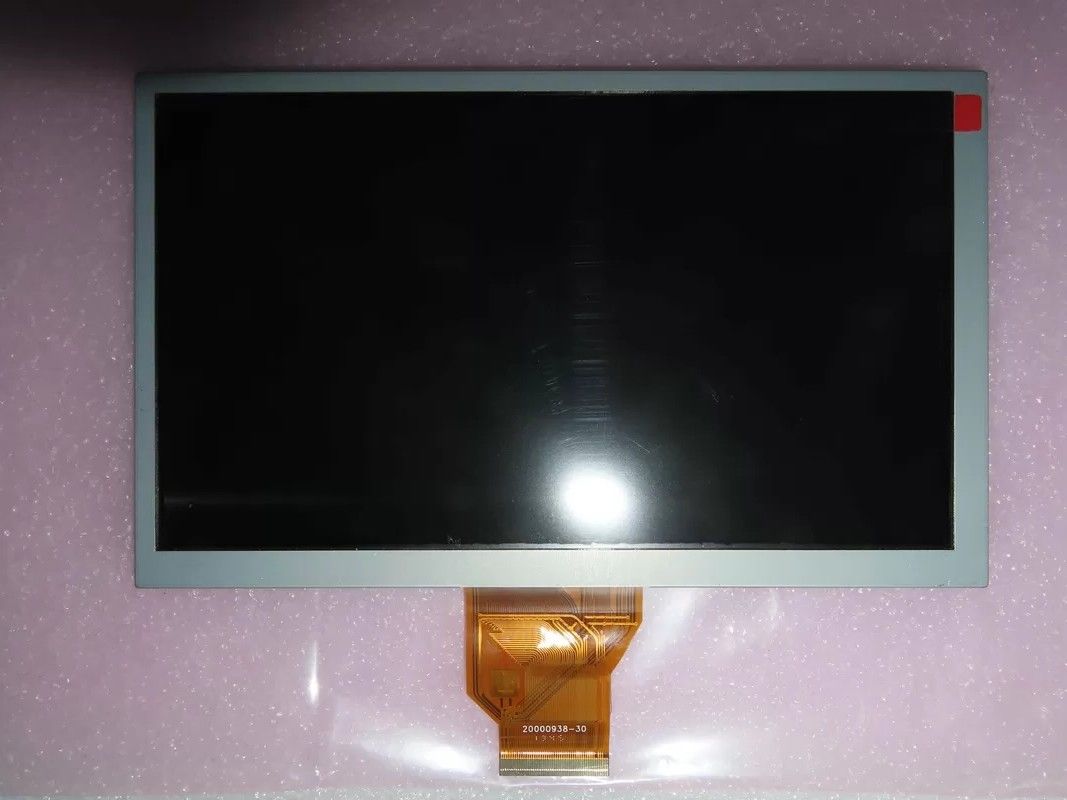

At080tn64 Innolux 8" LCM 800X480 Automotive Display TFT LCD Panel
PRODUCT DESCRIPITION
AT080TN64 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H)×6.7(D) mm, viewing area size of 180.1(W)×103.4(H) mm, with surface treament of Antiglare, net weight of 245g (Typ.).
| Panel Brand | INNOLUX |
| Model Number | AT080TN64 |
| Driver element | a-Si TFT-LCD , Panel |
| Panel Size | 8.0 inch |
| Resolution | 800*480 |
| Display Mode | Normally White, Transmissive |
| Surface Treatment | Antiglare |
| Dot pitch | 0.0736(W) X 0.2070(H) mm |
| Active area | 176.64(W) X 99.36(H) mm |
| Module size | 192.8(W) X 116.9(H) X 6.4(D) mm |
| Color arrangement | RGB-stripe |
| Interface | Digital (TTL) |
| Backlight power consumption | 2.232 W (Typ) |
| Panel power consumption | 0.226W (Typ.) |
|
Source-IC
Gate-IC
|
NT39419BH-D/4ID
NT52001H-D/4IC
|
| Driving methods | 1+2 dot |
| Weight | 245g |
