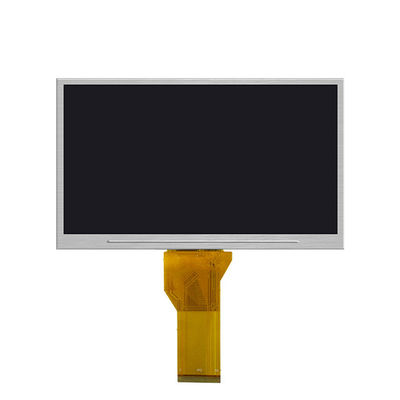

LVDS 7.0 Inch GT911 TFT LCD Monitor Innolux ZJ070NA-03C
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal |
| Certification: | RoHS |
| Model Number: | ZJ070NA-03C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 96pcs/carton |
| Delivery Time: | 15~18 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 300,000 Piece/Pieces per Year |
|
Detail Information |
|||
| Screen Size: | 7" | Resolution: | 800X3(RGB)X480 |
|---|---|---|---|
| Display Mode: | Normally White Transmissive | Outline Dimension: | 164.9(W)x100(H)x5.7(D) |
| Active Area: | 153.6(H)X90(V)mm | Application: | Industrial Application |
| Pixel Arrangement: | RGB-Veritical Stripe | Drive IC: | GT911 |
| TP: | 8-wire CTP | ||
| Highlight: | GT911 TFT LCD Monitor,LVDS TFT LCD Monitor,Innolux ZJ070NA-03C LCD module |
||
Product Description

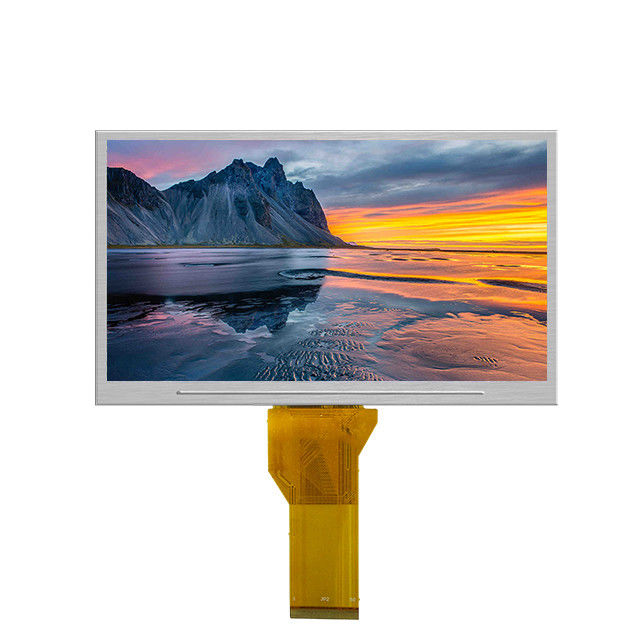

Innolux 7 Inch TFT Display | ZJ070NA-03C
Innolux ZJ070NA-03C 7.0 Inch TFT LCD GT911 LCD Monitor LCD module
Innolux's employees worldwide number more than 60,000, and its production sites and sales locations span the global.
With its major TFT plants located in Zhunan and Tainan, both in Taiwan, Innolux has also established overseas
module plants in the Chinese cities of Ningbo, Nanjing, Foshan, and Shanghai. Innolux's extensive global presence allows it to quickly provide a full range of services to its customers, reducing logistics and manpower costs, while achieving the environmental objectives of energy conservation and reduced carbon emissions. Innolux's unique intelligent management platform has not only enhanced the company's management capabilities, but also provides customers with prompt, accurate delivery information.
This is just one of the ways we are constantly striving to boost customer satisfaction.
| Module number | AT070TN94 |
| Resolution | 800X480 |
| Pixel pitch | 0.05(W) × 0.15(H) mm |
| Active Area | 153.6(W) × 90.0(H) mm |
| View angle | R/L/U/D 75/75/70/75(Deg) |
| Pixel Arrangement | RGB Vertical Stripe |
| Surface Treatment | Anti-glare |
| Electrical Interface | LVDS |
| Brightness | 250(cd/m2) |
| Contrast ratio | 500:01:00 |
| Outline dimension | 165.75(W) ×105.39(H) ×3.4(D) mm |
| Backlight | LED |
| Response time | 25(ms) |
| Display mode | TN, Normally White, Transmissive |
| Operate temperature | -30-85(°C) |
| Storage temperature | -30-85(°C) |
| Display Colors | 262k/16.7M(6 bit/ 6 bit + Dithering) |
| Power Consumption | 1.90W(Typ.) |
| Power Supply Voltage | 3.3v(Typ.) |
| Backlight lifetime | 20k hrs(Min.) |
