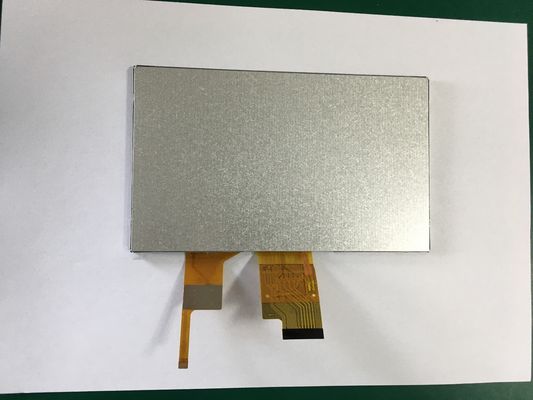

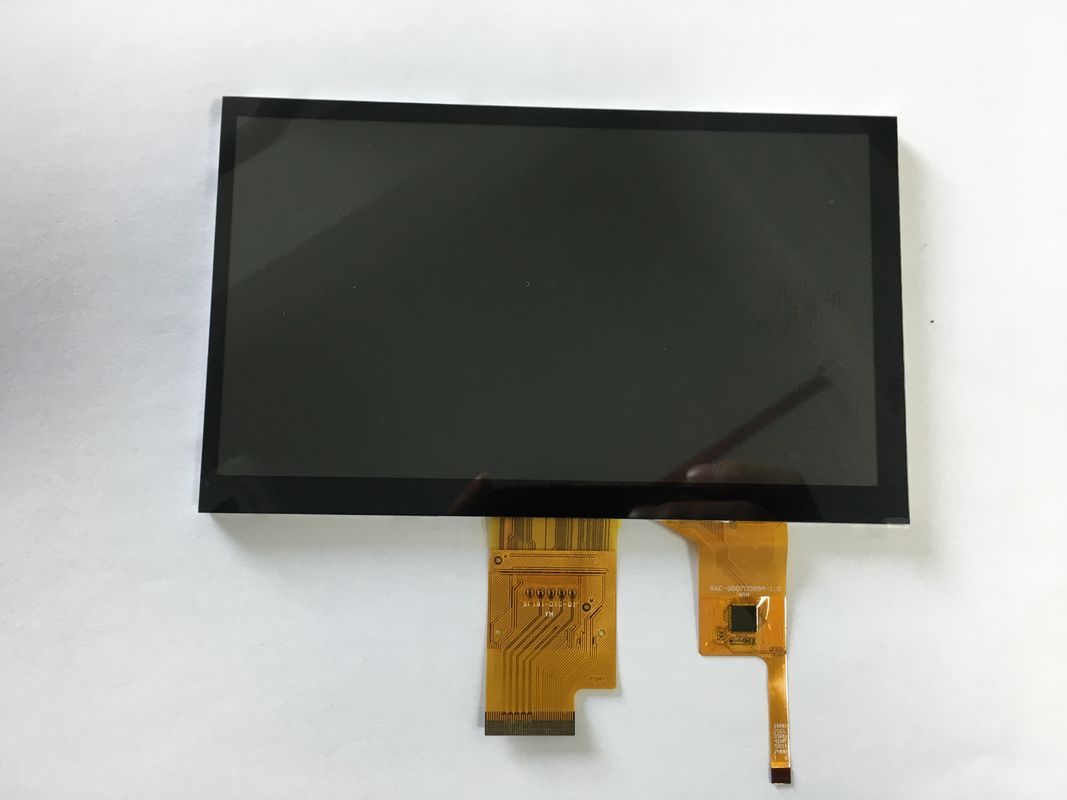

LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1

LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1
LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1 LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1

Large Image :  LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1

Product Details:
Place of Origin: China
Brand Name: Royal
Certification: RoHS
Model Number: AT070TNA2 V.1
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 96pcs/carton
Delivery Time: 3-5 working days
Payment Terms: T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300,000 Piece/Pieces per Year
Detailed Product Description
Screen Size: 7" Resolution: 1024X3(RGB)X600
Interface: 40pin FPC, Parallel 24bit RGB Viewing Direction: Full Viewing Angle, ALL, 12 O'clock
Aspect Ratio: 16:9 Contrast Ratio: 500
Luminance(nits): 400 Application: Industrial Application
High Light:

IPS TFT Capacitive Lvds Display

,

1024X600 TFT Capacitive Lvds Display

,

AT070TNA2 V.1

Orginal Innolux 30 Pin LCD 7'' 1024X600 IPS Touchscreen TFT Capacitive Lvds Display


Module number AT070TNA2 V.1
Resolution 1024X600
Pixel pitch 0.05(W) × 0.15(H) mm
Active Area 153.6(W) × 90.0(H) mm
View angle R/L/U/D 75/75/70/75(Deg)
Pixel Arrangement RGB Vertical Stripe
Surface Treatment Anti-glare
Electrical Interface LVDS
Brightness 250(cd/m2)
Contrast ratio 500:01:00
Outline dimension 165.75(W) ×105.39(H) ×3.4(D) mm
Backlight LED
Response time 25(ms)
Display mode TN, Normally White, Transmissive
Operate temperature -30-85(°C)
Storage temperature -30-85(°C)
Display Colors 262k/16.7M(6 bit/ 6 bit + Dithering)
Power Consumption 1.90W(Typ.)
Power Supply Voltage 3.3v(Typ.)
Backlight lifetime 20k hrs(Min.)



Design your display: We have professional R&D team, who can develop, design and customize LCD/LCM for customers. OEM and ODM are welcomed. We have world advanced technology LCD/LCM manufacturing workshop, with certifications of ISO9001, ISO14001 and TS16949.



At present we have three series of special display, namely: wide temperature, high resolution, high brightness. This is a high-brightness display, it's brightness up to 1000 cd/m2 . At the same time, we also have the controller board, You can enjoy a one-stop shop.

LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1 0

ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1 1LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1 2
OUR SERVICE ADVANTAGES

1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2%-0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
6. Got many good reviews from our customers.

FAQ


Q: What is the MOQ?
A: Generally if you choose the different products, our minimum order qty also will be different.
Innolux 10.1 Inch 1280*800 IPS lcd module with hdmi driver board


Q: What about the delivery time?
A: The LCD products need 5-6 weeks to be made after receive deposit.



Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.


Q: What's your payment method?
A: We usually accept the payment methods include T/T, Western Union and Trade Assurance. 50-100% deposit in advance and balance before shipping upon the payment amount. Buyer can choose which payment ways that you accept.


Q: What's your shipping method?
A: We provide comprehensive shipping methods.
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.


Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.

LCD 7'' 1024X600 IPS TFT Capacitive Lvds Display AT070TNA2 V.1 3
