| Type: | TFT | Display Type: | TFT LCD |
|---|---|---|---|
| Screen Size: | 2.8'' | Resolution: | 240X3(RGB)X320 |
| Outline (mm): | 50.2(W) X 69.3 (H) X 4.0 (D) | Active Area(mm): | 43.2(H) X57.6 (V) |
| TP VA Size(mm): | 96.04x54.86 | Pixel Arrangement: | RGB-Veritical Stripe |
| TP: | 8-Wire CTP | Drive IC: | Ili9341V |
| Operation Temperature( ºC): | -20º C~70ºC | Storage Temperature (ºC): | -30º C~80ºC |
| High Light: | MCU TFT LCD Monitor,240X320 TFT LCD Monitor,2.8'' TFT LCD Screen |
||

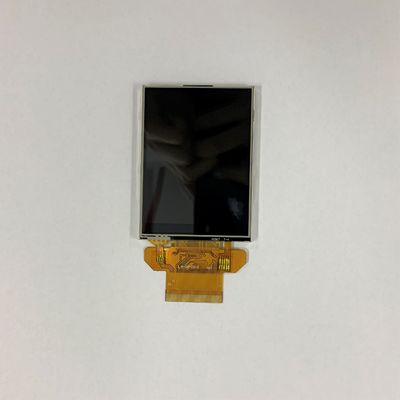

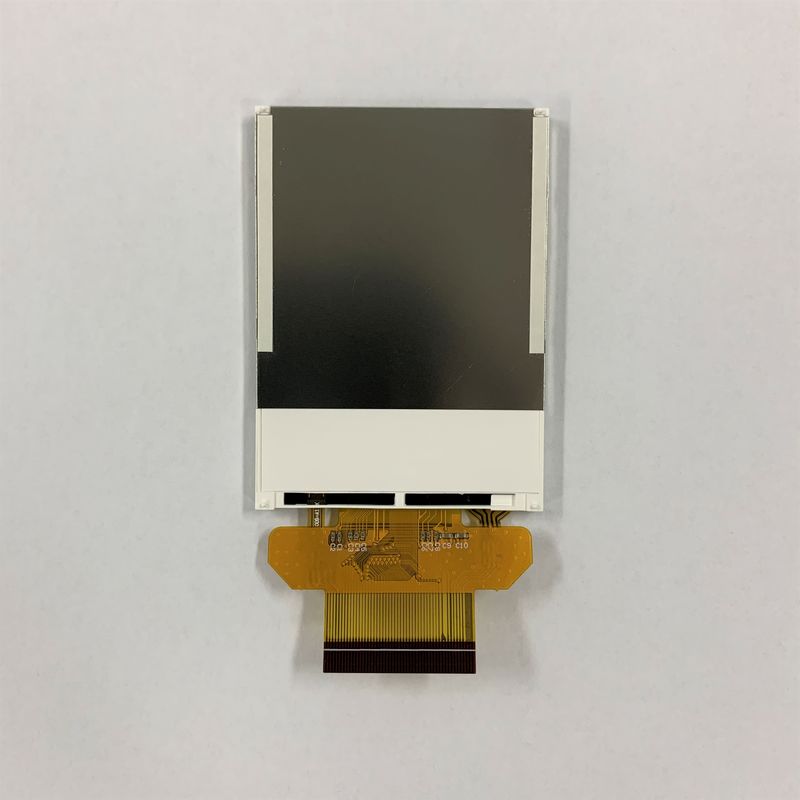

2.8'' RGB 240X320 Resolution Normally White Transmissive TFT LCD Module
PRODUCT DESCRIPTION
2.8 Inch TFT Display | RYTPQ28NN08-02
Module size: 50.2(W)x69.3(H)x4.9(D)
Driver: ILI9341V
LVDS, White LED backlight, IPS, Wide temp, Transmissive, Capacitive Touch Screen, HDMI connection, CTP Driver: ILI9341V RoHS Compliant
1. IPS or 12 o'clock display screen.
2. Customized :Logo,Touch Button,Silk-Printing,Mirror Cover Lens,Shape/Hole
3. Anti-Glare/Anti-Finger/ Anti-Reflective/Waterproof/Gloves Touch Available
4. Supply TFT/Touch Panel/touch display module(TFT+CTP)
| Item | Description |
| Model Name | RYTPQ28NN08-02 |
| Product type | TFT LCD Module |
| Screen Size | 2.8" |
| Aspect Ratio | 4:3 |
| Resolution | 240X3(RGB)X320 |
| LCM Size(mm) | 50.2(W)X69.3(H)X4.9(D) |
| Active Area(mm) | 43.2(H) X57.6 (V) |
| TP | 8-Wire CTP |
| Drive IC | Ili9341V |
| Operation Temperature( ºC) | -20º C~70ºC |
| Storage Temperature (ºC) | -30º C~80ºC |
