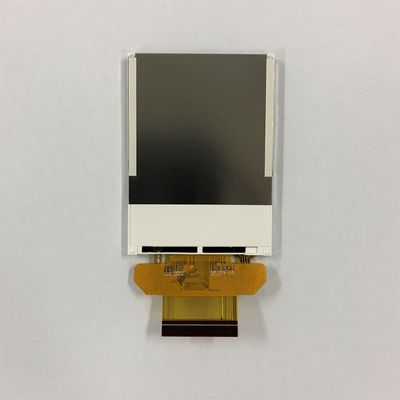

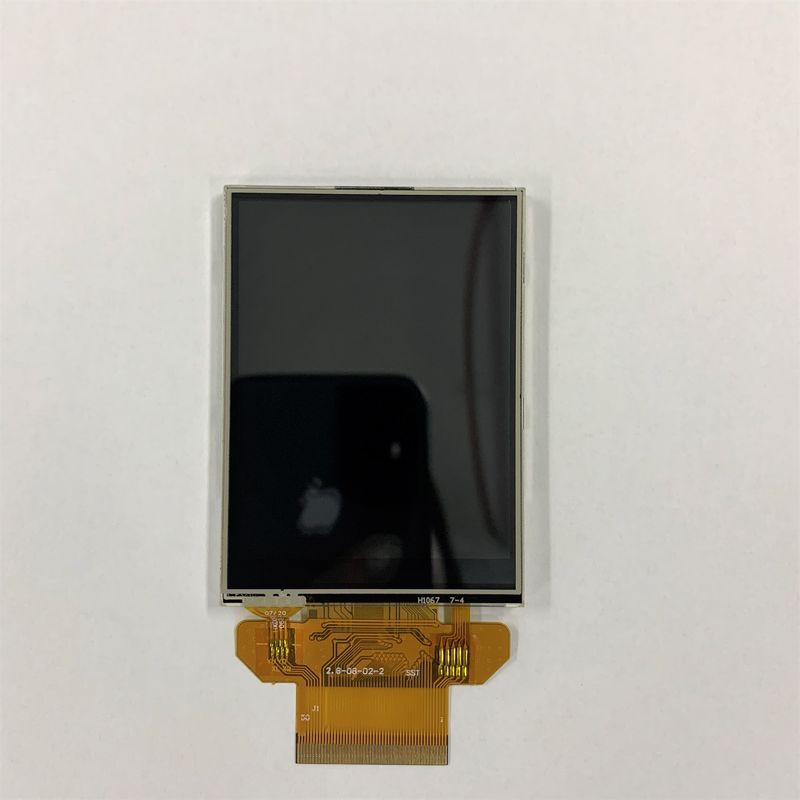

ILI9341V 2.8'' RGB 240x320 Transmissive TFT LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal |
| Certification: | RoHS |
| Model Number: | RYTPQ28NN08-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~18 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300,000 Piece/Pieces per Year |
|
Detail Information |
|||
| Type: | TFT | Product Name: | 2.8'' TFT LCD With Touch Panel |
|---|---|---|---|
| Screen Size: | 2.8'' | Resolution: | 240X3(RGB)X320 |
| Display Mode: | Normally White/Transmissive | Drive IC: | ILI9341V |
| Operating Voltage: | VDD=3.3V | Viewing Direction: | 6 O'clock |
| Application: | Industrial Application | Warranty: | One Year |
| Highlight: | Transmissive TFT LCD Module,240x320 TFT LCD Module,ILI9341V TFT LCD Panel |
||
Product Description
2.8 Inch TFT Display | RYTPQ28NN08-02
Module size: 50.2(W)x69.3(H)x4.9(D)
Driver: ILI9341V
LVDS, White LED backlight, IPS, Wide temp, Transmissive, Capacitive Touch Screen, HDMI connection, CTP Driver: ILI9341V RoHS Compliant
1. IPS or 12 o'clock display screen.
2. Customized :Logo,Touch Button,Silk-Printing,Mirror Cover Lens,Shape/Hole
3. Anti-Glare/Anti-Finger/ Anti-Reflective/Waterproof/Gloves Touch Available
4. Supply TFT/Touch Panel/touch display module(TFT+CTP)
DOCUMENTATION
- Certificates from Royal Display.pdf
- RYTQ28NN08-02(1).pdf
- ROYAL DISPLAY(SHENZHEN).pdf
