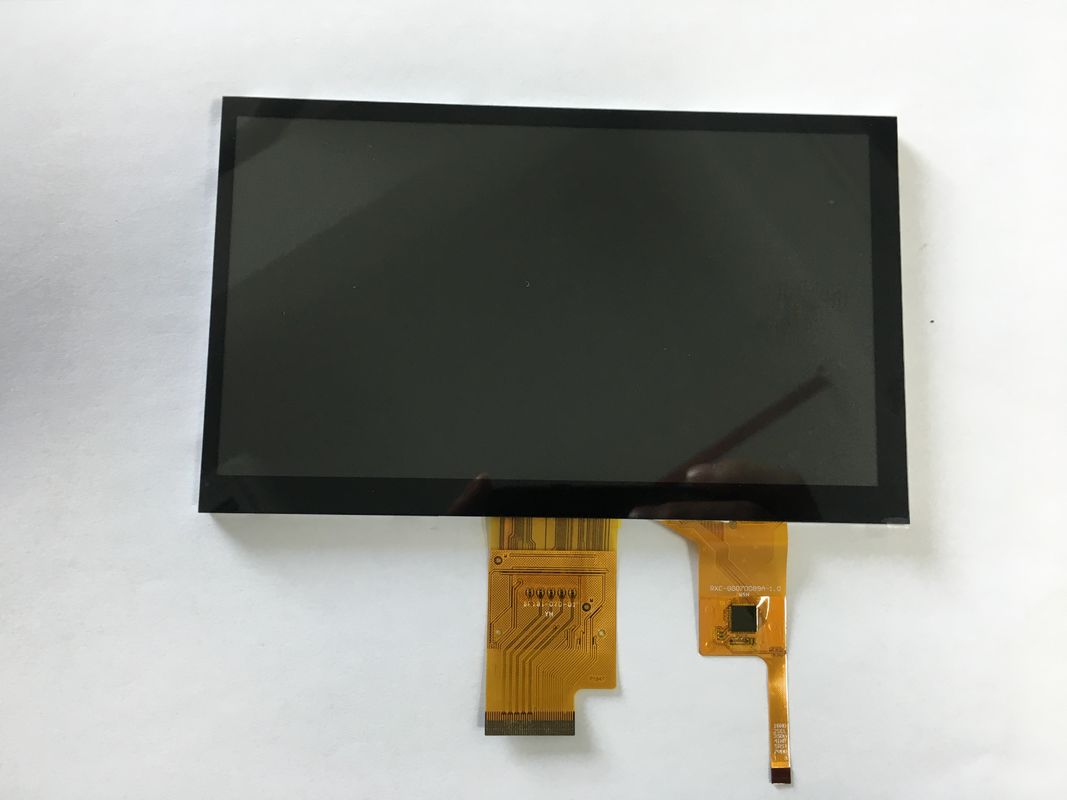

Capacitive 7" RGB 1024x600 Transmissive TFT LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal |
| Certification: | RoHS |
| Model Number: | RYTW70NP03-16-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 96pcs/carton |
| Delivery Time: | 15~18 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 300,000 Piece/Pieces per Year |
|
Detail Information |
|||
| Screen Size: | 7" | Resolution: | 1024X3(RGB)X600 |
|---|---|---|---|
| Display Mode: | Normally White Transmissive | Active Area: | 153.6(H)X90(V)mm |
| Outline Dimension: | 164.9(W)x100(H)x5.7(D) | Pixel Arrangement: | RGB-Veritical Stripe |
| Application: | Industrial Application | TP: | 8-wire CTP |
| Drive IC: | GT911 | ||
| Highlight: | Transmissive TFT LCD Module,1024x600 TFT LCD Module,7" RGB Capacitive Touch Panel |
||
Product Description
7 Inch TFT Display |RYTW70NP03-16-2
Module size: 164.9(W)x100(H)x5.7(D)
Driver: GT911
LVDS, White LED backlight, IPS, Wide temp, Transmissive, Capacitive Touch Screen, HDMI connection, CTP Driver: GT911 RoHS Compliant
The Capacitive touch panel is activated with anything containing an inductive load such as a finger or stylus. It allows for multi-touch options. When using the capacitive touch screen, the display needs a separate controller to interface with the touch panel. The display for capacitive touch is brighter since the touch panel is transparent.
The Transmissive polarizer is best used for displays that run with the backlight on all the time. This polarizer provides the brightest backlight possible. If you have a need for a bright backlight with lower power drain, transmissive is a good choice for this TFT LCD display.
DOCUMENTATION
- Certificates from Royal Display.pdf
- RYTW70NP03-16-2(2).pdf
- ROYAL DISPLAY(SHENZHEN).pdf
ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
WARRANTY -
Royal Display offers the original purchaser who has purchased a product from the lcdmoduletft.com a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
