Small Size Segment TN FFC LCD Module Monochrome Transflective Positive Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Royal Display or ODM/OEM |
| Certification: | SGS, ROHS |
| Model Number: | RYGXXXX |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | 99.99 USD EXW |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300K pcs/month |
|
Detail Information |
|||
| Display Type: | TN | Polarizer Type: | Transflective Positive |
|---|---|---|---|
| Connector: | Heat Seal | Operating Temp: | 0 To +59 Celsius Degree |
| Backlight Type: | N/A | Driver Method: | 1/2 Duty, 1/2 Bias |
| Highlight: | Monochrome LCD Module,Segment TN FFC LCD Module,Transflective Positive Display |
||
Product Description

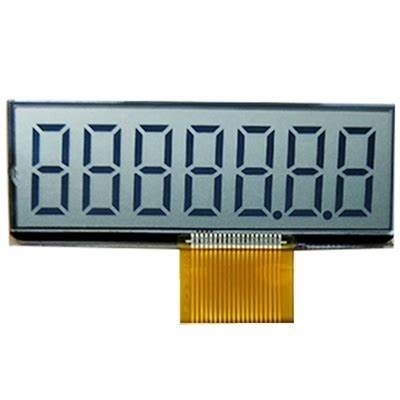

small size segment TN FFC LCD Module monochrome transflective positive display
Product Description
Module size: 38.00*12.25*2 mm
Black on White, FFC; energy saving transflective polarizer, RoHS Compliant.
We customize LCD Modules ranges from 0.5 inch to 15 inch LCD/OLED/VFD/EPD products, pls send us your drawing or requests.
With reasonable tooling charge and short time, you can get your customized products. Our products could resist temperature from -40 to +85 Celsius degree, and the brightness could be adjusted. We support all the changes you want to make about your current products.
| 1 | Model Number | RYG7053A |
| 2 | Resolution | segment |
| 3 | Display color | Black on White |
| 4 | Drive Duty | 1/2 Duty, 1/2 bias |
| 5 | Dot Pitch | TBC |
| 6 | Controller IC | TBC |
| 7 | Outline Dimensions | 38.00*12.25*2mm |
| 8 | Active Area | 21.74*11.20mm |
| 9 | Viewing Area | 36*8.25 mm |
| 10 | Interface | FFC |
| 11 | Pixel Size | TBC |
| 12 | Operating Temp. | 0°C~+50°C |
| 13 | Storage Temp. | -20°C~+70°C |
Applications
The small LCD Module could be used on calculators, timer, hour meter, gas meter, water meter, scales, etc.
We also design and make products for factorys and medical companies.
Our Advantages
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2%-0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
FAQs
1. What is the MOQ?
Re: No MOQ for samples,different MOQ requirements for bulk order.
2. What about the delivery time?
Re: For standard product,1 week for samples,4 weeks for bulk order;
For customization,3-4 weeks for samples,4 weeks for mass production after sample confirmation.
3. Is there any warranty for your products?
Re: Yes,we offer 12-month warranty for unartificial defect.
4. What is your shipping method?
Re: We can ship as buyer's requirements,our suggestions:
For small quantity,ship by DHL/Fedex/TNT/EMS Express service,delivery time: 4-6 business days;
For large quantity,ship by sea transaportation or air transportation for saving shipping charge.
5. What is your payment method?
Re: We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amount.
6. Do you offer customization service?
Re: Yes,welcome OEM&ODM,please send us your requirements for assessment.
