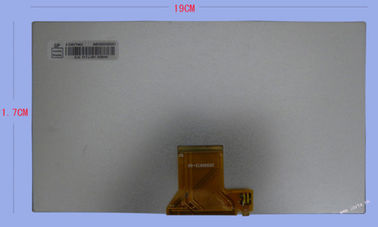

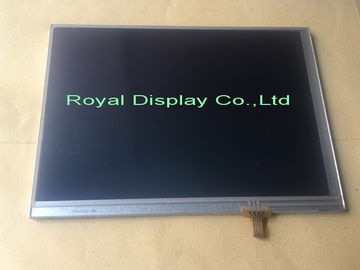

AT080TN62 Touch Screen Lcd Display , Innolux Tft Display Screen 8.0"
Product Details:
| Place of Origin: | China |
| Brand Name: | Innolux |
| Certification: | RoHS |
| Model Number: | AT080TN62 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 96pcs/carton |
| Delivery Time: | 15~18 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 300,000 Piece/Pieces per Year |
|
Detail Information |
|||
| Screen Size: | 8.0" | Resolution: | 800 X 3(RGB) X 480 |
|---|---|---|---|
| Aspect Ratio: | 16:9 | Interface: | 50pin FPC, Parallel 24bit RGB |
| Luminance(nits): | 250 | Contrast Ratio: | 500 |
| Highlight: | Tft Lcd Display Module,Lcd Tft Screen |
||
Product Description
AT080TN62 8.0 Inch 800 X 3(RGB) X 480 TFT LCD Touch Screen With 50pin FPC, Parallel 24bit RGB
Application:
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics
| Screen Size | 8.0" | |
| Module Size(mm) | 192.8 x 116.9 x 3.4 | |
| Active Area(mm) | 176.64 x 99.36 | |
| Display Mode | Transmissive | |
| Resolution | 800 X 3(RGB) X 480 | |
| Viewing Angle (Tpy.)θT/θB/θL/θR | 50/70/70/70 | |
| Viewing direction | 6 O'Clock | |
| NTSC | 50% | |
| Aspect Ratio | 16:9 | |
| Luminance(nits) | 250 | |
| Contrast Ratio | 500 | |
| Response Time(ms) | 25 | |
| Dot Pitch(mm) | 0.0736(W)X0.2070(H) | |
| PPI ( Pixel per inch ) | 119 | |
| Power Consumption (W) | 1.900 | |
| Weight (g) | 163 | |
| Interface | 50pin FPC, Parallel 24bit RGB |
|
| Operation Temperature( ℃) | -20~60 | |
| Storage Temperature (℃) | -30~70 | |
| HTHH.(op) | 60℃,90% RH | |
| Remark | / | |
