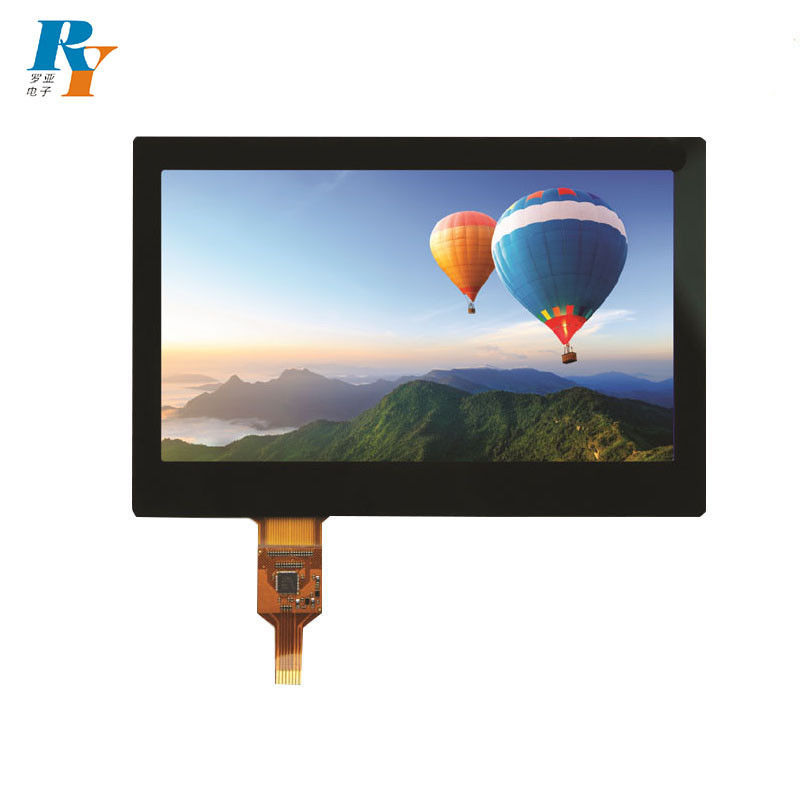

7" TFT LCD Module Lcd Display Module With CTP 800 RGB*480
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal |
| Certification: | SGS, ROHS |
| Model Number: | RYT070B8048TVC-W03 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union, T/T, MoneyGram |
| Supply Ability: | 10k/Month |
|
Detail Information |
|||
| Type: | TFT LCD | Size: | 7-inch |
|---|---|---|---|
| Resolution: | 800X 3(RGB) X 480 | Interface: | 24bit RGB |
| Viewing Direction: | 12:00 | Display Mode: | Normally White |
| With / Without TSP: | With CTP | Application: | Industrial Application,Multi-Touch Query Machine,Desktop Monitor |
| Highlight: | Tft Lcd Display Module,Hd Tft Display |
||
Product Description
7" TFT LCD Module Lcd Display Module With CTP 800 RGB*480
General Specifications
This is a 7.0-inch display module with a resolution of 800×480 (RGB) and a 24-bit RGB interface using a ZIF connector. It features an a-Si technology panel with a normally white display mode, R.G.B. stripe pixel configuration, and a viewing direction at 12 o’clock. The module size is 164.9 × 100 × 5.23 mm with an active area of 153.84 × 85.63 mm, equipped with a capacitive touch panel (CTP) and 18 LEDs for backlighting.
Display Specifications
| Item | Description |
| Model Name | RYT070B8048TVC-W03 |
| Product type | TFT LCD Module |
| Screen Size | 7" |
| Resolution | 800(horizontal)*480(Vertical) |
| Module Size(mm) | 164.9*100*5.23 |
| Active Area(mm) | 153.84*85.63 |
| Technology type | a-Si |
| Viewing Direction | 12:00 |
| With / Without TSP | With CTP |
| LED Numbers | 18 LEDs |
| Interface | 24bit RGB |
| Operation Temperature( ºC) | -20º C~70ºC |
| Storage Temperature (ºC) | -30º C~80ºC |
7-inch LCD Module Applications
This 7-inch LCD module is widely used in various industrial and consumer applications. Typical uses include smart home control panels, handheld terminals, industrial control equipment, medical devices, automotive displays, video door phones, and portable multimedia systems. Its moderate size, clear 800×480 resolution, and capacitive touch option make it ideal for user interfaces that require reliable visual performance and easy operation.
Our Advantage
1) Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
2) Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3) Payment Terms: T/T, Western Union.
4) Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5) Service: Best after-sales service to ensure satisfaction from customers.
6) Delivery: Goods will be delivered with 2-4 days by DHL, UPS, TNT, EMS, or By Air
7) Warranty: Usually, product warranty for one year.
8) Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
FAQ
Q: Are you a factory or trading company?
A: We are a OEM/ODM factory.
Q: What is the MOQ?
A: Generally if you choose the different products, our minimum order qty also will be different.
Q: What about the production time?
A: The LCD products need 5-6 weeks to be made after receive deposit.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
Q:Do you give any discount ?
A: I'll surely try my best to help you get those by the best price and good service at the same time.
