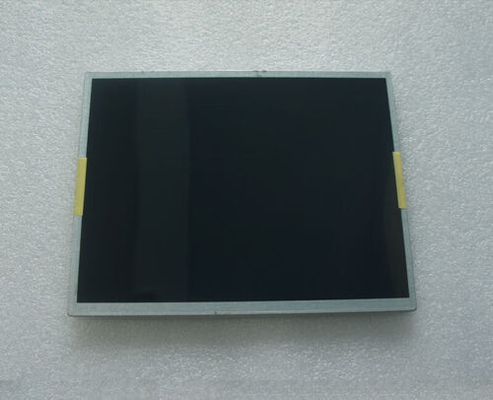

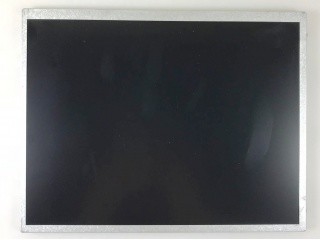

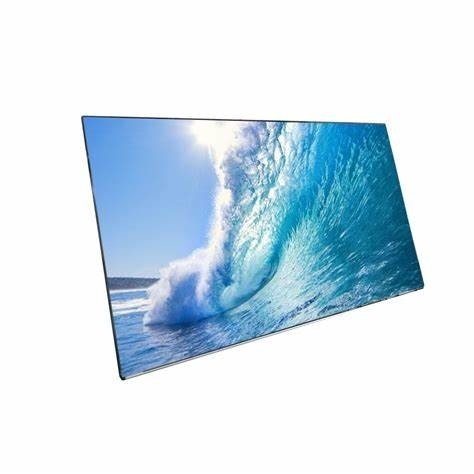

42.5'' TFT LCD Module 1920*1080 BOE DV430FHM-NN0 UHD TV Display Multimedia
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BOE |
| Certification: | SGS, ROHS |
| Model Number: | DV430fhm-Nn0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300K pcs/month |
|
Detail Information |
|||
| Color Temperature: | 9K To 11.5K | Color Gamut: | 72% |
|---|---|---|---|
| Contrast Ratio: | 1200:1 | Operating Temperature: | 0 To +50 Celsius Degree |
| Backlight: | E-LED Backlight | Life Time: | 30K |
| Highlight: | 42.5'' TFT LCD Module,DV430FHM-NN0 UHD TV Display,DV430FHM-NN0 |
||
Product Description
18.5'' TFT LCD Module Boe 1366*768 RGB DV185whm-Nm0 Lvds Display
Product Description
The BOE DV430FHM-NN0 TFT LCD is a specific display panel produced by BOE Technology Group Co., Ltd. Here are the specifications for this module:
- Screen Size: 43 inches
- Resolution: 1920x1080 pixels (Full HD)
- TFT LCD Technology: Thin-Film Transistor technology for improved image quality and faster response times.
- Color Support: Typically supports RGB (Red, Green, Blue) color input for a wide range of color reproduction.
- Interface: The module may have different interface options such as LVDS (Low-Voltage Differential Signaling) or eDP (Embedded DisplayPort), depending on the specific model.
Applications
Based on these specifications, the BOE DV430FHM-NN0 TFT LCD module is suitable for various applications that require a large-sized display with Full HD resolution. Here are some potential applications:
-
Digital Signage: The module can be integrated into digital signage displays for advertising, information display, or interactive touchscreens in public spaces, retail stores, airports, and other locations.
-
Video Walls: Multiple modules can be tiled together to create large-scale video walls for immersive visual experiences in retail, entertainment venues, or control rooms.
-
Television Sets: The module can be used in the manufacturing of large-screen television sets, providing a high-definition viewing experience for home entertainment.
-
Conference Room Displays: The module can be utilized in conference rooms or meeting spaces as a display for presentations, video conferencing, or collaborative work.
-
Gaming Monitors: The large size and high resolution make it suitable for gaming monitors, offering an immersive gaming experience with detailed visuals.
-
Control Room Displays: The module can be integrated into control room environments for monitoring critical systems, such as surveillance, process control, or network operations.
These are just a few examples of potential applications for the BOE DV430FHM-NN0 TFT LCD module. The actual usage may vary based on specific requirements and integration capabilities.
| Item | STANDARD Value |
| LCD size | 42.5 inch |
| Active area | 940.896(H) * 529.254(V) mm |
| Display mode | Transmission mode, Normally Black |
| Pixel Pitch | 163.35(H) * 490.05(V) mm |
| Viewing angle | full |
| Surface Treatment | Haze 1% |
| Pixel Arrangement | RGB vertical Stripe |
| Display Colors | 16.7 M(8bits True) |
| Top&Tst | 0 to +50 Celsius degree &-20 to 60 Celsius Degree |
| Dimensional Outline | 961.7(H)x550.1(V)* 11.7(B) mm |
| LED Life Time | 30,000 hrs |
