2.8'' IPS LCD Module 240*320 RGB Free View High Contrast Display custamizable
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS, ROHS |
| Model Number: | HXM028HDH07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | 2.99USD EXW |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300K pcs/month |
|
Detail Information |
|||
| LCD Size: | 2.83 Inch | Panel Type: | IPS |
|---|---|---|---|
| Resolution: | 240xrgbx320 | Display Mode: | Normally Black |
| Number Of Colors: | 262K | Contrast Ratio: | 1000 |
| Pixel Pitch: | 0.180*0.180 Mm | Driver IC: | St7789p3 |
| Interface: | 4-Wire Spi | Light Source: | 4 White LEDs |
| Highlight: | 2.8'' TFT LCD Module,240*320 TFT LCD Module,High Contrast TFT LCD Module |
||
Product Description

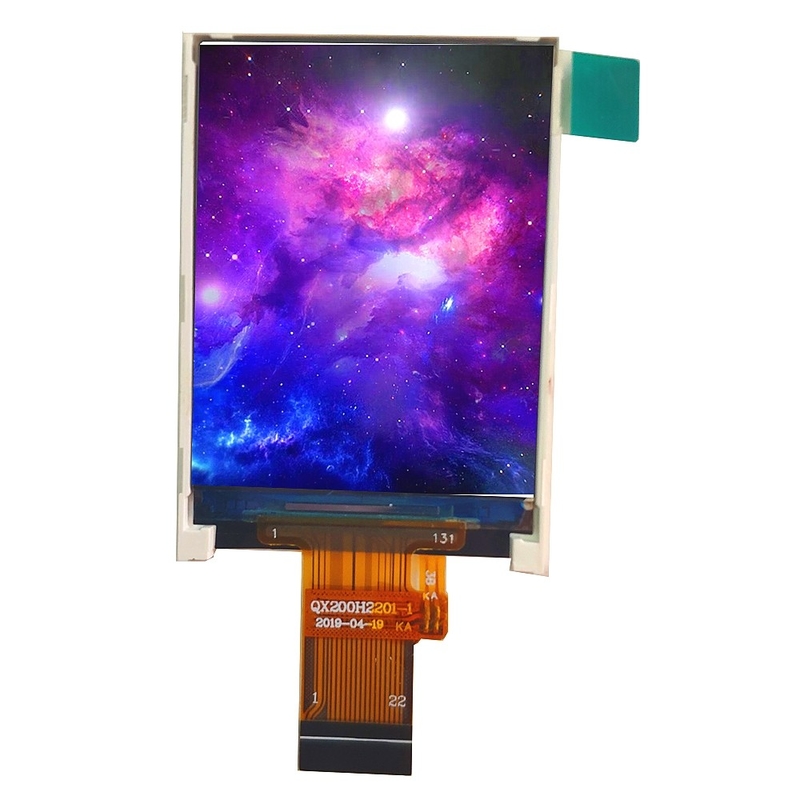

2.8'' IPS LCD Module 240*320 RGB Free View High Contrast Display
Product Description
- Size: The display size is 2.8 inches diagonally, which refers to the length of the visible screen area.
- Resolution: The module has a resolution of 240 pixels in width and 320 pixels in height. This means it can display 240 columns and 320 rows of pixels.
- Color Depth: The module supports a high color depth, typically 262,144 colors (commonly referred to as 262k colors or 18-bit color). This allows for a wide range of colors to be displayed on the screen, resulting in vibrant and accurate color representation.
- Viewing Angle: IPS technology provides a wide viewing angle, allowing the display to be viewed clearly from various angles without significant color distortion or loss of contrast.
- Contrast: The module offers high contrast, which means there is a clear distinction between dark and light areas on the screen. This enhances the readability and visual quality of the displayed content.
- Interface: The specific interface for this module is not mentioned in the description you provided. However, common interfaces for such modules include SPI, parallel, or I2C, depending on the specific controller used.

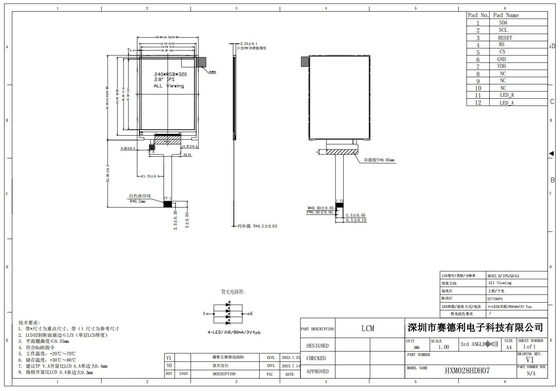

| ITEM | SPECIFICATION |
| Pixels | 240*320 RGB |
| LCD Type | IPS |
| Active Area | 43.2*57.6 |
| Module size | 50.0(H)*69.2(V)*2.25(D) |
| pixel pitch | 0.180*0.180 mm |
| Driver IC | ST7789P3 |
| Interface | 4-wire SPI |
| light source | 4 white leds |
| Wide range of operating temperature | -20 to +70 ºC |
| Wide range of Storage temperature | -30 to +80 ºC |
Applications
Overall, this 2.8" IPS LCD module is suitable for applications that require a relatively larger, high-resolution display with excellent color reproduction, wide viewing angles, and high contrast. It can be used in various devices, including portable electronics, embedded systems, handheld instruments, and other applications where visual quality and readability are important considerations.
