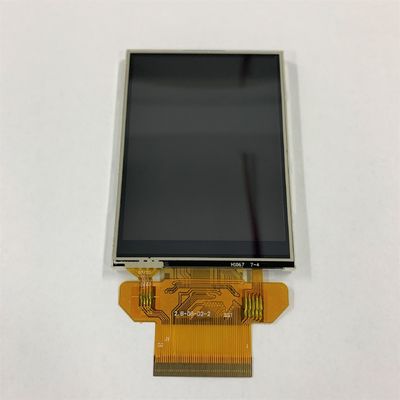

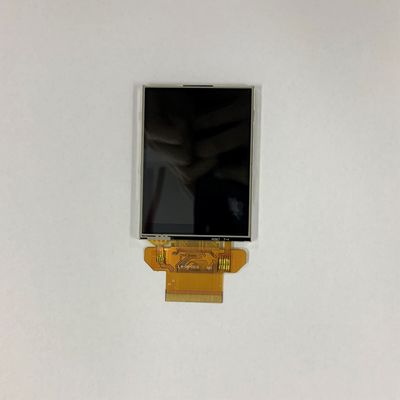

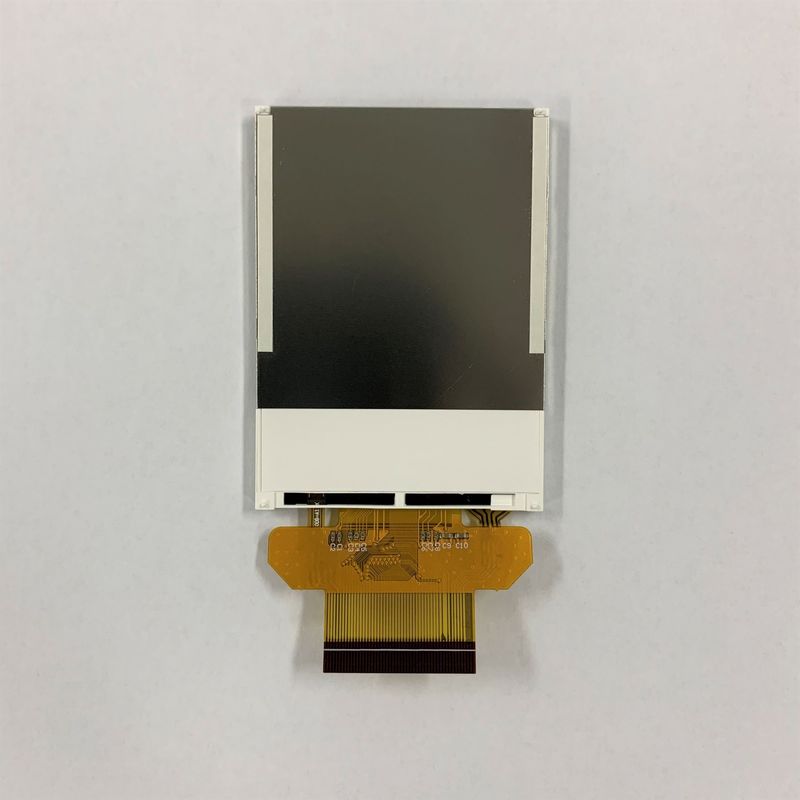

2.8 Inch 8 Wire CTP 240x320 TFT LCD Module 9341 IC with Touch Panel LVDS

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  2.8 Inch 8 Wire CTP 240x320 TFT LCD Module 9341 IC with Touch Panel LVDS

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYTPQ28NN08-02
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 4.88-6.78
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Supply Ability: 300K/M
Detailed Product Description
Product Type: TFT LCD Outline Dimension(mm): 50.2(W) X 69.3 (H) X 4.0 (D)
Drive IC: Ili9341V Display Type: TFT LCD
Resolution: 320X3(RGB)X240  Module Size: 50.2(W)X69.3(H)X4.9(D)
Active Area(mm): 43.2(H) X57.6 (V) Pixel Arrangement: RGB-Veritical Stripe
Tp: 8-Wire CTP
High Light:

8 Wire CTP TFT LCD Module

,

240x320 TFT LCD Module

,

9341 IC LCD Screen Display

2.8 Inch TFT Display | RYTPQ28NN08-02

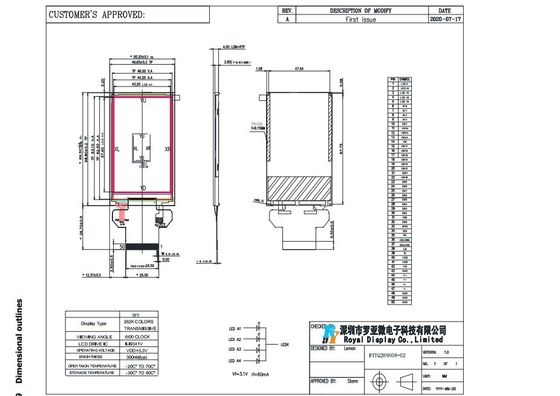

Module size: 50.2(W)x69.3(H)x4.9(D)

Driver: ILI9341V
LVDS, White LED backlight, IPS, Wide temp, Transmissive, Capacitive Touch Screen, HDMI connection, CTP Driver: ILI9341V RoHS Compliant

1. IPS or 12 o'clock display screen.
2. Customized :Logo,Touch Button,Silk-Printing,Mirror Cover Lens,Shape/Hole
3. Anti-Glare/Anti-Finger/ Anti-Reflective/Waterproof/Gloves Touch Available
4. Supply TFT/Touch Panel/touch display module(TFT+CTP)



WHAT CAN WE CUSTOM?



1.LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN

2.Display form: LCD panel/COB/COG/COF

3.Polarizer: Transflective, Transmissive, Reflective

4.Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others

5.Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others

6.Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC





OUR FACTORY



2.8 Inch 8 Wire CTP 240x320 TFT LCD Module 9341 IC with Touch Panel LVDS 0

2.8 Inch 8 Wire CTP 240x320 TFT LCD Module 9341 IC with Touch Panel LVDS 1





FEATURE



1. Low power consumption



2. High brightness and luminous intensity output



3. Easy assembly



4. High intensity and reliability



5. Low voltage and current operation



6. energy saving & long life



7. Solid-state LED chip based



8. Easy mounting on printed circuit board and sockets



9. Rhos&Reach approved



10. Better show effect and wide view angle



TFT LCDs

Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.



Features

Broad selection of off the shelf products

Sunlight readable options available

Capacitive and Resistive options available for every display

Most products are kept in stock and can ship same day

Multiple interfaces available

Customizable FPC cables, LED backlights, and bezels



APPLICATION

2.8 Inch 8 Wire CTP 240x320 TFT LCD Module 9341 IC with Touch Panel LVDS 2

2.8 Inch 8 Wire CTP 240x320 TFT LCD Module 9341 IC with Touch Panel LVDS 3
