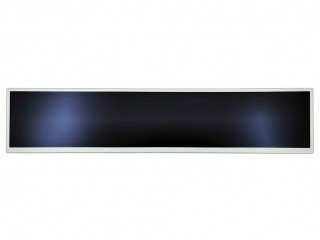

24'' BOE 1920RGB*360 Bar high contrast ratio TFT LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Certification: | SGS, ROHS |
| Model Number: | DV240FBM-NB0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 99 USD EXW negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50K pcs/month |
|
Detail Information |
|||
| Active Area: | 597.888*112.104 Mm | Pixels: | 1920*RGB*360 |
|---|---|---|---|
| Dimensional Outline: | 612.7*312.1*8.4 Mm | Weight: | 1210g |
| Luminance Contrast Ratio: | 1200 | Color Gamut: | 72 Percent |
| Highlight: | 24 TFT LCD Module,BOE TFT LCD Module,1920RGB*360 TFT LCD Module |
||
Product Description
24'' BOE 1920RGB*360 Bar high contrast ratio TFT LCD Module
Product Description
24" FHD(1920*360) is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 24 inch diagonally measured active area with WXGA resolutions (1920horizontal by 360 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.
| ITEM | SPECIFICATION |
| Pixels | 1920RGB*360 |
| LCD Type | TFT |
| Active Area | 24 inch |
| Interface | LVDS |
| Surface | Normal |
| Driver IC | TBD |
| Interface | LVDS |
| Wide range of operating temperature | 0 to +50 ºC |
| Wide range of Storage temperature | -20 to +60 ºC |
Product Applications
This type of display module is suitable for a wide range of applications, including:
- 1) Desktop Type of PC & Workstation Use2) Slim-Size Display for Stand-alone Monitor3) Display Terminals for Control System4) Monitors for Process Controller
