128 X 64 Graphic Lcd Display , Lcd Dot Matrix Display 5v Power Supply

128 X 64 Graphic Lcd Display , Lcd Dot Matrix Display 5v Power Supply
128 X 64 Graphic Lcd Display , Lcd Dot Matrix Display 5v Power Supply 128 X 64 Graphic Lcd Display , Lcd Dot Matrix Display 5v Power Supply

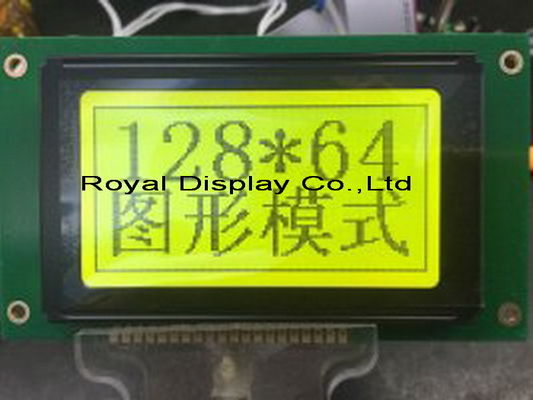

Large Image :  128 X 64 Graphic Lcd Display , Lcd Dot Matrix Display 5v Power Supply

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYB12864C
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 300k/Month
Detailed Product Description
Product Name: RYP12864C Graphic LCD Module FSTN Positive Black On White Or STN Blue White 240*128 Dots Model No.: RYP12864C
Dot Format: 128X64 Viewing Angle: 6 O' Clock
LED Backlight: White Controller: T6963C
Operating Temp: -20º C~70º C LCD Type: FSTN Postive STN Bule
Highlight:

Dot Matrix Lcd Display Module

,

Dot Matrix Lcd Module



Dot Matrix RYP12864C Graphic LCD Module FSTN Positive Black On White or STN Blue White 128*64 Dots



1. 128x64 dots,
2. Parallel interface
3. DC/DC on board, 5v power supply
4. STN-blue, FSTN-positive with white LED backlight
5. Compact structure, high reliable, pure new design
6. Touch panel optional

Item Description
Product Name 128x64 dots Graphic LCD Module
Model No. RYB12864C
Dot Format 128X64
Outline Dimension(mm) 90.0 x 73.0
Assem. Size(mm) 88 x 65
Viewing Area(mm) 73.7 x 38.8
Pixel Size( mm) 0.508 x 0.408
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Blue, STN-YG
Backlight White or Y/G LED backlight
Driver IC AT0107
Power supply  5V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C

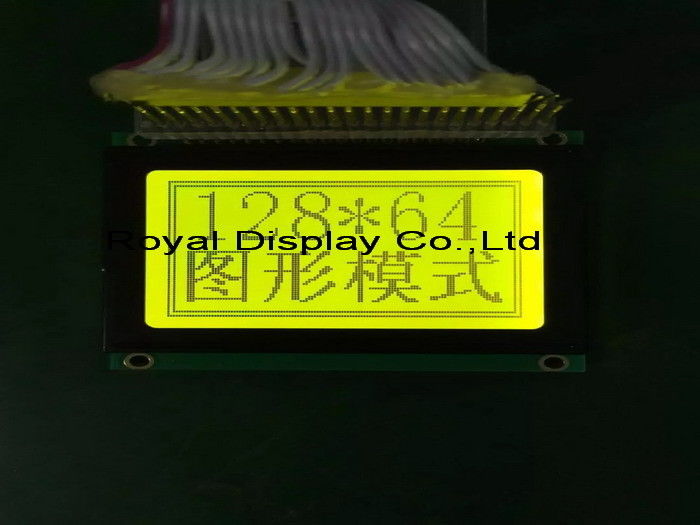

128 X 64 Graphic Lcd Display , Lcd Dot Matrix Display 5v Power Supply 0

Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range

128 X 64 Graphic Lcd Display , Lcd Dot Matrix Display 5v Power Supply 1
