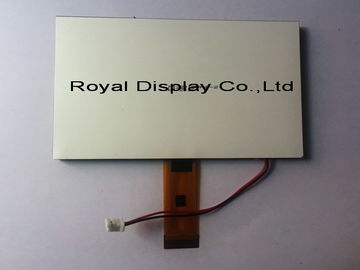

COG Lcd Screen Module 320X160 Dots , Reflective Lcd Display With UC1698

COG Lcd Screen Module 320X160 Dots , Reflective Lcd Display With UC1698
COG Lcd Screen Module 320X160 Dots , Reflective Lcd Display With UC1698 COG Lcd Screen Module 320X160 Dots , Reflective Lcd Display With UC1698 COG Lcd Screen Module 320X160 Dots , Reflective Lcd Display With UC1698

Large Image :  COG Lcd Screen Module 320X160 Dots , Reflective Lcd Display With UC1698

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG320160A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 300k/Month
Detailed Product Description
Product Name: RYG320160A Graphic COG LCD Module Model No.: RYG320160A
Dot Format: 320X160 Viewing Angle: 6 O' Clock
Operating Temp: -20º C~70º C LCD Type: FSTN Postive
Driver: UC1698
Highlight:

Cog Lcd Display

,

Tft Lcd Screen



Graphic COG LCD Module 320X160 Dots With UC1698 RYG320160A FSTN Positive Black On White

1. 320x160dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Item Description
Product Name 320*160 dots Graphic LCD Module
Model No. RYG320160A
Dot Format 320*160
Outline Dimension(mm) 104*64
Viewing Area(mm) 100*52
Pixel Size( mm) 0.275 x 0.29
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC UC1698
Power supply 3.3V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C



Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range



COG Lcd Screen Module 320X160 Dots , Reflective Lcd Display With UC1698 0

COG Lcd Screen Module 320X160 Dots , Reflective Lcd Display With UC1698 1
