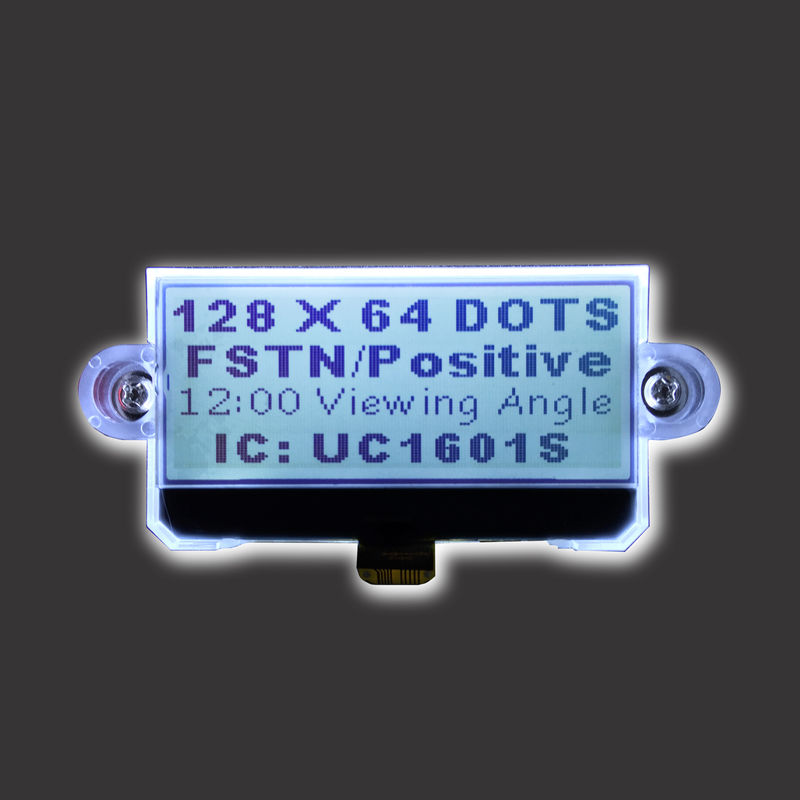

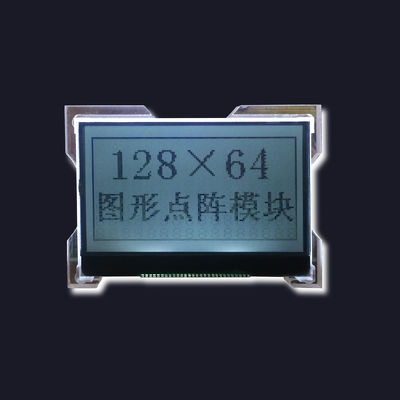

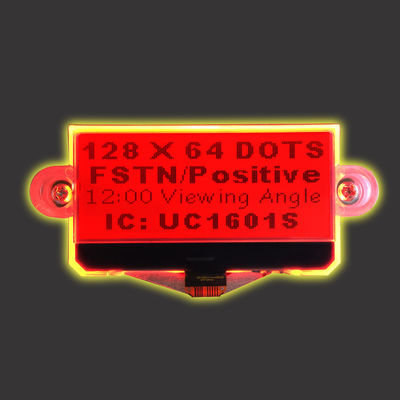

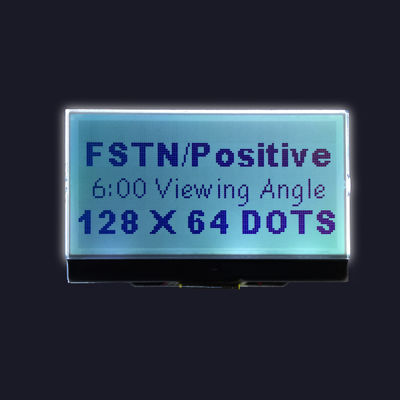

Green Color Lcd Screen COG LCD Module With 128 * 64 Pixels Resolution Mono Lcd Panel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYG12864L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 220pcs/CTN 11Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | L/C, T/T, , L/C, Western Union, MoneyGram |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| Product Name: | RYG12864M 3.3V Power Supply Dot Matrix Lcd Module With ST7565R 128X64 Dot AA=34.53*21.73mm | Model No.: | RYG12864L |
|---|---|---|---|
| Dot Format: | 128X64 | Viewing Angle: | 6 O' Clock |
| LED Backlight: | None | Driver IC: | ST7567 |
| Operating Temp: | -20º C~70º C | LCD Type: | FSTN OR STN |
| Highlight: | RYG12864L Mono COG LCD Module,5V FSTN COG LCD Module,RYG12864L Mono Lcd Panel |
||
Product Description
Green color lcd screen with 128 * 64 pixels resolution mono lcd panel
General Specifications
1. COG Graphic LCD Module
2. Dots Format, 128x64
3. Controller , ST7567 OR EQUIV
4. STN-Gray, Blue, DFSTN-Negative, FSTN-Postive
5. LED Back Light, White, Red, Amber
6. Widely Use On Hand-held Device
Display Specifications
| Item | Description |
| Product Name | 128x64dots Graphic LCD Module |
| Model No. | RYG12864M |
| Dot Format(dot) | 128x64 |
| Outline Dimension(mm) | 40.8x34.8 |
| VA Size(mm) | 37.7X25.1 |
| AA Size( mm) | 34.5x21.7 |
| Viewing Angle | 6 O' clock |
| LCD Mode | FSTN-Positive, STN-Blue, STN-YG |
| Backlight | White or Y/G LED backlight |
| Driver IC | ST7565R |
| Power supply | 3V or 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Transmissive, Transflective and Reflective Mode
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range
FAQ
Q1: How many years for warranty can you provide?
A1: Normally 1 year. Can be longer but price should be modified.
Q2: What shall we do if we find any item missing or defective after receiving the goods?
A2: Please contact us ASAP, we will check it and offer the best solution according to the situation.
Q3: Is it possible to customize the LCD modules?
A3: Yes you could let us know the concrete requirements then we will design and confirm with you.
Q4: Is it possible we appoint the delivery agent?
A4: Yes. Except the couriers we mentioned, we could use others as your requirement.
