Product Name: | COG Display 132 X 132(RYP13232AGFTWWN) | Model No.: | RYP13232AGFTWWN |
---|---|---|---|
Dot Format: | 132x32 | Viewing Angle: | 6 O' Clock |
LCD Type: | FSTN | LED Backlight: | White |
Driver IC: | ST7565R | Operating Temp: | -20º C~70º C |
Storage Temp: | -30º C~80º C | ||
Highlight: | Cog Lcd Display,Tft Lcd Screen |

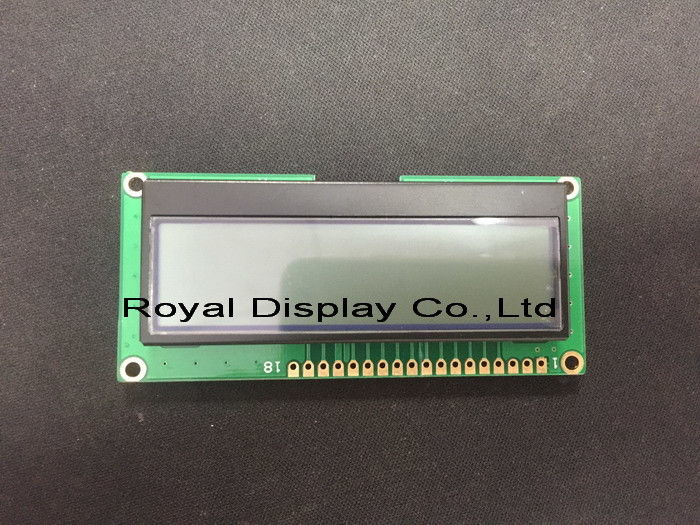

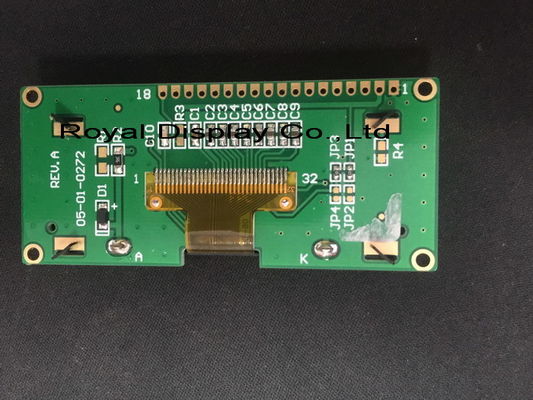

RYP13232AGFTWWN COG LCD Module FSTN Positve 132*32 dots , 3.3V Power supply With PCBA , Completely Replace LM13232ACW
PIN | SYMBOL |
1 | VSS |
2 | VDD |
3 | NC |
4 | A0 |
5 | NC |
6 | E |
7~14 | DB0~DB7 |
15 | BLA |
16 | /CS1 |
17 | P/S |
18 | /RES |
