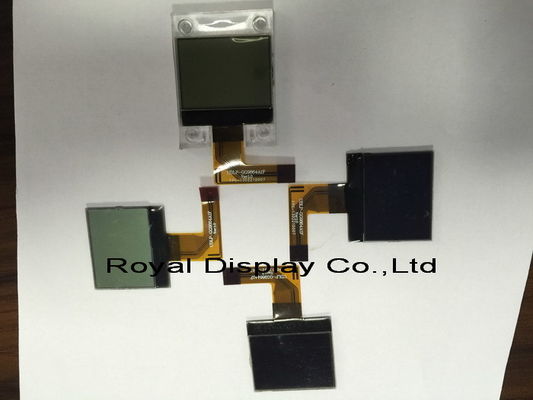

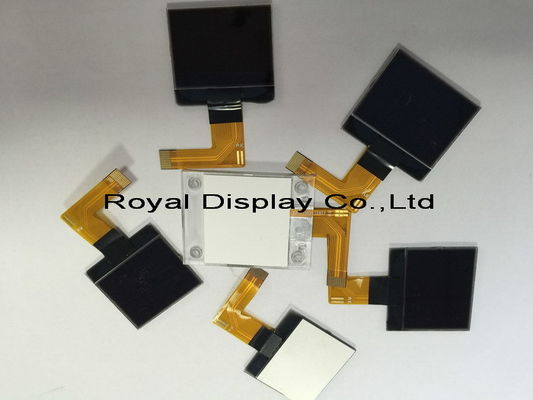

Electric Transflective Lcd Display , Monochrome Graphic Display High Reliability
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYG9864A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 420pcs/CTN 14Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| Product Name: | Electric Energy Meter COG LCD Module FSTN Transflective Positive RYG4729SM(st7025) | Model No.: | RYG9864A |
|---|---|---|---|
| Viewing Angle: | 12 O' Clock | LED Backlight: | White |
| Driver IC: | ST7567 | ||
| Highlight: | Reflective Lcd Display,Tft Lcd Screen |
||
Product Description
Electric Energy Meter COG LCD Module FSTN Transflective Positive RYG4729SM(st7025)
- COG LCD Module
- ICON
- Controller , ST7565 OR EQUIV
- STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
- LED Back Light , White , Red , Amber .
- Used for Electric Energy Meter
-
CN1 SYMBOL CN1 SYMBOL 1 /CS1 10 V0 2 /RST 11 XV0 3 A0 12 VG 4 SCL 13 A 5 SDA 14 K 6 VDD 7 VDD 8 VSS 9 VSS
Typical Applications:
Electric Energy Meter,Clusters, Car Radios, Air conditioner, Industrial Instruments,meter for measuring electricity, Price Tag, Printer, Fax, etc
Features:
Transmissive, Transflective and Reflective Mode
Duty Ratio: Up to 240
Wide Operation & Storage temperature range
High reliability
Low power consumption
