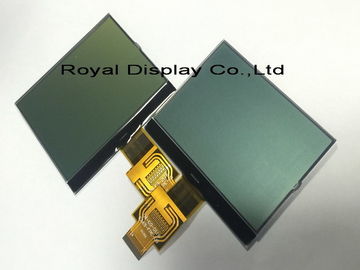

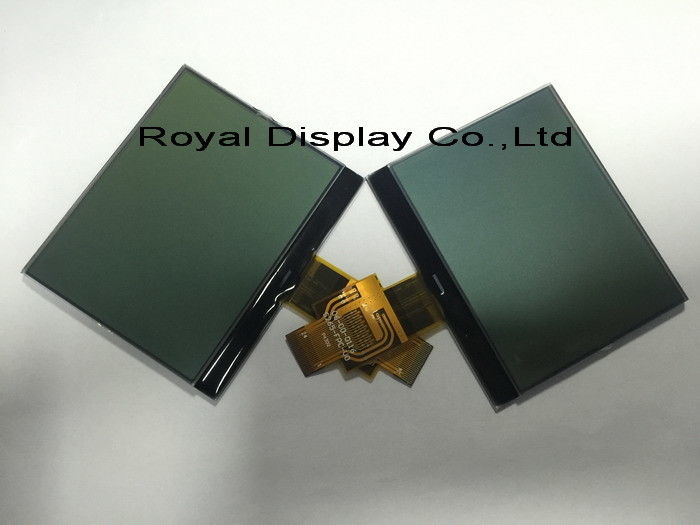

Electric Energy Meter Positive Lcd Display Module 12 O' Clock Viewing Angle

Electric Energy Meter Positive Lcd Display Module 12 O' Clock Viewing Angle
Electric Energy Meter Positive Lcd Display Module 12 O' Clock Viewing Angle Electric Energy Meter Positive Lcd Display Module 12 O' Clock Viewing Angle Electric Energy Meter Positive Lcd Display Module 12 O' Clock Viewing Angle

Large Image :  Electric Energy Meter Positive Lcd Display Module 12 O' Clock Viewing Angle

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG4729SM
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 420pcs/CTN 14Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 300k/Month
Detailed Product Description
Product Name: Electric Energy Meter COG LCD Module FSTN Transflective Positive RYG4729SM(st7025) Model No.: RYG4729SM
Viewing Angle: 12 O' Clock LED Backlight: White
Driver IC: ST7025
High Light:

Reflective Lcd Display

,

Tft Lcd Screen

Electric Energy Meter COG LCD Module FSTN Transflective Positive RYG4729SM(st7025)



  1. COG LCD Module
  2. ICON
  3. Controller , ST7025 OR EQUIV
  4. STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
  5. LED Back Light , White , Red , Amber .
  6. Used for Electric Energy Meter
  7. CN1 SYMBOL CN1 SYMBOL
    1 NC 16~18 VSS
    2~5 GND 19~21 V1~V3
    6 PWM 22 V0
    7 /RST 23 CAP1N
    8 /CS 24~25 CAP1P~2P
    9 SCK 26 CAP2N
    10 SDA 27~28 VLCD
    11~12 VD1 29~32 GND
    13~15

    VDD

    33 NC

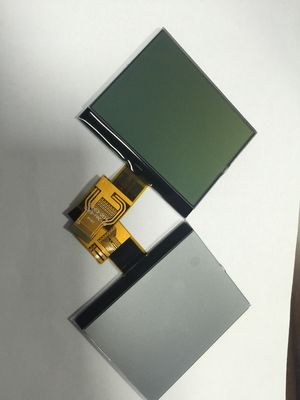

    Electric Energy Meter Positive Lcd Display Module 12 O' Clock Viewing Angle 0

Typical Applications:

Electric Energy Meter,Clusters, Car Radios, Air conditioner, Industrial Instruments,meter for measuring electricity, Price Tag, Printer, Fax, etc



Features:

Transmissive, Transflective and Reflective Mode

Duty Ratio: 1:1 to 1:9

Wide Operation & Storage temperature range

High reliability

Low power consumption
