3.3V Power Supply COG LCD Module STN Positve 128*128 Dots NT7541 Driver
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYG128128A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 180pcs/CTN 9.5Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Supply Ability: | 500k/Month |
|
Detail Information |
|||
| Product Name: | COG Display 128 X 128(RYG128128A) | Model No.: | RYG128128A |
|---|---|---|---|

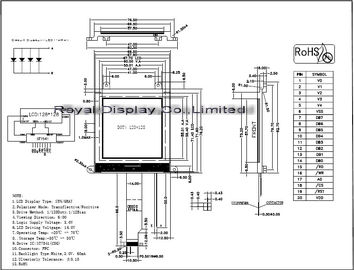

| Dot Format: | 128x128 | Outline (mm): | 69.5*76.2*8.0 |
| Viewing Area(mm): | 60.0x58.4 | Dot Size( Mm): | 0.40x0.40 |
| Viewing Angle: | 6 O' Clock | LCD Type: | STN-Gray |
| LED Backlight: | White | Driver IC: | NT7541 |
| Operating Temp: | -20º C~70º C | Storage Temp: | -30º C~80º C |
| Highlight: | Reflective Lcd Display,Tft Lcd Screen |
||
Product Description

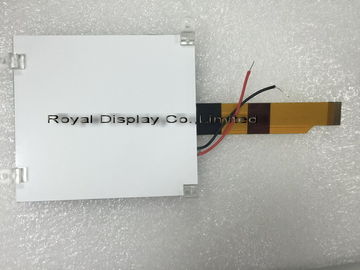

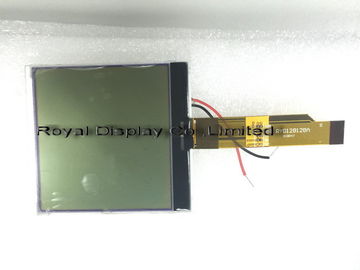

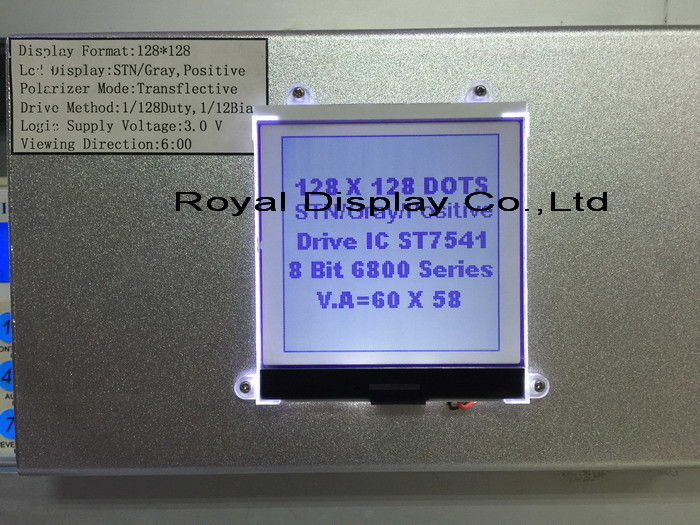

RYG128128A COG LCD Module STN Positve 128*128 dots , 3.3V Power supply
- COG LCD Module
- Dots Format , 128x128
- Controller , NT7541 OR EQUIV
- STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
- Widely Use On Hand-held Device
-
PIN SYMBOL 1~5 VO~V4 6 VSS 7~14 DB7~DB0 15 /RD 16 /WR 17 A0 18 /CS 19 /RST 20 VDD
