Product Details:
Payment & Shipping Terms:
|
| Tube Chip Color: | Full Color | Color: | Red,blue,green,yellow,white,orange |
|---|---|---|---|
| Screen Dimension: | Custom Made | Application: | Electronic Appliance |
| Model Number: | Customize | Usage: | Air Conditioning/washing Machine/rice Cooker/amplifier |
| High Light: | LED Segment Display ISO,Numeric LED Segment Display |
||

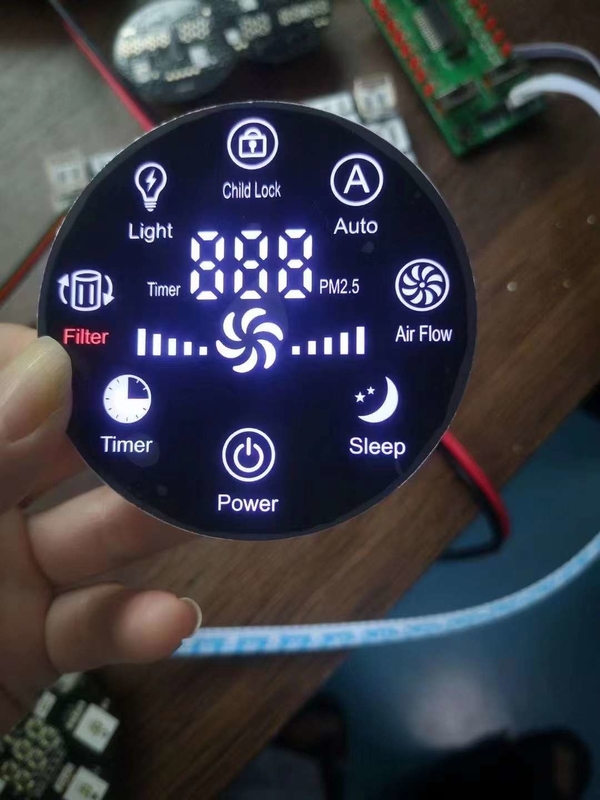

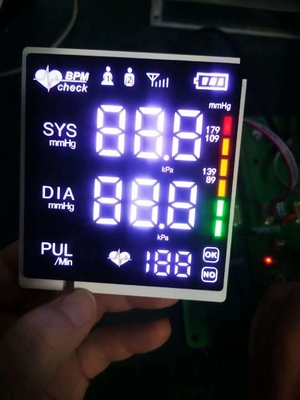

Multi Color Custom 7segment Led Display Seven Segment Led Display Numeric
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+120 | ℃ |
| Storage Temperature Range | Tstg | -40~+120 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25℃
Application for custom led display
7 segment digit led number display and 7 segment color led display products are widely used in various terminal equipment, including testing and measuring equipment, sales terminals, telecommunications systems, household appliances, office equipment, consumer electronics and medical equipment, etc.
FAQ
Q: Can we customize product? What cost will be included?
A: The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.
Q: What is your delivery method?
A: EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
Q: What kind of packaging? The transport process will not be damaged?
A: Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
