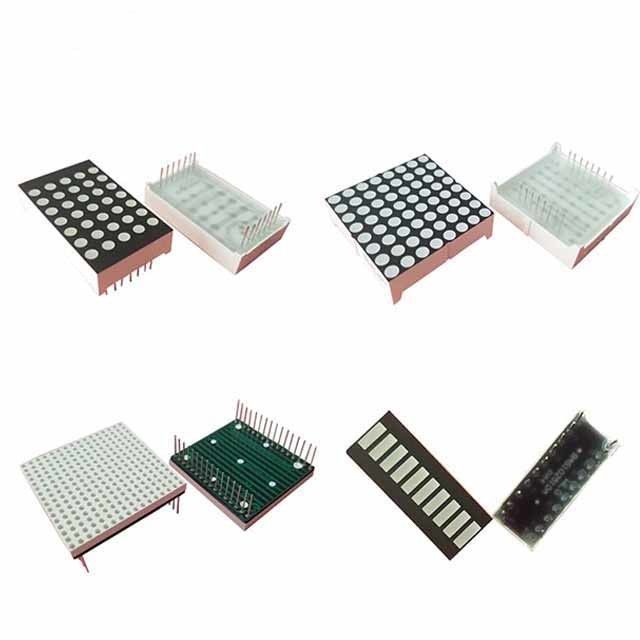

Custom LED 7 segment full color digital display smd module manufacturer

Custom LED 7 segment full color digital display smd module manufacturer
Custom LED 7 segment full color digital display smd module manufacturer

Large Image :  Custom LED 7 segment full color digital display smd module manufacturer

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYS5226W
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15~25 working days
Supply Ability: 1000K pieces/Month
Detailed Product Description
Size: 0.28''~4'' Tube Chip Color: Full Color
Display Function: Graphics Pixels: 10mm
Surface Color: Black Or Grey Color Polarity: Common Anode
Digits: 1 To 6 Color: Red, Green, Blue, Yellow, Orange...



Detail Information
Size: 0.28''~4'' Tube Chip Color: Full Color
Display Function: Graphics Pixels: 10mm
Surface Color: Black Or Grey Color Polarity: Common Anode
Digits: 1 To 6 Color: Red, Green, Blue, Yellow,



OUR SERVICE ADVANTAGES


1. Small order would be accepted.



2. Mass production lead time would be guaranteed.



3. Each order will have 0.2%-0.5% spare.



4. Even customers do not have a cooperation with us, we also can provide technical services.



5. If mass production has any quality problem, customer can return it.





Custom display

Custom LED 7 segment full color digital display smd module manufacturer 0





7 segment LED Display Series-More Choices for Your Purchase



Size Digit Digit Height Polarity Color Face
0.28" LED DISPLAY one 7.0mm CC/CA R,G,B,Y,W Black/Grey
0.3" LED DISPLAY one 7.8mm CC/CA R,G,B,Y,W Black/Grey
0.36" LED DISPLAY one 9.1mm CC/CA R,G,B,Y,W Black/Grey
0.39" LED DISPLAY one 9.9mm CC/CA R,G,B,Y,W Black/Grey
0.56" LED DISPLAY one 14.2mm CC/CA R,G,B,Y,W Black/Grey
0.8" LED DISPLAY one 20.4mm CC/CA R,G,B,Y,W Black/Grey
1.2" LED DISPLAY one 30.6mm CC/CA R,G,B,Y,W Black/Grey
1.5" LED DISPLAY one 38.1mm CC/CA R,G,B,Y,W Black/Grey
2.3" LED DISPLAY one 56.8mm CC/CA R,G,B,Y,W Black/Grey
3.0" LED DISPLAY one 75.0mm CC/CA R,G,B,Y,W Black/Grey
4.0" LED DISPLAY one 101.6mm CC/CA R,G,B,Y,W Black/Grey





Segment Liquid Crystal Displays

Segment LCDs, also called static displays or glass-only displays, are constructed of two pieces of ITO (Indium tin oxide) glass with a twisted nematic fluid sandwiched in between. A static display is a segment display with one pin for every one segment.



These displays are still one of the most popular technologies in use and the majority of them are custom. Many people think the process of designing a custom segment liquid crystal display is complicated and too complex to be understood except for a few experienced people. But after designing custom LCDs for over 14 years, it can be said that just about anyone can select the best options for their product.



In other words, you don’t have to be an engineer, or have a PHD from MIT to design a custom LCD for your application. So instead of offering a list of technical terms and equations, these are the different options available.



What Are The Advantages Of Segment Displays?

Although Segment displays are an older technology, it is still one of the most popular. After all, they cannot display all the colors of a TFT or OLED like what can be seen on a cell phone and tablet.



Why?

Below are key reasons why people keep designing these LCD displays into new products.

Lowest Piece Price
The unit price of a segment display can range from less than $0.50/piece to $15/piece depending on quantity, size of glass, and other variables.

Lowest Tooling Fee
The tooling fee for a custom display is the lowest of all the technologies and allows the customer to receive a LCD that is manufactured to the exact dimensions requested, including custom icons and segments.

Focus LCDs offers a one-time NRE (Non-recurring engineering) or tooling fee. This includes all design, technical support, and samples. A PDF showing an overview of our tooling process can be found by clicking here: Custom LCD Flowchart

Low Power Consumption
Segment displays require less power than other display technology such as TFT, OLED, and UWVD. This makes these LCDs ideal for applications that are battery powered or solar powered. They require the lowest power to drive, an estimated 2uA per centimeter squared. Glass only displays (no backlight and no controller) require an estimated 10% of the power that is required for a LED backlight. In other words, a static display without a backlight will draw around 1mA; the same display with a LED backlight will demand from 10mA up to 25mA. Most displays can be driven at 3.3V or 5V since microprocessors can operate at both voltages. 3.3V is becoming more popular since two double ‘AA’ batteries can produce between 3.0V and 3.3V.







Custom LED 7 segment full color digital display smd module manufacturer 1
