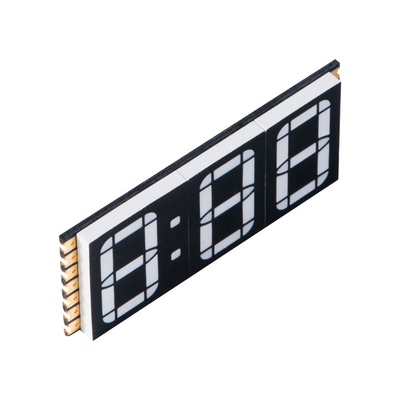

1 2 3 4 5 6 Digital 7 Segment LED Display Matrix Full Color Customized

1 2 3 4 5 6 Digital 7 Segment LED Display Matrix Full Color Customized
1 2 3 4 5 6 Digital 7 Segment LED Display Matrix Full Color Customized 1 2 3 4 5 6 Digital 7 Segment LED Display Matrix Full Color Customized

Large Image :  1 2 3 4 5 6 Digital 7 Segment LED Display Matrix Full Color Customized

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYS035698
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15~25 working days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 1000K pieces/Month
Detailed Product Description
Application: All Kinds Controller Panel Size: Customized Design
Color: Full Color Pixel Pitch: Standard
Usage: Indoor Surface Color: Black /Grey
High Light:

Customized 7 Segment LED Display

,

Matrix 7 Segment LED Display

,

Customized Segment Matrix Led Display

Customized 1 2 3 4 5 6 Digital 7 Segment Matrix Led Display



Customized digital 7segment led display description



If the circuit cannot meet your need, pls advise me for other choices. Thank you.



Dimension Customized Design
Surface Color Black/Grey
Emitting Color Optional
Luminous Intensity 110-130mcd





1 2 3 4 5 6 Digital 7 Segment LED Display Matrix Full Color Customized 0









Emitting Color



Test Condition

Wavelength(nm) Forward Voltage(V) Luminous Intensity (mcd)
(λp) λ Typ Max Typ Max
Amber IF=10-15mA 600-605 30 1.9 2.0 90 100
Super green IF=10-15mA 565-575 30 1.9 2.0 48 55
Super red IF=10-15mA 620-625 20 1.8 2.0 110 130
Ultra red 1 IF=10-15mA 620-625 20 1.8 2.0 200 210
Ultra red 2 IF=10-15mA 620-625 20 1.8 2.0 300 350
High red IF=10-15mA 638-660 20 1.8 1.9 15 20
Yellow green IF=10-15mA 570-580 30 1.9 2.0 43 50
Yellow IF=10-15mA 580-600 35 1.9 2.0 70 80
Blue IF=10-15mA 465-475 40 2.95 3.0 150 200
Pure green IF=10-15mA 515-525 40 2.95 3.0 180 250
White IF=10-15mA - - 2.8 2.9 180 200







APPLICATION



1 2 3 4 5 6 Digital 7 Segment LED Display Matrix Full Color Customized 1

FAQ



Q:Can I get a sample?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.


Q: How do you ship the goods and how long does it take arrive?
A: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side;For saving the cost, we recommend the way of prepaid instead of collect.)



Q:What can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your
email so that we will regard you inquiry priority.

Q:What is your term of delivery?
A:You can choosethe one which is the most convenient or cost effective for you.

Q:What about the lead time for the mass production?
A:Honestly, it depends on the order quantity and the season you place the order.



1 2 3 4 5 6 Digital 7 Segment LED Display Matrix Full Color Customized 2
