Product Details:
Payment & Shipping Terms:
|
| Size: | 0.28''~4'' | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Graphics | Pixels: | 10mm |
| Polarity: | Common Anode | Surface Color: | Black Or Grey Color |
| Digits: | 1 To 6 | Color: | Red, Green, Blue, Yellow, Orange... |
| High Light: | Common Anode Seven Segment Display,Oven Timer Seven Segment Display,FND Common Anode Seven Segment Display |
||

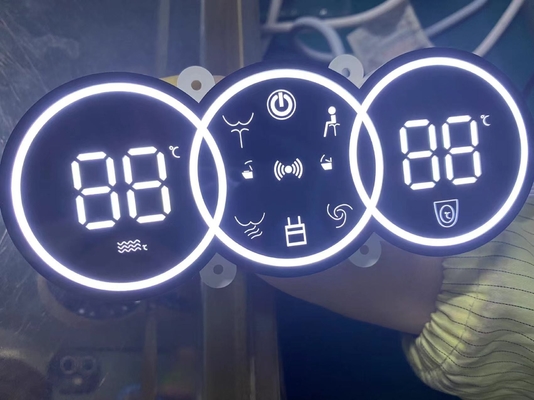

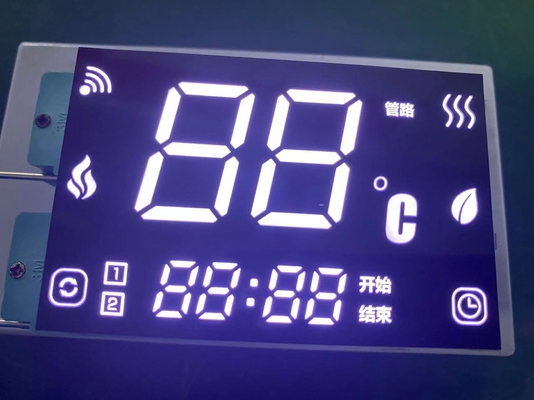

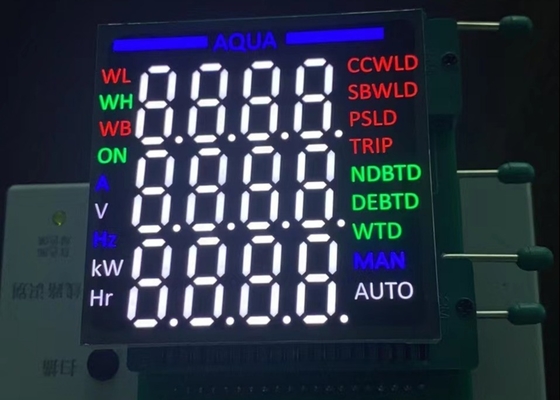

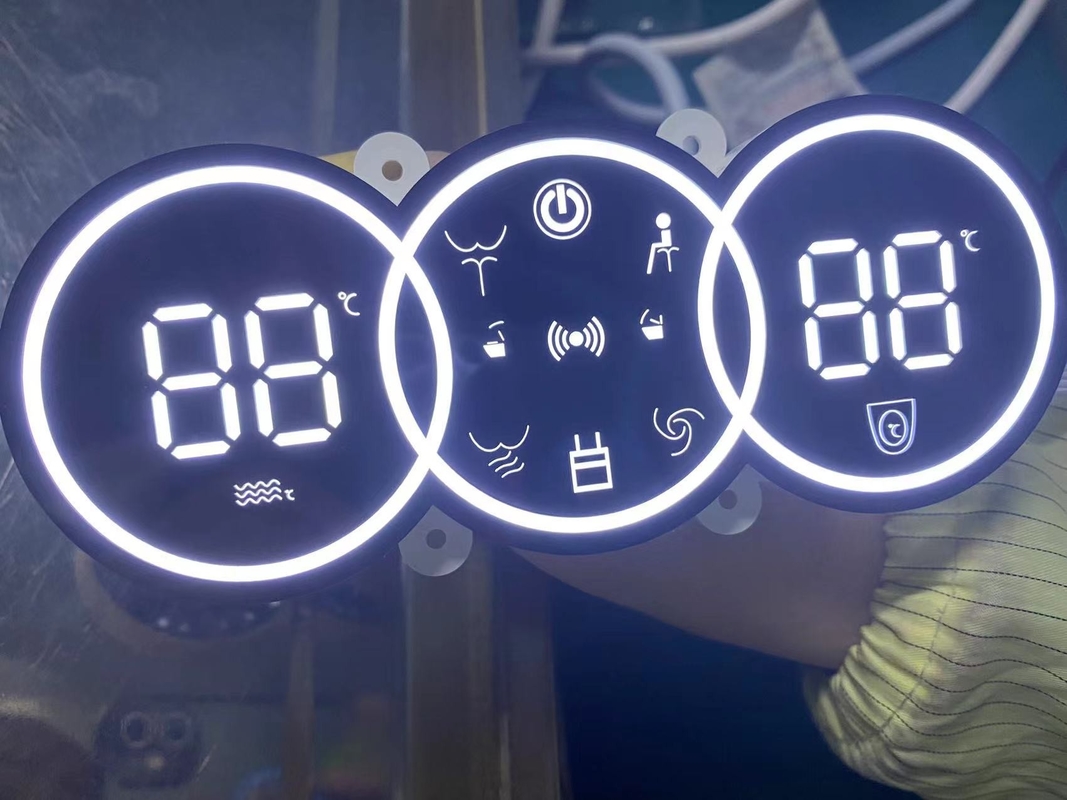

Customized 4 digit FND LED 7 segment display For Digital Oven Timer
Code:Ultra Bright Blue
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 2.8 | 3.3 | V | |
| Reverse Voltage | Vr | Ir=10uA | 30 | V | ||
| Luminous Intensty | Iv | If=20mA | 30 | mcd | ||
| Spectrum With Of Half Value | △λ | If=20mA | 30 | nm | ||
| Wavelength | Dλ | If=20mA | 473 |
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+120 | ºC |
| Storage Temperature Range | Tstg | -40~+120 | ºC |
| Solder Temperature(3 sec) | Th | 260 | ºC |
Overview
1. We can supply you all kinds of 7 segment LED display:
---Digit size: from 0.25" to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment and 16 segment both available
3. Available Emitting color: Super green,Super red, Yellow green, Pure green, Yellow, Blue, White RGB and bi-color
4. Available surface color: black,grey or red
5. Lens color: white or same as emitting color
ADVANTAGE OF 7 SEGMENT LED DISPLAY
1. Emitte lights under the condition of low voltage and small current drive; can be compatible with CMOS, ITL circuit;
2. Short response time when emitt lights (<0.1uS), excellent monochromaticity and high-frequency, big viewing angle, standard brightness, low power consumption, stable performance;
3. Prompt reply your inquiry within 24 Hrs;
4. Professional first class staffs answering your demands very smoothly;
5. Whatever big or small order, we will serve you with our best quality and superior service;
6. 100% QC inspection before shipping;
7. TUV listed meterials, Competitive price;
FAQ
1.Is your parts new ?
Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.
2.What is your warranty?
Answer: Within one year after package have been received.
3. Quality problems
Answer: If there is any quality problem or question, we could offer technical support or return service.
4.What is your lead time?
Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.
5.How to pay the order?
Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.
6. May I have a sample for testing?
Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
