Customize 4 Digit 7 Segment LED Display Blue Color Common Anode For Smart Toilet

Customize 4 Digit 7 Segment LED Display Blue Color Common Anode For Smart Toilet
Customize 4 Digit 7 Segment LED Display Blue Color Common Anode For Smart Toilet

Large Image :  Customize 4 Digit 7 Segment LED Display Blue Color Common Anode For Smart Toilet

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYL4028
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15~25 working days
Supply Ability: 1000K pieces/Month
Detailed Product Description
Size: 0.28''~4'' Tube Chip Color: Full Color
Display Function: Graphics Pixels: 10mm
Surface Color: Black Or Grey Color Polarity: Common Anode
Digits: 1 To 6 Color: Red, Green, Blue, Yellow, Orange...
High Light:

10mm Pixels 7 segment LED Display

,

Smart Toilet 7 segment LED Display

,

ROHS 4 Digit 7 Segment LED Display

Customize 4 Digit 7segment LED Display Blue Color Common Anode For Smart Toilet



Quick Detail of 7 segment LED display

A 7 Segment LED Display is a electronic device that contains an array of 8 individual LEDs.



Each of the 8 segments that make up the display can be either be on the on state or the off state. Depending on which LEDs are lit determines the character which is displayed on the LED. The LED can be made to show a wide range of characters, including all numerical digits from 0-9.

The versatility of a 7 segment display lies in the fact that it can be a numerical value indicator. LED displays are used in all types of products, including alarm clocks, scoreboards, and all other signs showing character output.

Specification of 4 Digit 7 segment LED Display
Code:Ultra Bright Blue

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.8   3.3 V
Reverse Voltage Vr Ir=10uA 30     V
Luminous Intensty Iv If=20mA   30   mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength If=20mA   473



Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120 ºC
Storage Temperature Range Tstg -40~+120 ºC
Solder Temperature(3 sec) Th 260 ºC

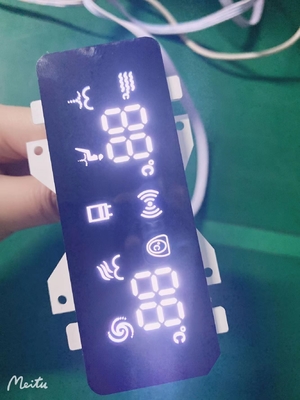

Customize 4 Digit 7 Segment LED Display Blue Color Common Anode For Smart Toilet 0

More information About
Digit Number LED Display
1. We can supply you all kinds of 7 segment LED display:
---Digit size: from 0.25" to 16"
---Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment and 16 segment both available
3. Available Emitting color: Super green,Super red, Yellow green, Pure green, Yellow, Blue, White RGB and bi-color
4. Available surface color: black,grey or red
5. Lens color: white or same as emitting color

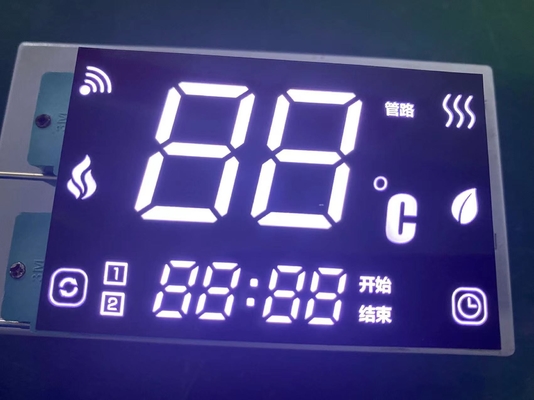

Customize 4 Digit 7 Segment LED Display Blue Color Common Anode For Smart Toilet 1


Advantages of seven segment LED display
1. Emitte lights under the condition of low voltage and small current drive; can be compatible with CMOS, ITL circuit;

2. Short response time when emitt lights (<0.1uS), excellent monochromaticity and high-frequency, big viewing angle, standard brightness, low power consumption, stable performance;

3. Prompt reply your inquiry within 24 Hrs;

4. Professional first class staffs answering your demands very smoothly;

5. Whatever big or small order, we will serve you with our best quality and superior service;

6. 100% QC inspection before shipping;

7. TUV listed meterials, Competitive price;

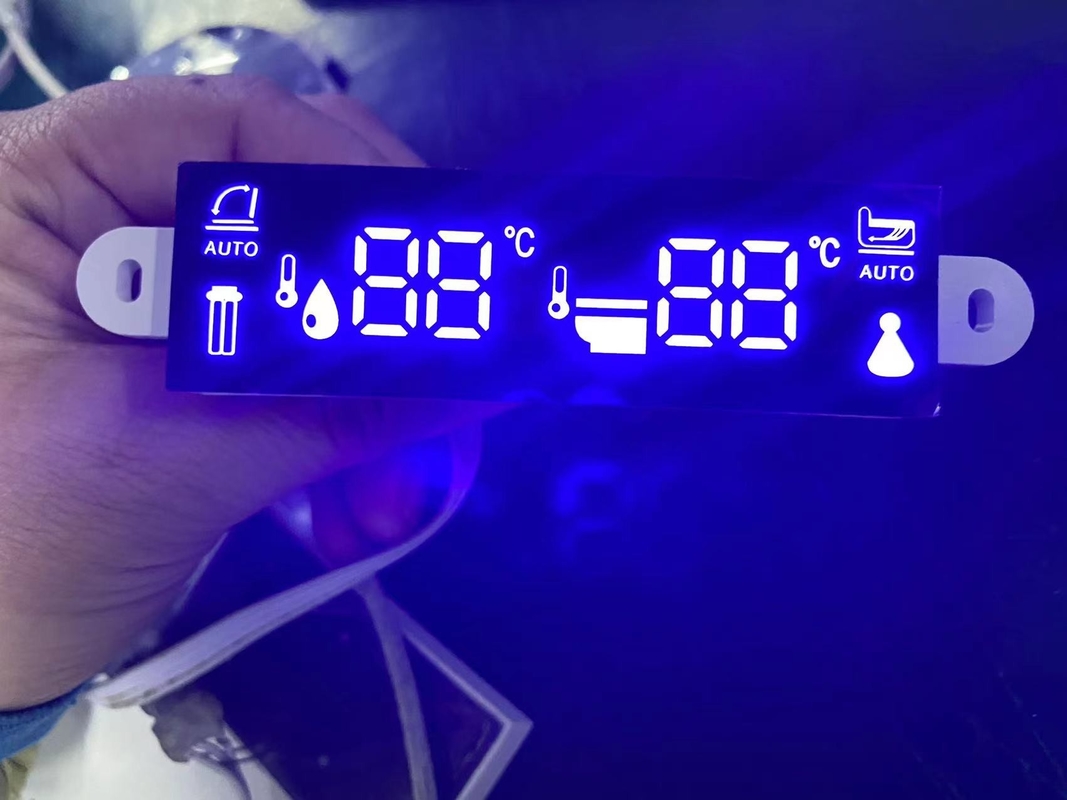

Customize 4 Digit 7 Segment LED Display Blue Color Common Anode For Smart Toilet 2



FAQ About Digital Number LED Display
Q1. Can I have a sample order for your products?

A: For standard type,Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-7 days, mass production time needs 1-3 weeks .

Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 1pc for sample checking is available for most types.



Q4. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q5. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity.

For defective batch products, we will resend them to you or we can discuss the solution including re-call according to real situation.
