192X80 FSTN Dot Matrix LCD Transflective Positive 90mA Backlight
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ISO Rohs |
| Model Number: | RYP19280A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Packaging |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| LCD Display Type: | FSTN, Transflective, Positive | DOT Format: | 192X80 |
|---|---|---|---|
| Driver Method: | 1/128 Duty 1/12bias | Backlight: | White Vf=3.3v,If=90mA |
| Operating Temp: | -40º C~70ºC | Storage Temp: | -40º C~80ºC |
| Highlight: | 192X80 FSTN Dot Matrix LCD,Transflective Positive Dot Matrix LCD,90mA Backlight LCD Display Module |
||
Product Description

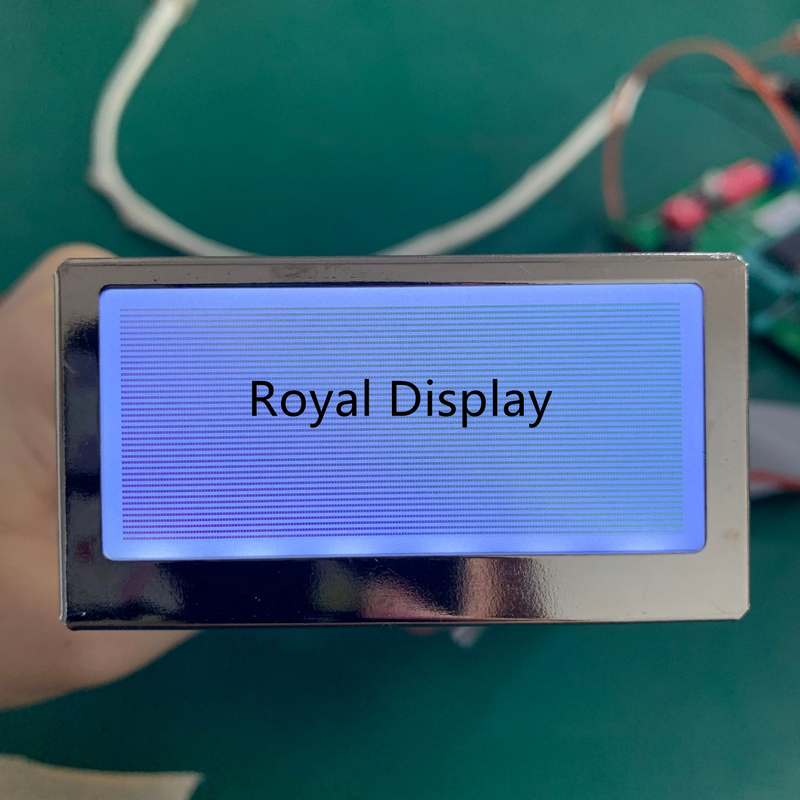

192X80 FSTN Dot Matrix Transflective Positive LCD Display Module
PRODUCT DESCRIPTION
| Item | Description |
| LCD Type | FSTN |
| Model No. | RYP19280A |
| Module Size(mm) | 63.90(L)X34.25(W)X13.40(T) |
| Active Area(mm) | 51.82(L)X21.58(W) |
| Drive Method | 1/128 duty 1/12bias |
| Backlight | White Vf=3.3v,If=90mA |
| Operating Temp | -40º C~70ºC |
| Storage Temp | -40º C~80º C |
