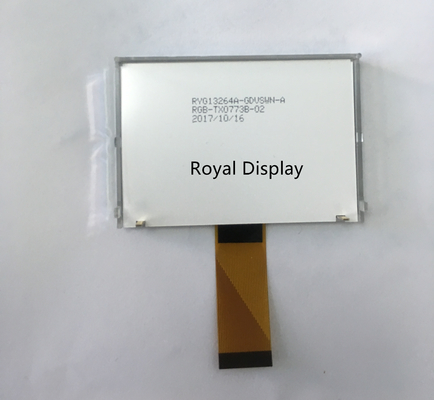

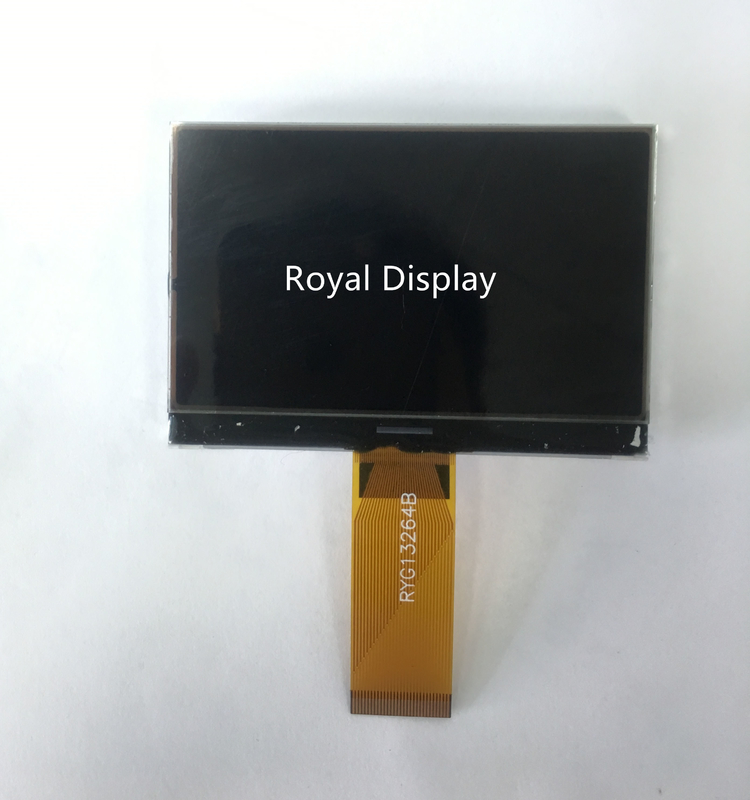

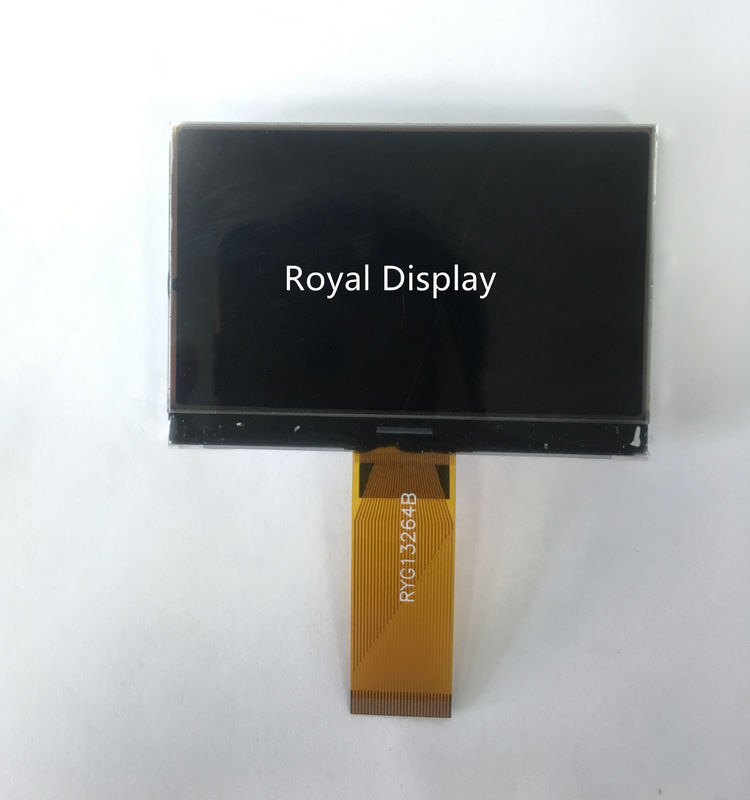

132×64 Dots Graphic Cog LCD Monitor Dfstn 30 Pin Negative LCD Display
Product Details:
| Place of Origin: | China |
| Brand Name: | ROHS |
| Certification: | RoHS, ISO |
| Model Number: | RYG13264B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister TrayFuel Dispenser LCD 22 digital 7 segment LCD display module PRODUCT DESCRIPTION |
| Delivery Time: | 20-25 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30k/Month |
|
Detail Information |
|||
| LCD Display Type: | Dfstn | Polarzier Mode: | Transmissive,Negative |
|---|---|---|---|
| Backlight: | Blue | LCD Supply Voltage: | 3.0V |
| LCD Driving Voltage: | 10.5V | Viewing Direction: | 12 O'clock |
| Drive Method: | 1/66duty 1/9bias | Drive IC: | Nt7534 |
| Highlight: | Graphic Cog LCD Monitor,132×64 Dots Cog LCD Monitor,Dfstn Negative LCD Display |
||
Product Description
Dfstn132*64dots Graphic Cog LCD Monitor 30pin Negative LCD Display with Backlight
PRODUCT DESCRIPTION
| Item | Description |
| Product Name | Dfstn132*64dots LCD Monitor 30pin Negative |
| Model No. | RYG13264B |
| Dot Format | 132X64 |
| Viewing Angle | 12 O' clock |
| LCD Type | DFSTN |
| Polarizer Mode | Transmissive,Negative |
| Driver IC | NT7534 |
| Dot Pitch(mm) | 0.59(W)*0.49(H) |
| Dot Size(mm) | 0.56(W)*0.47(H) |
| LCD Supply Voltage | 3.0V |
| LCD Driving Voltage | 10.5V |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
FEATURES
1. Low power consumption
2. High brightness and luminous intensity output
3. Easy assembly
4. High intensity and reliability
5. Low voltage and current operation
6. energy saving & long life
7. Solid-state LED chip based
8. Easy mounting on printed circuit board and sockets
9. Rhos&Reach approved
10. Better show effect and wide view angle
