160X160 COG Graphic LCD Module Mono Parallel FPC STN For Industy
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal Diaplay |
| Certification: | Rohs,ISO9001 |
| Model Number: | RA8835 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Ba |
| Delivery Time: | 20-28 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| LCD Type: | STN | LCD Duty: | 1/32 |
|---|---|---|---|
| LCD Bias: | 1/9 | Viewing Direction: | 12 O'clock |
| Driving Voltage: | 11.5V | Polarsize Mode: | Transflective,Positive |
| Highlight: | Mono Parallel Graphic LCD Module,160X160 COG Graphic LCD Module,FPC STN COG LCD Display |
||
Product Description

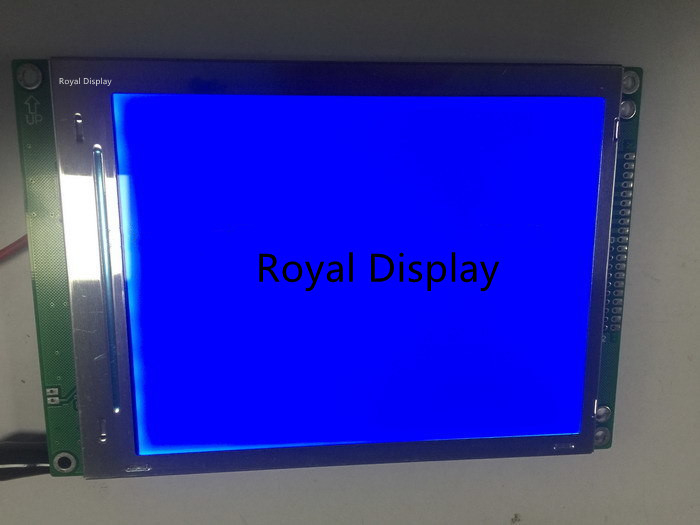

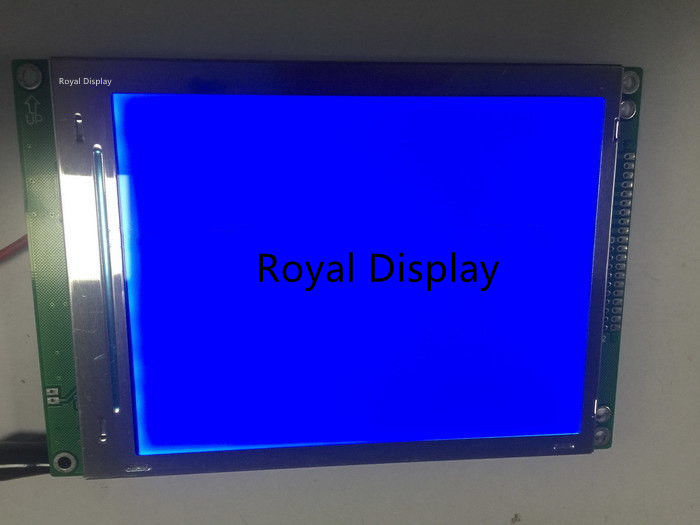

160X160 STN Blue COG Graphic LCD Module Custom Design Mono For Industy
PIN
| 1 | VSS | Ground |
| 2 | A0 | Data/ Instruction select signal |
| 3 | WR | Data write. Write data into LCD Controller |
| 4 | RD | Data read. Read data from LCD Controller |
| 5 | XCS | Chip select input pins |
| 6 | RST | Controller reset signal, Active Low |
| 7 | VDD | Power supply for logic |
| 8~15 | DB0~DB7 | Data bus line |
| 16 | LED- | Power supply for B/L - |
| 17 | NC | No connection |
| 18 | LED+ | Power supply for B/L + |
Our Service Advantages
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/T, Western Union.
4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Service: Best after-sales service to ensure satisfaction from customers.
6. Delivery: Goods will be delivered with 2-4 days by DHL, UPS, TNT, EMS, or By Air
7. Warranty: Usually, product warranty for one year.
8. Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
FAQ
1. Q: How can I get the samples?
A: Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect
2. Q: How long can I expect to get the sample?
A: Contour drawing: 2-3 days Sample time: 10-15 business days
3. Q: Will you offer free sample?
A: Yes, we usually provide 1-3 pcs free samples, you just need to pay the tooling charge.
4. Q: How long of mass production ?
A: 25-30 working days. It depends on different order quantities and part number.
4. Q: How long of mass production ?
A: 25-30 working days. It depends on different order quantities and part number.
Want to Know more details about this product
