TTL 50p TFT LCD Driver LVDS EDP 12VDC With HD MI VGA AV
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal Display |
| Certification: | Rohs,ISO9001 |
| Model Number: | RYB-20221-20A |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10k/Month |
|
Detail Information |
|||
| Panel Type: | TFT LCD | Display Size: | 7 Inch 8 Inch 9 Inch 10.1 Inch |
|---|---|---|---|
| Max Resolution: | 1920X1080 | Input Power: | 12VDC |
| Application: | Industrial Application | Input Interface: | HD MI / VGA / AV |
| Interface: | LVDS/EDP | ||
| Highlight: | TTL 50p TFT LCD Driver,LVDS EDP TFT LCD Driver,12VDC Universal Lcd Controller Board |
||
Product Description
TFT LCD Driver TTL 50pin LVDS 30pin Interface Universal Lcd Controller Board With HD MI VGA AV
Product Description
Default delivery, support -
AT070TN90, AT065TN14, AT080TN52, AT090TN12, AT090TN10, AT070TN90, AT070TN93, AT070TN94 only.
|
Video input
|
|
|
Features
|
parameter
|
|
HD MI
|
Resolution: Max 1920x1200
|
|
VGA
|
Resolution: Max 1920x1080
|
|
AV(CVBS)
|
PAL/NTSC/SECAM; 1.0vp-p ±5%
|
|
Video system
|
NTSC/PAL/SECAM
|
|
Power supply
|
|
|
Working voltage
|
11.25~13.25V
|
|
Panel voltage select
|
3.3V/5V/12V
|
|
Standby consumption
|
0.5W ; 10-40mA
|
|
Other
|
|
|
Key function
|
Power / Menu / Source / UP / Down / Left / Right
|
|
Language
|
English German French Italian Spanish Russian Arabic
|
|
Storage temerature
|
-40~85°C
|

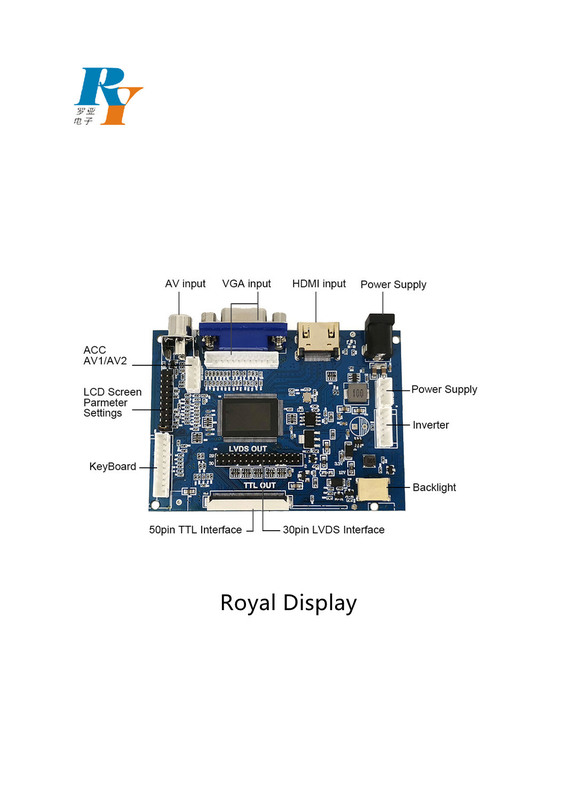

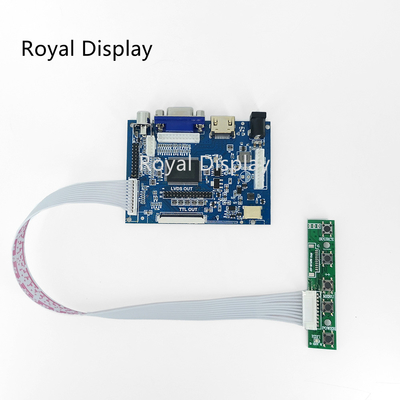

LCD Controller Board
HD MI VGA 2AV LCD Board Work for 50pin RGB TTL / 30pin LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
30Pin LVDS Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD MI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm
