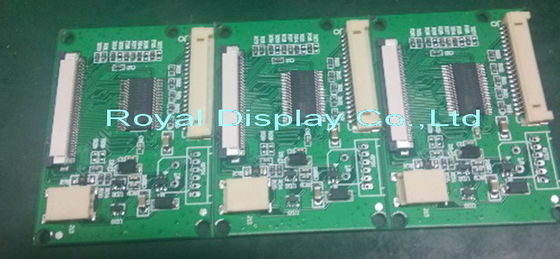

12V TFT LCD Controller Board With Built In LED Inverter PCB800182
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS REACH |
| Model Number: | PCB800182 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50pcs/ctn 530*355*255mm |
| Delivery Time: | 10-12 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100K PCS/Month |
|
Detail Information |
|||
| Part #: | Controller PCB800182 | Signal Input: | VGA-AV |
|---|---|---|---|
| Input Voltage: | 12V | ||
| Highlight: | 12V TFT LCD Controller Board,LED Inverter TFT LCD Controller Board |
||
Product Description

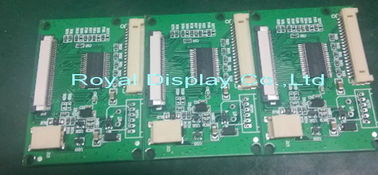

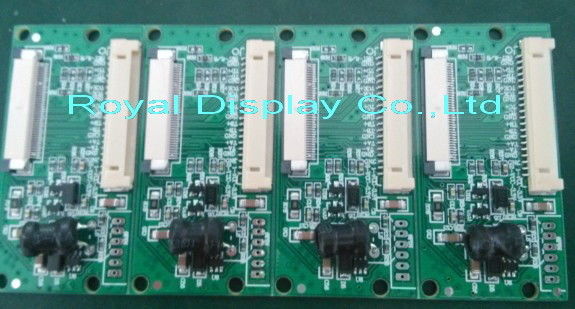

TFT Lcd Controller Board With Built - In Led Inverter PCB800182
1 , the driver board is a LVDS signal input , TTL output signal through a signal converter board , and integrated LED backlight driver , and can produce , AVDD, VGL, VGH, VCOM, such as multi- voltage LCD screen adapter plate
2 , the driver board can support ,
AT065TN14
AT070TN90
AT070TN92
AT080TN52V.1
AT080TN52
AT090TN12
AT090TN10
AT090TN13
EJ080NA05
EJ080NA05A
EJ080NA05B
So common 50PIN LCD screen , or the same function definition LCD screen (you can also consult our technical department )
3 , the driver board , LVDS input signal using a standard DF14-20P interfaces, and interface definitions using a single common market, 8 (8bit)
Universal LVDS signal line , I have a relevant supporting wire, for an additional fee ,
4 , the drive plate 8BIT default standard LVDS signal input , but can also support signal input 6BIT , see the following technical note setting
5 , if we only use the backlight power supply DC 5V, or there will be damage to the circuit board and the LCD screen as possible, we must pay attention
6 , the driver board, the capacitor element , using the Samsung brand , operating temperature up to -50 degrees to 120 degrees
7 , the driver board, resistor elements , using Taiwan's Ministry of Health, the brand, the operating temperature of up to -50 degrees to 120 degrees
8 , the driver board consolidated operating temperature of -20 degrees to 50 degrees
9 , the driver board , the main converter IC using THC original Japanese imports , THC63LVDF84B,, quality assurance
