Product Details:
Payment & Shipping Terms:
|
| Panel Type: | TFT LCD | Display Size: | Multi Size 7inch-32inch |
|---|---|---|---|
| Max Resolution: | 1920X1080 | Input Power: | 12V DC |
| Application: | For Screen Monitor | OSD Language: | Multi-language Support |
| HDMI: | 480i, 480p, 720p, 1080i, 1080p | Interface: | LVDS/EDP |
| High Light: | LVDS TFT LCD Controller Board,12VDC EDP TFT LCD Controller Board,OSD Lcd Screen Controller Board |
||

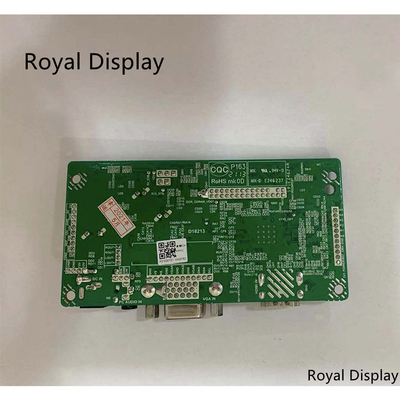

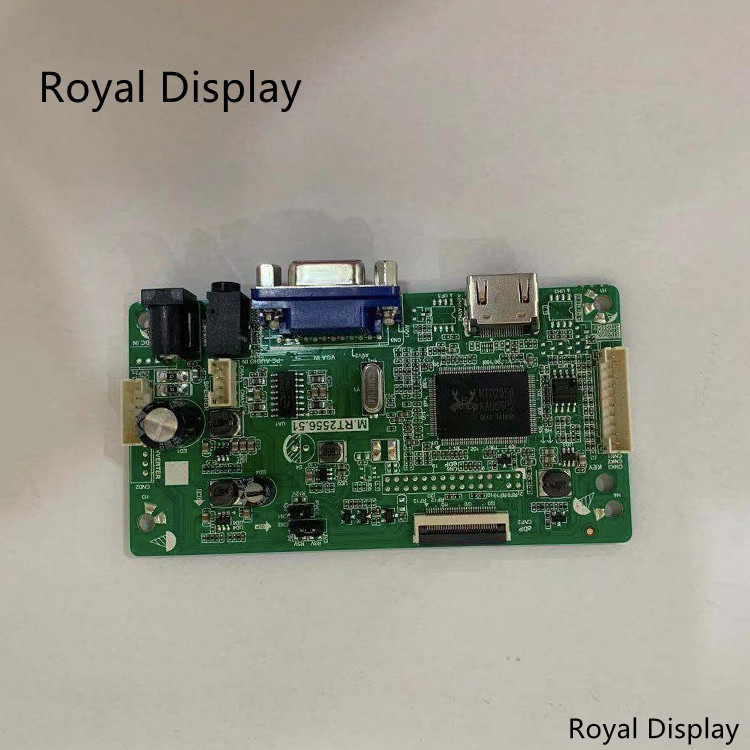

Factory design LVDS LCD Controller Board for screen Monitors 7'' to 32''
Product Description
| Item | Description | |||
|
Product
|
Industrial Grade Driver Board for Touch Screen Monitors
|
|||
|
SIZE
|
Multi-size support: 7inch to 32 inch....
|
|||
|
MAIN CHIPSET
|
RTD2513A-CG
|
|||
|
Panel Type
|
TFT LCD
|
|||
|
Interface
|
Single/Dual LVDS
|
|||
|
Max Resolution
|
1920*1080
|
|||
|
HDMI
|
480i, 480p, 720p, 1080i, 1080p
|
|||
|
Input Power
|
12VDC
|
|||
What kind of controller board does digital view use?
A LCD Controller Board otherwise known as an A/D card is the processor which allows connection of different video source inputs to be selected and shown on a screen.
Some controllers allow for remote control and monitoring to happen and many include features to allow screens to be configured as a video wall
Controller boards are compact printed circuit boards (PCBs) that handle all the logic functions and requirements of a 3D printer. It receives the g-code commands from the slicer software and converts them to commands to the various components of the printer including the motors and heating elements.
As a distributor of LCD controller boards (aka LCD control cards or LCD controllers), we can provide you with the correct controller board for your LCD. Our main offering comes from the very well known, and high quality LCD controller board manufacturer, Digital View. Digital View's LCD controllers come in a variety of resolutions, inputs, and levels of ruggedness.
