100mcd 7 Segment LED Display 3 Digit Numeric LED Display PCAP Touch
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | ROHS, ISO |
| Model Number: | RY0403-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15~25 working days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 1000K pieces/Month |
|
Detail Information |
|||
| Panel Size(mm): | 30.1(W)X16(H) | PCB Polarity: | Common Anode |
|---|---|---|---|
| Color: | Super Red | Usage: | Indoor |
| Pixel Pitch: | 2.54 | Forward Voltage: | 1.8-2V |
| Highlight: | PCAP Touch 7 Segment LED Display,100mcd 7 Segment LED Display,3 Digit Numeric LED Display |
||
Product Description

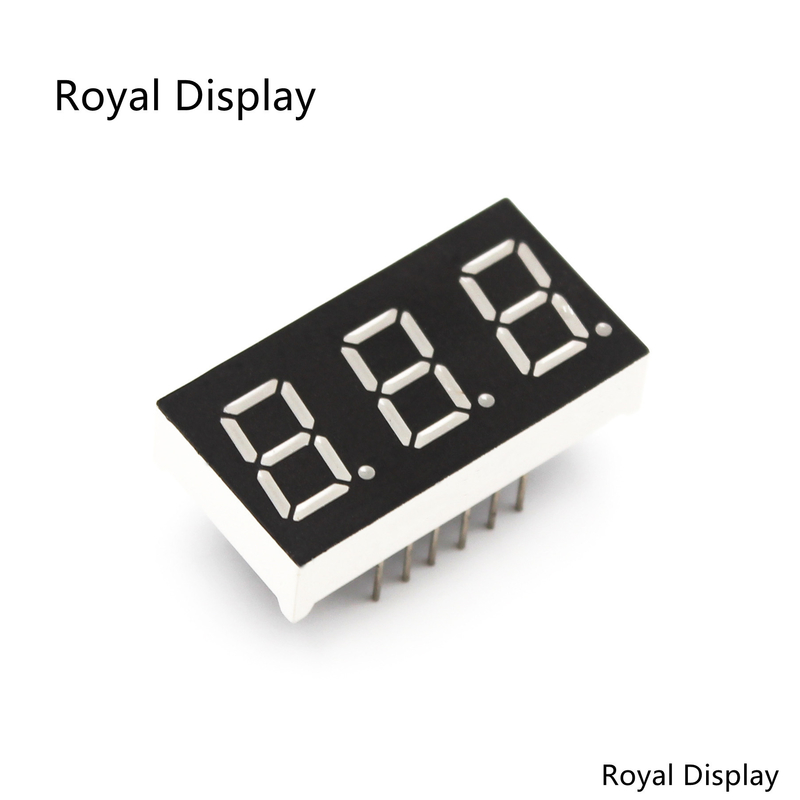

Numeric LED Display 0.4 Inch 7 Segment LED Display 3 Digit Super Red
PRODUCT DESCRIPTION
If the circuit cannot meet your need, pls advise me for other choices. Thank you.
| Dimension | 30.1*16*7mm |
| Surface Color | Black/Grey |
| Epoxy Color | White |
| Emitting Color | Super Red |
| Luminous Intensity | 100mcd/chip |
|
Emitting Color |
Test Condition |
Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
| (λp) | λ | Typ | Max | Typ | Max | ||
| Amber | IF=10-15mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
| Super green | IF=10-15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
| Super red | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
| Ultra red 1 | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 200 | 210 |
| Ultra red 2 | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 300 | 350 |
| High red | IF=10-15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
| Yellow green | IF=10-15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
| Yellow | IF=10-15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
| Blue | IF=10-15mA | 465-475 | 40 | 2.95 | 3.0 | 150 | 200 |
| Pure green | IF=10-15mA | 515-525 | 40 | 2.95 | 3.0 | 180 | 250 |
| White | IF=10-15mA | - | - | 2.8 | 2.9 | 180 | 200 |
APPLICATION
