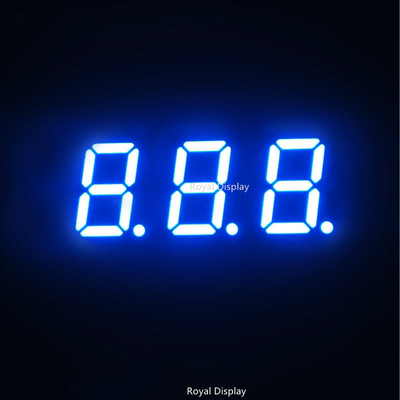

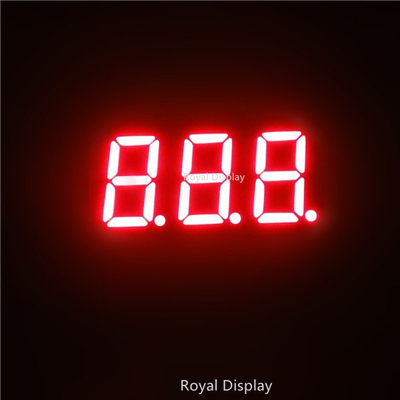

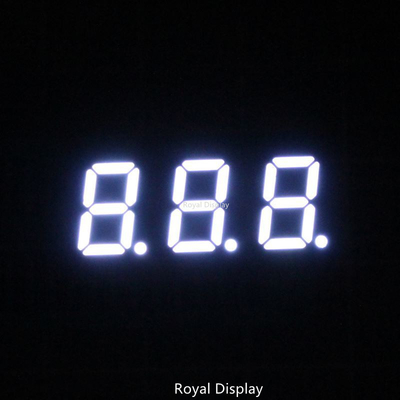

0.56 Inch LED Segment Display CC Polarity 110mcd 7 Segment LED Display

Large Image : 0.56 Inch LED Segment Display CC Polarity 110mcd 7 Segment LED Display

Product Details:

Place of Origin:	China
Brand Name:	ROYAL DISPLAY
Certification:	ROHS, ISO
Model Number:	RY0356-S

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiable
Packaging Details:	Cartons, Capboard, EPE, Blister Tray
Delivery Time:	15~25 working days
Payment Terms:	L/C, T/T, Western Union,
Supply Ability:	1000K pieces/Month

Contact Now

Detailed Product Description

Panel Size(mm):	50.3(W)19(H)8(D)	PCB Polarity:	Common Anode
Color:	Super Red	Usage:	Indoor
Surface Color:	Black /Grey	Epoxy Color:	White
Highlight:	0.56 Inch LED Segment Display , LED Segment Display CC Polarity , 110mcd 7 Segment LED Display

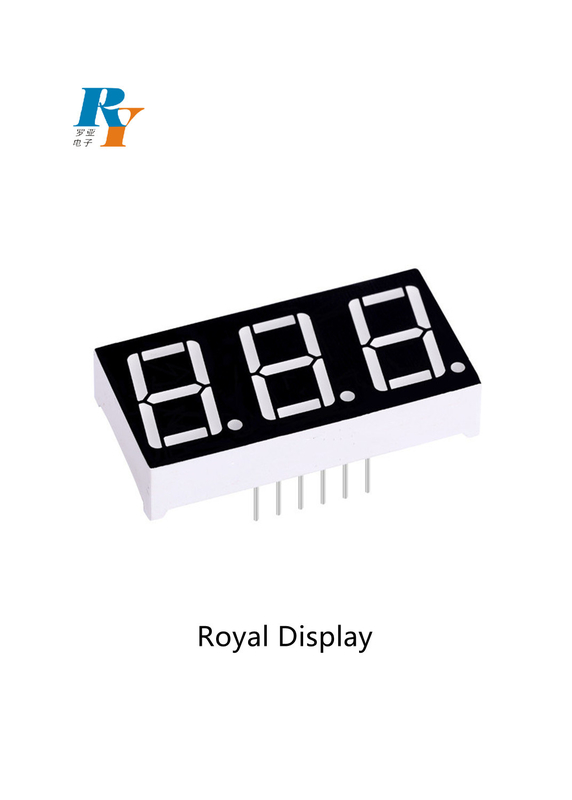

0.56inch 3 Digit 7 Segment Red Color LED Display With Optional Color

PRODUCT DESCRIPTION

If the circuit cannot meet your need, pls advise me for other choices. Thank you.

Dimension	50.3198mm
Surface Color	Black/Grey
Epoxy Color	White
Emitting Color	Super Red
Luminous Intensity	110-130mcd

0.56 Inch LED Segment Display CC Polarity 110mcd 7 Segment LED Display 0

Emitting Color	Test Condition	Wavelength(nm)		Forward Voltage(V)		Luminous Intensity (mcd)
Emitting Color	Test Condition	(λp)	λ	Typ	Max	Typ	Max
Amber	IF=10-15mA	600-605	30	1.9	2.0	90	100
Super green	IF=10-15mA	565-575	30	1.9	2.0	48	55
Super red	IF=10-15mA	620-625	20	1.8	2.0	110	130
Ultra red 1	IF=10-15mA	620-625	20	1.8	2.0	200	210
Ultra red 2	IF=10-15mA	620-625	20	1.8	2.0	300	350
High red	IF=10-15mA	638-660	20	1.8	1.9	15	20
Yellow green	IF=10-15mA	570-580	30	1.9	2.0	43	50
Yellow	IF=10-15mA	580-600	35	1.9	2.0	70	80
Blue	IF=10-15mA	465-475	40	2.95	3.0	150	200
Pure green	IF=10-15mA	515-525	40	2.95	3.0	180	250
White	IF=10-15mA	-	-	2.8	2.9	180	200

APPLICATION

0.56 Inch LED Segment Display CC Polarity 110mcd 7 Segment LED Display 1

Tag:

7 Segment LED Display,

LED Segment Display,

LED 7 Segment Display
