Product Details:
Payment & Shipping Terms:
|
| Panel Size: | 19.0*63.0mm | Pixel Pitch: | 2 |
|---|---|---|---|
| PCB Polarity: | Common Anode | Light Source: | LED Epistar |
| Luminous Intensity: | 180-200mcd | Face Color: | Black,Eed Or Gray |
| High Light: | 180mcd Seven Segment LED Display,0.56 Inch Seven Segment LED Display,Common Anode 5 Digit LED Display |
||
PRODUCT DESCRIPTION
High-intensity and reliability
Excellent segment uniformity
Industrial standard size
RoHS Directive-compliant
If the circuit cannot meet your need, pls advise me for other choices. Thank you.
|
Emitting Color |
Test Condition |
Wavelength(nm) | Forward Voltage(V) | Luminous Intensity (mcd) | |||
| (λp) | λ | Typ | Max | Typ | Max | ||
| Amber | IF=10-15mA | 600-605 | 30 | 1.9 | 2.0 | 90 | 100 |
| Super green | IF=10-15mA | 565-575 | 30 | 1.9 | 2.0 | 48 | 55 |
| Super red | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 110 | 130 |
| Ultra red 1 | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 200 | 210 |
| Ultra red 2 | IF=10-15mA | 620-625 | 20 | 1.8 | 2.0 | 300 | 350 |
| High red | IF=10-15mA | 638-660 | 20 | 1.8 | 1.9 | 15 | 20 |
| Yellow green | IF=10-15mA | 570-580 | 30 | 1.9 | 2.0 | 43 | 50 |
| Yellow | IF=10-15mA | 580-600 | 35 | 1.9 | 2.0 | 70 | 80 |
| Blue | IF=10-15mA | 465-475 | 40 | 2.95 | 3.0 | 150 | 200 |
| Pure green | IF=10-15mA | 515-525 | 40 | 2.95 | 3.0 | 180 | 250 |
| White | IF=10-15mA | - | - | 2.8 | 2.9 | 180 | 200 |
OVERVIEW
We can offer all kinds of LED 7 segment display
1. digit size size: From 0.28 inch to 5 inch

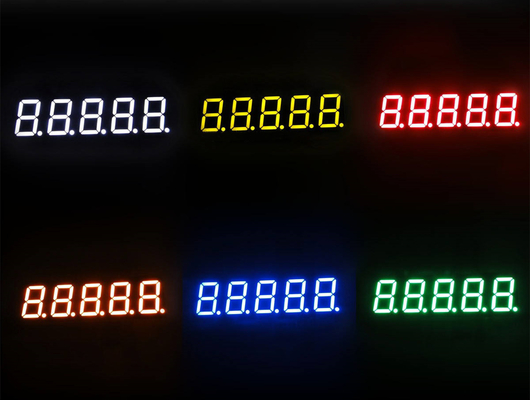

2. Could be single red, green, amber and white for your option and also could be dual-color red and green
3. Digit number from one to six
4. Common anode or cathode for your choice
5. Black or gray face
APPLICATION
Indoor LED display and LED sign, elevator/lift, advertising display, bank screen, bus, train station and airport displays, LED moving message sign, LED strip display, LED clock display and other different display areas of equipment machines.
FAQ
1. Trade terms
Price can be FOB, CIF ,EXW, or With taxes
2. What will be the delivery time and what will be the mode of payment?
Our delivery time will be 3-10days
The payment can be T/T transaction,Letter of credit,Paypal,Western Union
3. About logistics?
Usually ,we ship the products by express since the products isn’t too heavy for the transportation.
We can also arrange Air or LCL shipments if you need.
4. Could you please send me the sample first so that i could see and analyze its quality?
Yes.We can send samples first,samples will be free charged if the value is lower.
