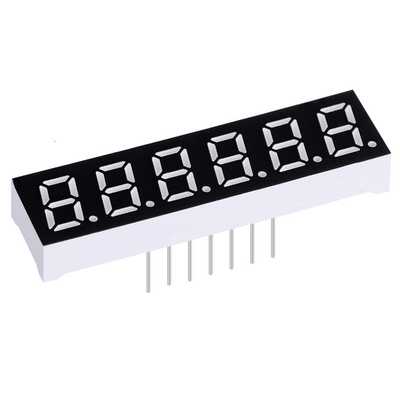

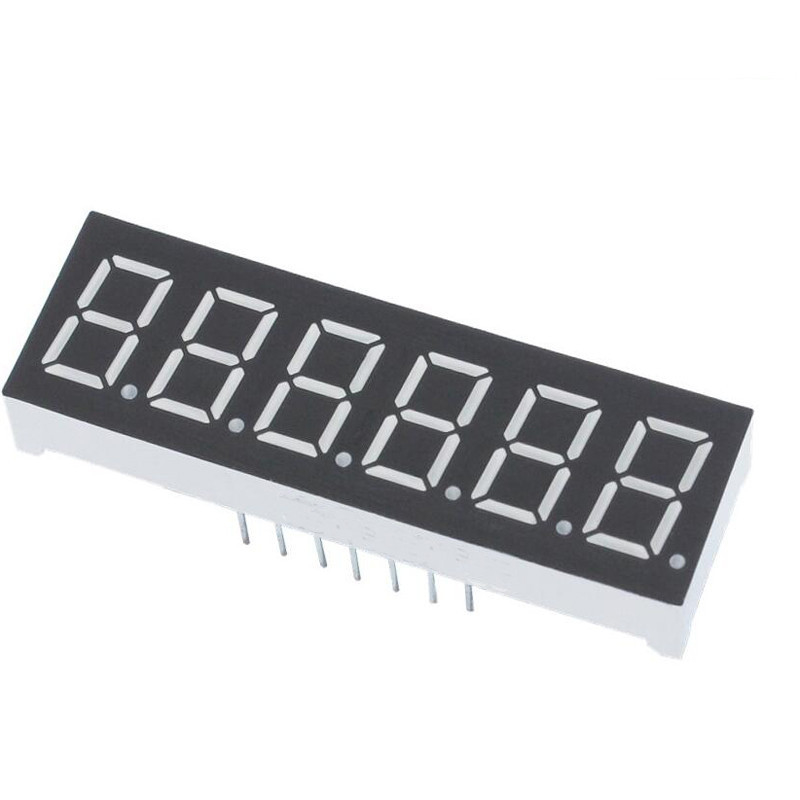

130mcd LED Segment Display Common Cathode Anode Red Emitting 0.3" ROHS

130mcd LED Segment Display Common Cathode Anode Red Emitting 0.3" ROHS
130mcd LED Segment Display Common Cathode Anode Red Emitting 0.3" ROHS 130mcd LED Segment Display Common Cathode Anode Red Emitting 0.3" ROHS

Large Image :  130mcd LED Segment Display Common Cathode Anode Red Emitting 0.3" ROHS

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RY0306-S
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15~25 working days
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 1000K pieces/Month
Detailed Product Description
Panel Size: 41.0*11.0 Mm Emitting Color: Red
Tube Chip Color: Red Pixel Pitch: 2
Polarity: Common Cathode / Anode Face Color: Black,Eed Or Gray
High Light:

130mcd LED Segment Display

,

Red Emitting LED Segment Display

,

ROHS Cathode Anode LED Display

Common Cathode Anode Red 0.3" 6 Digit Seven Customized 7 Segment LED Display



PRODUCT DESCRIPTION

If the circuit cannot meet your need, pls advise me for other choices. Thank you.









Emitting Color



Test Condition

Wavelength(nm) Forward Voltage(V) Luminous Intensity (mcd)
(λp) λ Typ Max Typ Max
Amber IF=10-15mA 600-605 30 1.9 2.0 90 100
Super green IF=10-15mA 565-575 30 1.9 2.0 48 55
Super red IF=10-15mA 620-625 20 1.8 2.0 110 130
Ultra red 1 IF=10-15mA 620-625 20 1.8 2.0 200 210
Ultra red 2 IF=10-15mA 620-625 20 1.8 2.0 300 350
High red IF=10-15mA 638-660 20 1.8 1.9 15 20
Yellow green IF=10-15mA 570-580 30 1.9 2.0 43 50
Yellow IF=10-15mA 580-600 35 1.9 2.0 70 80
Blue IF=10-15mA 465-475 40 2.95 3.0 150 200
Pure green IF=10-15mA 515-525 40 2.95 3.0 180 250
White IF=10-15mA - - 2.8 2.9 180 200





130mcd LED Segment Display Common Cathode Anode Red Emitting 0.3" ROHS 0





130mcd LED Segment Display Common Cathode Anode Red Emitting 0.3" ROHS 1130mcd LED Segment Display Common Cathode Anode Red Emitting 0.3" ROHS 2

APPLICATION



130mcd LED Segment Display Common Cathode Anode Red Emitting 0.3" ROHS 3
