SSVD Dot Matrix LCD 4x20 Dots Matrix VFD LCD Module 20S401DA1

SSVD Dot Matrix LCD 4x20 Dots Matrix VFD LCD Module 20S401DA1
SSVD Dot Matrix LCD 4x20 Dots Matrix VFD LCD Module 20S401DA1 SSVD Dot Matrix LCD 4x20 Dots Matrix VFD LCD Module 20S401DA1

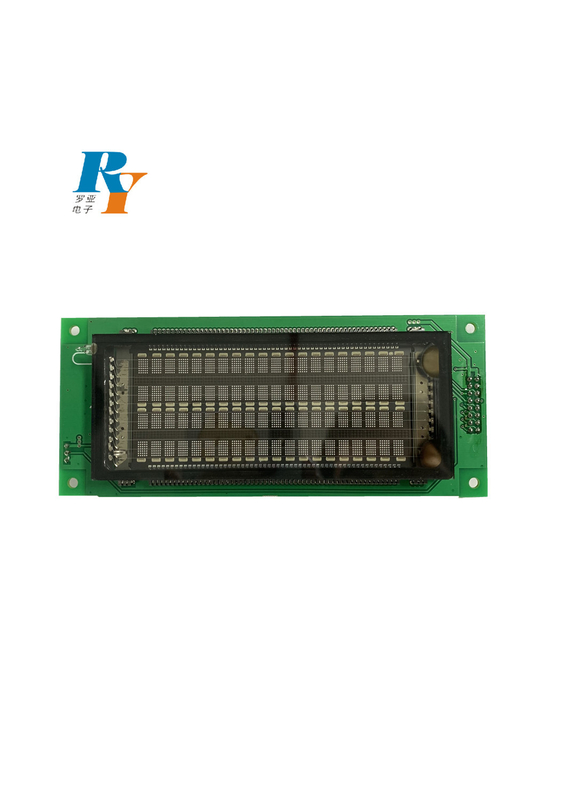

Large Image :  SSVD Dot Matrix LCD 4x20 Dots Matrix VFD LCD Module 20S401DA1

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ISO Rohs
Model Number: 20S401DA1
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 25~28 Working Days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 300k/Month
Detailed Product Description
Type Number(Module): 20S401DA1 Character Format: 5*7Dot Matrix
Number Of Digits: 80 Glass Size(mm): 118.2*48.3
Module Size(mm): 150.0(W)*64.0(H)*28.6(D) Display Area(mm): 89.52(W)*33.07(H)
Character Size(mm): 3.07*4.87 Character Pitch(mm): 4.55*9.40
High Light:

SSVD Dot Matrix LCD

,

20S401DA1 Dot Matrix LCD

,

4x20 Dots Matrix VFD LCD Module

Dot Matrix Lcd 100% Replace SSVD 4x20 Dots Matrix VFD Module 20S401DA1



Product Description

VFDs use a self-emitting fluorescent light that allows the display to handle extreme cold and hot temperatures.
They deliver high contrast characters for easy viewing in low lighting or direct sunlight environments.
available in alphanumeric, dot matrix, and 7-segment display types with character counts ranging from 1 row by 6 characters, to 4 rows by 20 characters.
They are available with 4/8-bit parallel and serial interfaces built-in controllers.

Item Description
Display Type 4x20 Dots Matrix VFD Module
Weight(g) Approx 140
Operating Temp -20º C~70ºC
Storage Temp -40º C~85º C

Vacuum Fluorescent Display: Self Luminous,High Quality and Readable Display*+5VDC Single Power Supply: Built in DC/DC Converter

Both Parallel and Serial Interface: Baud-rate: 300 ~19,200 bps,Parity Selectable(non, even, odd)* Two kinds ofCG-ROM Font: ASCII +Japanese and ASCHI + European

4 Brightness Level: 25%,50%,75% and 100%

Character Format:5*7 Dot Matrix



Our Advantages



1.Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working.

2.Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3. Payment Terms: T/T, Western Union,L/C, PayPal

4.Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5.Service: Best after-sales service to ensure satisfaction from customers.

6.Warranty: Usually, product warranty for one year.

SSVD Dot Matrix LCD 4x20 Dots Matrix VFD LCD Module 20S401DA1 0

FAQ

Q: Can you customize the product? what do you need?

A:The product can be customized, but TFTlcd module has different tooling cost, which includes FPC,Touch Screen, Backlight , Bezel and so on.



Q: Can you provide drawings and related procedures?

A: We can provide drawings and procedures for customers to confirm.



Q: Can the LCD module be Export directly?

A: We have passed SGS,RoHS and other certifications, and can export.



Q: How do you manage product quality?

A: The products are baked, aging, electrical measurement and other procedures for testing.



Q: How long is the product warranty and service?

A: The product is valid for 1 year and is a lifetime technical support service.
