| Dot Format: | 192X64 | LED Backlight: | White Y/G |
|---|---|---|---|
| Viewing Angle: | 6 O' Clock | LCD Type: | FSTN Postive |
| Operating Temp: | -20º C~70º C | Name: | Dot Matrix Lcd Display Module |
| High Light: | 192x64 Dot Matrix Lcd Display,RYP19264A Dot Matrix Lcd Display,S6B0108 Dot Matrix LCD Module |
||

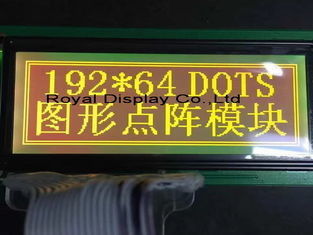

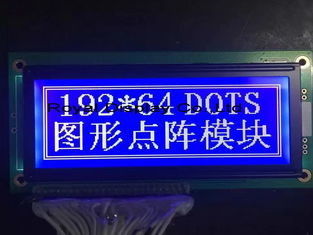

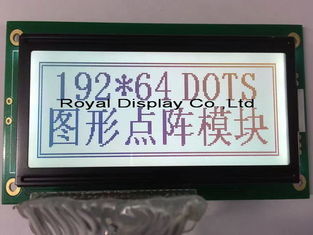

Industrial Application 19264 Graphic COB LCD Module RYP19264A
1. 192x64 dots
2. Parallel interface
3. DC/DC on board, 5V power supply
4. Ultra high contrast, YG & White LED backlight as option
5. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
PRODUCT DESCRIPTION
| Item | Description |
| Product Name | 192X64 dots Graphic LCD Module |
| Model No. | RYP19264A |
| Dot Format | 192x 64 |
| Outline Dimension(mm) | 130X65 |
| Assem. Size(mm) | 130.0 x 53.0 |
| Viewing Area(mm) | 104.0 x 39.0 |
| Pixel Size( mm) | 0.468 x 0.468 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Blue, STN-YG |
| Backlight | White or Y/G LED backlight |
| Driver IC | S6B0108 |
| Power supply | 3V or 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
We have an enjoyable experience on our best quality product and satisfied service,
LCD professional manufacturer ROYAL DISPLAY with over 10 years experience in LCD field
we do believe we can become your reliable supplier!
OUR SERVICE ADVANTAGES
1. Small order would be accepted.
2. Mass production lead time would be guaranteed.
3. Each order will have 0.2%-0.5% spare.
4. Even customers do not have a cooperation with us, we also can provide technical services.
5. If mass production has any quality problem, customer can return it.
PRODUCTION LINE
ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
FAQ:
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.
Q:What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.
Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q:How long is the warranty and service of the product?
A:Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
