ST7565R SGS FSTN Positive Transmissive LCD Module 128×64 DOT Matrix Cog FPC Line
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Royal Display |
| Certification: | SGS ROHS |
| Model Number: | RYG12864M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| DOT Format: | 128X64 | Outline (mm): | 41*35 |
|---|---|---|---|
| Backlight Color: | White Or Amber LED Backlight | Power Supply: | 3V |
| IC Package: | COG | Viewing Direction: | 12:00 |
| Appearance: | Black On White | Connector: | FPC |
| Display Type: | FSTN | Interface: | Parallel |
| Operating Temp.: | -20º C~70ºC | Storage Temp.: | -30º C~80ºC |
| Highlight: | SGS FSTN Positive Transmissive LCD Module,ST7565R Positive Transmissive LCD Module,Matrix Cog FPC COG LCD Display |
||
Product Description

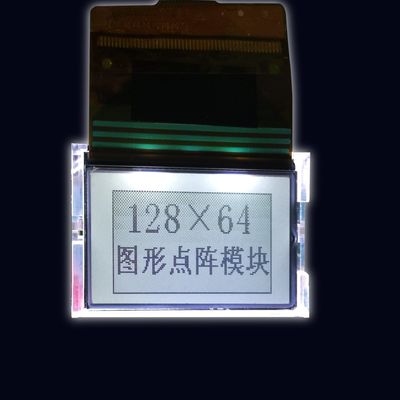

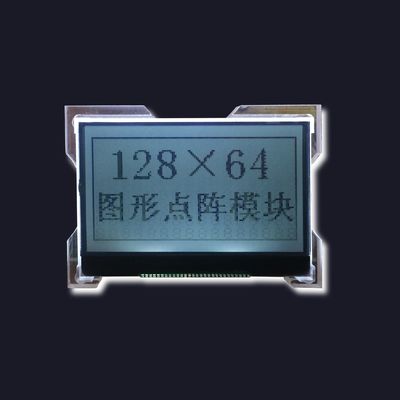

Transmissive Monochrome LCD Display 12864 Dot Matrix FPC Line
PRODUCT DESCRIPTION
1. 128x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
PRODUCT DESCRIPTION
| Item | Description |
| Product Name | 128x64dots Graphic LCD Module |
| Model No. | RYG12864M |
| Dot Format | 128x64 |
| Outline (mm) | 41*35 |
| Viewing Area(mm) | 12:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 12 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7565R |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
PROCESS LINES
ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
Want to Know more details about this product
